cigen-ECP-11
ECP-11 power supplies - psu Series
Plug-in power supplies with ErP compliance for various voltages and currents
The ECP-11 series from RS Components Ltd offers a range of plug-in power supplies designed for various voltage and current requirements, all while meeting ErP (Energy-related Products) compliance standards. These power supplies are ideal for a wide array of projects and systems, particularly those that need flexible and efficient power management. If you're working on anything from small-scale electronics projects to larger industrial control systems, these units can be a great fit.
One thing worth noting is their compact design; they're easily adaptable into tight spaces without sacrificing performance. Engineers tend to reach for this series when they need a reliable power solution that doesn't compromise on efficiency or compliance. Another practical benefit is their modular nature, allowing for easy integration and scalability in system designs. The ability to switch between different voltages and currents without needing to change the unit itself can save time and resources in development and testing phases.
Overall, the ECP-11 series provides a versatile and compliant power supply solution that can handle a variety of applications, making them a solid choice for engineers looking to streamline their power needs.

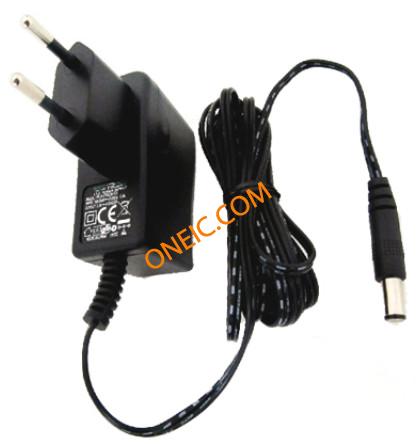

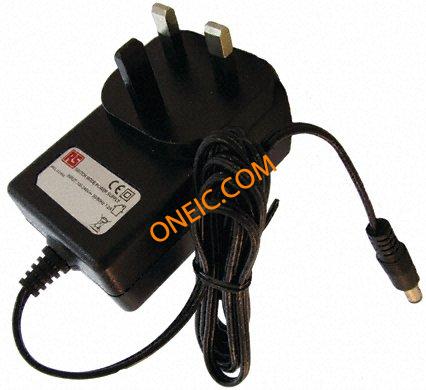

Series Images (2)
Frequently Asked Questions
ECP-11 power supplies - psu - Part List
14 parts in total| Mfr Part # | Quantity Available | Price | Category | Noise | Efficiency | Power - Rated | Voltage Rating | Line Regulation | Load Regulation | Current - Output | Number of Outputs | Depth | Width | Length | Weight | Cable Length | Output Connector | Type | Plug Type | Operate Time | Operating Temperature | Maximum Temperature Limit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 436 | 1: ¥134.5924 | - | ±10% | 86% | 11W | 90 → 264V ac | ±1% | ±5% | 0.46A | 1 | 34.8mm | 49.5mm | 64mm | 114g | 1.2m | 2.1 x 5.5 x 9.5 mm Centre Positive | Switch Mode | Type G - British 3-Pin | 100000h | 0°C | +40°C | |
| 332 | 1: ¥176.6912 | - | ±10% | 86% | 11W | 90 → 264V ac | ±1% | ±5% | 1.47A | 1 | 47.3mm | 45mm | 64mm | 50g | 1.2m | 2.1 x 5.5 x 9.5 mm Centre Positive | Switch Mode | 2-Pin Type C - EuroPlug | 100000h | 0°C | +40°C | |
| 332 | 1: ¥176.6912 | - | ±10% | 86% | 11W | 90 → 264V ac | ±1% | ±5% | 0.61A | 1 | 47.3mm | 45mm | 64mm | 50g | 1.2m | 2.1 x 5.5 x 9.5 mm Centre Positive | Switch Mode | 2-Pin Type C - EuroPlug | 100000h | 0°C | +40°C | |
| 415 | 1: ¥141.2972 | - | ±10% | 86% | 11W | 90 → 264V ac | ±1% | ±5% | 2.2A | 1 | 47.3mm | 45mm | 64mm | 50g | 1.2m | 2.1 x 5.5 x 9.5 mm Centre Positive | Switch Mode | 2-Pin Type C - EuroPlug | 100000h | 0°C | +40°C | |
| 415 | 1: ¥141.2972 | - | ±10% | 86% | 11W | 90 → 264V ac | ±1% | ±5% | 1.22A | 1 | 47.3mm | 45mm | 64mm | 50g | 1.2m | 2.1 x 5.5 x 9.5 mm Centre Positive | Switch Mode | 2-Pin Type C - EuroPlug | 100000h | 0°C | +40°C | |
| 415 | 1: ¥141.2972 | - | ±10% | 86% | 11W | 90 → 264V ac | ±1% | ±5% | 0.46A | 1 | 47.3mm | 45mm | 64mm | 114g | 1.2m | 2.1 x 5.5 x 9.5 mm Centre Positive | Switch Mode | 2-Pin Type C - EuroPlug | 100000h | 0°C | +40°C | |
| 436 | 1: ¥134.5924 | - | ±10% | 86% | 11W | 90 → 264V ac | ±1% | ±5% | 1.22A | 1 | 34.8mm | 49.5mm | 64mm | 50g | 1.2m | 2.1 x 5.5 x 9.5 mm Centre Positive | Switch Mode | Type G - British 3-Pin | 100000h | 0°C | +40°C | |
| 436 | 1: ¥134.5924 | - | ±10% | 86% | 11W | 90 → 264V ac | ±1% | ±5% | 0.61A | 1 | 34.8mm | 49.5mm | 64mm | 50g | 1.2m | 2.1 x 5.5 x 9.5 mm Centre Positive | Switch Mode | Type G - British 3-Pin | 100000h | 0°C | +40°C | |
| 415 | 1: ¥141.2972 | - | ±10% | 86% | 11W | 90 → 264V ac | ±1% | ±5% | 0.92A | 1 | 47.3mm | 45mm | 64mm | 194g | 1.2m | 2.1 x 5.5 x 9.5 mm Centre Positive | Switch Mode | 2-Pin Type C - EuroPlug | 100000h | 0°C | +40°C | |
| 436 | 1: ¥134.5924 | - | ±10% | 86% | 11W | 90 → 264V ac | ±1% | ±5% | 0.73A | 1 | 34.8mm | 49.5mm | 64mm | 50g | 1.2m | 2.1 x 5.5 x 9.5 mm Centre Positive | Switch Mode | Type G - British 3-Pin | 100000h | 0°C | +40°C | |
| 436 | 1: ¥134.5924 | - | ±10% | 86% | 11W | 90 → 264V ac | ±1% | ±5% | 2.2A | 1 | 34.8mm | 49.5mm | 64mm | 50g | 1.2m | 2.1 x 5.5 x 9.5 mm Centre Positive | Switch Mode | Type G - British 3-Pin | 100000h | 0°C | +40°C | |
| 415 | 1: ¥141.2972 | - | ±10% | 86% | 11W | 90 → 264V ac | ±1% | ±5% | 0.73A | 1 | 47.3mm | 45mm | 64mm | 50g | 1.2m | 2.1 x 5.5 x 9.5 mm Centre Positive | Switch Mode | 2-Pin Type C - EuroPlug | 100000h | 0°C | +40°C | |
| 436 | 1: ¥134.5924 | - | ±10% | 86% | 11W | 90 → 264V ac | ±1% | ±5% | 0.92A | 1 | 34.8mm | 49.5mm | 64mm | 114g | 1.2m | 2.1 x 5.5 x 9.5 mm Centre Positive | Switch Mode | Type G - British 3-Pin | 100000h | 0°C | +40°C | |
| 436 | 1: ¥134.5924 | - | ±10% | 86% | 11W | 90 → 264V ac | ±1% | ±5% | 1.47A | 1 | 34.8mm | 49.5mm | 64mm | 50g | 1.2m | 2.1 x 5.5 x 9.5 mm Centre Positive | Switch Mode | Type G - British 3-Pin | 100000h | 0°C | +40°C |
