EK-23132 Series

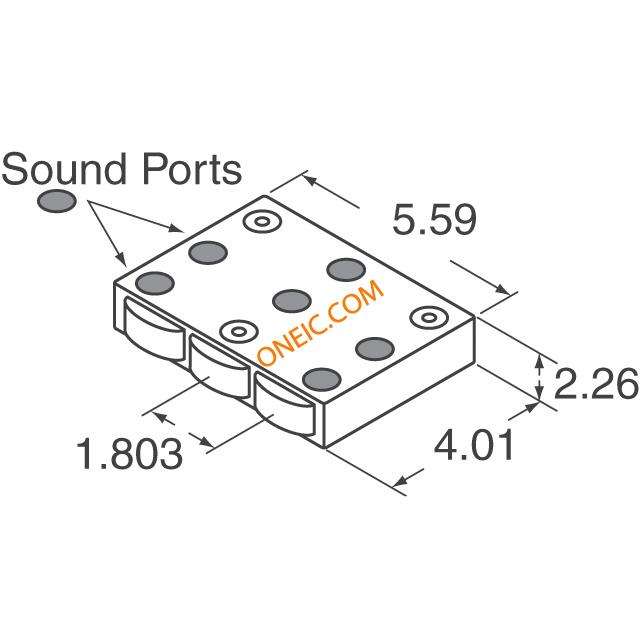

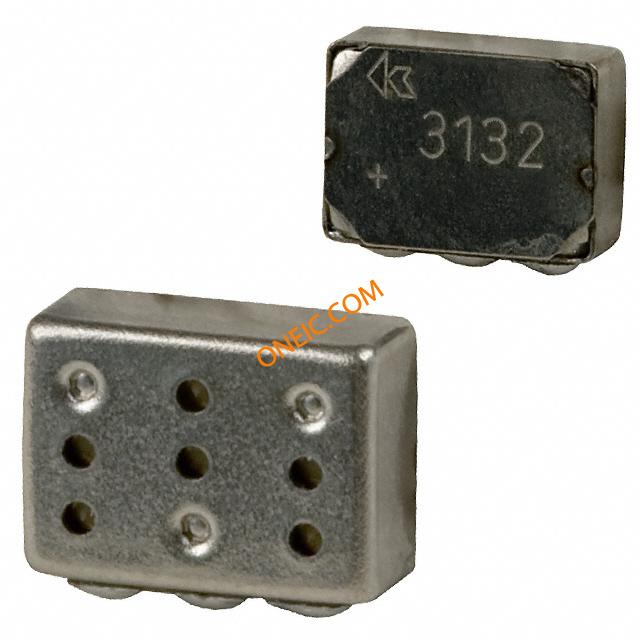

Compact omnidirectional electret microphones with broadband frequency response

The EK-23132 series from Knowles Corporation is a lineup of compact omnidirectional electret microphones known for their broad frequency response. These microphones are designed to capture sound evenly from all directions, making them ideal for applications where spatial awareness of sound sources is crucial.

If you're working on audio systems for surveillance or security, these microphones are a go-to choice due to their ability to pick up sounds from all around without directional bias. They also find their way into consumer electronics like smart speakers and home automation devices, where clear, ambient sound pickup is essential.

One thing worth noting is their robust performance across a wide range of frequencies. This makes them particularly useful in environments with varying sound conditions, such as outdoor settings or noisy industrial areas. Engineers tend to reach for this when they need a microphone that can handle a broad spectrum of sounds without requiring frequent calibration or adjustment.

Another practical benefit is their small form factor, which allows for discreet placement in devices where space is limited. This is especially valuable in wearable tech or portable audio equipment where aesthetics and size are critical factors. Overall, the EK-23132 series offers a reliable solution for omnidirectional sound capture in a variety of applications.

Series Images (4)

Documents & Media

PDF Document
PDF Document
PDF Document
PDF Document
PDF Document

Frequently Asked Questions

Content generated by AI, for reference only
Loading...
03

EK-23132 - Part List

6 parts in total

Standard Package

Impedance

Voltage Rating

Height (Max)

Port Location

Mfr Part #Quantity AvailablePriceCategoryProduct CategoryRoHSSensitivityDepthWidthLengthPackagingSeriesOther SpecificationsStandard PackageImpedanceOutput TypeVoltage RatingFrequency RangeCurrent - OutputShapeTerminationHeight (Max)Port LocationSize / DimensionTypeDirectionSeal RatingVoltage - Supply (Min)Termination Style
EK-23132-C36
EK-23132-C36

Microphones -53 Sens, KA Port Broadband Rsp.10000 MICROPHONE

Knowles Acoustics

1554: ¥80.444-MicrophonesRoHS Compliant- 53 dB2.21 mm3.98 mm5.56 mmBulkEK/EYOmnidirectional14.4 kOhmsAnalog1.3V100Hz ~ 10kHz50µARectangularSolder Pads2.21mmTop5.56mm L x 3.99mm WElectret CondenserOmnidirectionalNone0.9 V to 10 VWire Leads
EK-23132-P07
EK-23132-P07

Microphones 5.56 X 3.98 X 2.21MM -53 SENS, KA PORT MICROPHONE

Knowles Acoustics

1018: ¥223.788-MicrophonesRoHS Compliant- 53 dB2.21 mm3.98 mm5.56 mmBulkEK/EYOmnidirectional1004.4 kOhmAnalog1.3V100Hz ~ 10kHz50µARectangularSolder Pads2.21mmTop5.56mm L x 3.99mm WElectret CondenserOmnidirectionalNone--
EK-23132-000
4
EK-23132-000

Microphones MIC COND ANALOG OMNI -53DB

Knowles Acoustics

581: ¥103.224-MicrophonesRoHS Compliant- 53 dB2.21 mm3.98 mm5.56 mmBulkEK/EYOmnidirectional14.4 kOhmAnalog1.3 ~ 10V100Hz ~ 10kHz50µARectangularSolder Pads2.26mmSide5.56mm L x 3.99mm WElectret CondenserOmnidirectionalNone--
EK-23132-M01
EK-23132-M01

Microphones 5.56 X 3.98 X 2.21MM -53 SENS, KA PORT

Knowles Acoustics

1039: ¥90.032-MicrophonesRoHS Compliant- 53 dB2.21 mm3.98 mm5.56 mmBulkEK/EYOmnidirectional----------------
EK-23132-0000
EK-23132-0000

KNOWLES ACOUSTICS

101: ¥122.1824--------------------------
EK-23132
EK-23132

MIC ELECTRET OMNI FREQ RESPONSE

Knowles Acoustics

0--------------------------
