cigen-EX-AZ
EX-AZ safety-rated interlock switche Series
ATEX-certified safety interlock switches with fiberglass housing
The EX-AZ series from K.A. Schmersal is a line of ATEX-certified safety-rated interlock switches designed for use in potentially explosive atmospheres. These switches are ideal for applications in industries such as petrochemicals, mining, and grain handling, where there's a risk of flammable gases or dust. If you're working on projects involving machinery that needs to be shut down safely in hazardous environments, these interlocks are a reliable choice.
One thing worth noting is their robust design with a fiberglass housing, which provides excellent protection against moisture and mechanical damage. This makes them suitable for harsh industrial conditions. Engineers tend to reach for this when they need a fail-safe mechanism that can quickly disconnect power in the event of an emergency, ensuring worker safety without compromising on durability. The ATEX certification ensures compliance with European Union directives for equipment and protective systems intended for use in potentially explosive atmospheres, providing peace of mind in regulatory compliance.

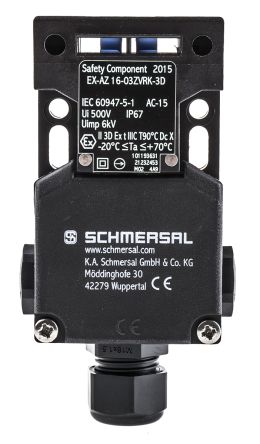

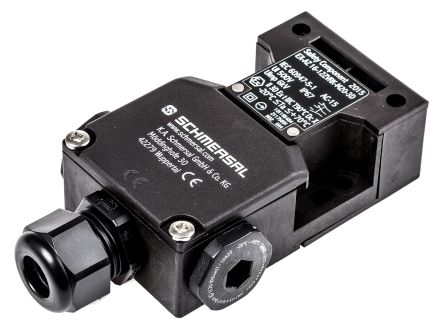

Series Images (3)
Frequently Asked Questions
EX-AZ safety-rated interlock switche - Part List
6 parts in total| Mfr Part # | Quantity Available | Price | Category | Maximum AC Volts | Current Rating (Max) | Depth | Width | Length | Housing Material | Connection Type | Normal State Configuration | Number of Positions/Contacts | Operating Temperature | Safety Outputs and Type | Voltage Rating | Locking Feature | Built in Switch | Seal Rating | Safety Category | Voltage - DC Spark Over (Nom) | Lock Type | Size / Dimension | Series | Other Specifications | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 122 | 1: ¥478.6996 | - | 230V | 2.5 A | 30mm | 52mm | 90mm | Glass Fibre Reinforced Thermoplastic | Screw | 3NC | 1 | +70°C | 2 | 24V | Key | No | IP67 | - | - | - | - | - | - | - | |
| 122 | 1: ¥478.6996 | - | 230V | 2.5 A | 30mm | 52mm | 90mm | Glass Fibre Reinforced Thermoplastic | Screw | 1NO + 2NC | 1 | +70°C | 2 | 24V | Key | No | IP67 | - | - | - | - | - | - | - | |
| 0 | - | 230V | 2.5 A | 30mm | 52mm | 90mm | 玻璃纤维增强热塑性 | 螺钉 | 3 常闭 | 1 | +70°C | - | - | - | - | - | ATEX | 24V | 钥匙键 | 90 x 52 x 30 mm | EX-AZ16 | 2 | IP67 | ||
| 0 | - | 230V | 2.5 A | 30mm | 52mm | 90mm | 玻璃纤维增强热塑性 | 螺钉 | 常开/2 常闭 | 1 | +70°C | - | - | - | - | - | ATEX | 24V | 钥匙键 | 90 x 52 x 30 mm | EX-AZ16 | 2 | IP67 | ||
EX-AZM 161SK-12/12RK-024-3D Schmersal | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
EX-AZM 161SK-12/12RKA-024-3D Schmersal | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
