cigen-FMAC-0934

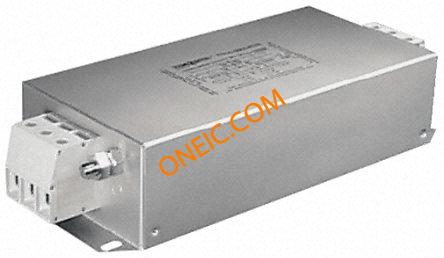

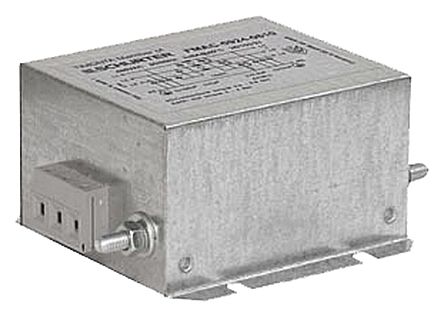

FMAC-0934 power line filter Series
schurterThree-phase AC power line filters for 36A to 64A applications
The FMAC-0934 power line filter from Schurter is designed to clean up three-phase AC power lines, particularly suited for applications requiring currents between 36A and 64A. If you're working on industrial machinery, motor control centers, or any system that deals with high-power three-phase loads, these filters can be a valuable addition. They help mitigate issues like voltage drops, harmonics, and noise, which are common in high-current environments. One thing worth noting is how effective they are at maintaining consistent power quality, which can significantly improve the reliability and lifespan of connected equipment. Engineers tend to reach for this when they need to ensure stable power supply to critical systems that are sensitive to power fluctuations. Another practical benefit is their ability to reduce electromagnetic interference, which can be a real headache in densely packed electrical installations. Overall, the FMAC-0934 is a solid choice for anyone looking to optimize power distribution in demanding industrial settings.
Series Images (6)
Documents & Media
Frequently Asked Questions
FMAC-0934 power line filter - Part List
7 parts in total| Mfr Part # | Quantity Available | Price | Category | Standard Package | Frequency | Current Rating (Max) | Voltage - Input (Min) | Termination | Mounting Type | RF Family/Standard | Operating Temperature | MOQ | Lead Time | Unit Pack | Subcategory | Factory Pack Quantity | RoHS | Approval Agency | Current | Filter Type | Frequency - Operating | Voltage - Rated AC (Phase to Phase) | Voltage - Rated AC (Phase to Ground/Neutral) | Weight | Termination Style | Series | Applications | Configuration | Voltage - Rated | Depth | Height | Length | Terminal Style | Size / Dimension | Function | Protection Features | Inductance | Voltage - Test | Voltage Rating | Current - Leakage | Number of Conductors | Phase Noise Typ (dBc/Hz) | Voltage - Protection Level (VP) (2416) | Size | Wire Gauge or Range - mm2 | Temperature - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 FMAC-0934-5010L Power Line Filter 50Hz/60Hz 50A 480VAC Terminal Block Chassis Mount FMAC FILTER 3PH 1ST L 50A 480VAC FMAC INPUT FILTER 3-PHASE 50A AC Power Line Filters FMAC Input filter 3-phase 50A FMACFILTER3PH1STL50A480VAC schurter | 10 | 1: ¥1,307.3891 | - | Bulk | 50|60 Hz | 50 A | 480 Vac | Terminal Block | Chassis Mount | FMAC | -25 °C | 1 | 63 Days | 1 | Power Line Filter | 1 | Lead free / RoHS Compliant | cULus, ENEC, VDE | 50A | Three Phase (Delta) | 50 ~ 60Hz | 520V | 480V | 8.378 lbs | Terminal Block | FMAC | General Purpose | Single Stage | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 FMAC-0934-3610 Power Line Filter 50Hz/60Hz 36A 480VAC Terminal Block Chassis Mount FMAC FILTER 3PH 1ST 36A 480VAC FMAC INPUT FILTER 3-PHASE 36A FILTER FMAC0943610 AC Power Line Filters FMAC Input filter 3-phase 36A FMACFILTER3PH1ST36A480VAC Schurter FMAC 系列 36A 480 V 交流, 60Hz 底盘安装 RFI 滤波器 , 带螺丝接端 schurter | 28 | 1: ¥1,316.004 | - | Bulk | 50|60 Hz | 36 A | 480 Vac | Terminal Block | Chassis Mount | FMAC | -25 °C | 1 | 63 Days | 1 | Power Line Filter | 1 | Lead free / RoHS Compliant | cULus, ENEC, VDE | 36A | Three Phase (Delta) | 50 ~ 60Hz | 520V | 480V | 7.619 lbs | Terminal Block | FMAC | General Purpose | Single Stage | 480 V 交流 | 250mm | 66mm | 151mm | 螺丝 | 151 x 250 x 66mm | Y | - | - | - | - | - | - | - | - | - | - | - |
 FMAC-0934-5012I Power Line Filter 50Hz/60Hz 50A 520VAC Terminal Block Chassis Mount FMAC FILTER 3PH 1ST 50A 520VAC FMAC INPUT FILTER 3-PHASE 50A AC Power Line Filters FMAC Input filter 3-phase 50A FMACFILTER3PH1ST50A520VAC schurter | 10 | 1: ¥1,805.6006 | - | Bulk | 50|60 Hz | 50 A | 520 Vac | Terminal Block | Chassis Mount | FMAC | -25 °C | 1 | 63 Days | 1 | Power Line Filter | 1 | Lead free / RoHS Compliant | cULus, ENEC, VDE | 50A | Three Phase (Delta) | 50 ~ 60Hz | 520V | 480V | 7.848 lbs | Terminal Block | FMAC | General Purpose | Single Stage | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
FMAC-0934-6410L Power Line Filter 50Hz/60Hz 64A 480VAC Terminal Block Chassis Mount FMAC FILTER 3PH 1ST L 64A 480VAC FMAC INPUT FILTER 3-PHASE 64A AC Power Line Filters FMAC Input filter 3-phase 64A FMACFILTER3PH1STL64A480VAC schurter | 10 | 1: ¥1,321.9078 | - | Bulk | 50|60 Hz | 64 A | 480 Vac | Terminal Block | Chassis Mount | FMAC | -25 °C | 1 | 63 Days | 1 | Power Line Filter | 1 | Lead free / RoHS Compliant | cULus, ENEC, VDE | 64A | Three Phase (Delta) | 50 ~ 60Hz | 520V | 480V | 9.259 lbs | Terminal Block | FMAC | General Purpose | Single Stage | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 0 | - | Bulk | 50|60 Hz | 36 A | 520 Vac | Terminal Block | Flange Mount | FMAC | -25 °C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
FMAC-0934-3612I Power Line Filter 50Hz/60Hz 36A 520VAC Terminal Block Chassis Mount FMAC FILTER 3PH 1ST 36A 520VAC FMAC INPUT FILTER 3-PHASE 36A AC Power Line Filters FMAC Input filter 3-phase 36A FMACFILTER3PH1ST36A520VAC schurter | 10 | 1: ¥1,761.3129 | - | Bulk | 50|60 Hz | 36 A | 520 Vac | Terminal Block | Chassis Mount | FMAC | -25 °C | 1 | 63 Days | 1 | Power Line Filter | 1 | Lead free / RoHS Compliant | cULus, ENEC, VDE | 36A | Three Phase (Delta) | 50 ~ 60Hz | 520V | 480V | 7.826 lbs | Terminal Block | FMAC | General Purpose | Single Stage | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
FMAC-0934-5010 Power Line Filter 50Hz/60Hz 50A 480VAC Terminal Block Chassis Mount FMAC FILTER 3PH 1ST 50A 480VAC FMAC INPUT FILTER 3-PHASE 50A AC Power Line Filters FMAC Input filter 3-phase 50A FMACFILTER3PH1ST50A480VAC Mains filter 3-phase 50 A 480 VAC, FMAC-0934-5010, Schurter schurter | 10 | 1: ¥1,545.6033 | - | Bulk | 50|60 Hz | 50 A | 480 Vac | Terminal Block | Chassis Mount | FMAC | -25 °C | 1 | 63 Days | 1 | Power Line Filter | 1 | Lead free / RoHS Compliant | cULus, ENEC, VDE | 50A | Three Phase (Delta) | 50 ~ 60Hz | 520V | 480V | 7.535 lbs | Terminal Block | FMAC | General Purpose | Single Stage | - | - | - | - | - | - | - | I | 1 mH | 3000 | 480 | <160 | 3 | 3-phase | IP 20 | 251 x 121 x 66 mm | 10 mm² | 25/100/21 |
