GB10SLT12 semiconductor Series
High-voltage silicon carbide Schottky diodes for power rectification
The GB10SLT12 series from GeneSiC Semiconductor is a lineup of high-voltage silicon carbide (SiC) Schottky diodes designed for efficient power rectification. These diodes are ideal for applications requiring high switching frequencies and low conduction losses, such as in inverters, DC/DC converters, and renewable energy systems. If you're working on high-power factor correction circuits or fast-charging systems, these diodes can significantly enhance performance due to their low forward voltage drop and superior thermal stability compared to traditional silicon diodes. One thing worth noting is that engineers tend to reach for this when they need to optimize efficiency and reduce heat dissipation in their designs. The high breakdown voltage and fast switching capabilities make them particularly attractive for automotive charging stations and industrial power supplies.
Series Images (10)
Documents & Media
Frequently Asked Questions
GB10SLT12 semiconductor - Part List
5 parts in total| Mfr Part # | Quantity Available | Price | Category | Product | RoHS | Packaging | Factory Pack Quantity | Voltage - Supply | Package / Case | Series | Diode Type | Operating Temperature | Standard Package | Tariff No | Speed | Current - Test | Capacitance @ Vr, F | Diode Configuration | Voltage - Input (Min) | Voltage Regulation - Load | Reverse Recovery Time (trr) | Current - Peak Pulse (8/20us) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Reverse Standoff (Typ) | Current - LED Trigger (Ift) (Max) | Weight | Mounting Type | Mounting Style | Number of Pins | Material Finish | Supplier Device Package | Thermal Resistance | Operating Temperature - Junction | Technology | Manufacturer | Power Dissipation (Max) | Current - Continuous Drain (Id) @ 25degC | Power - Average Forward | Current - DC Forward (If) (Max) | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

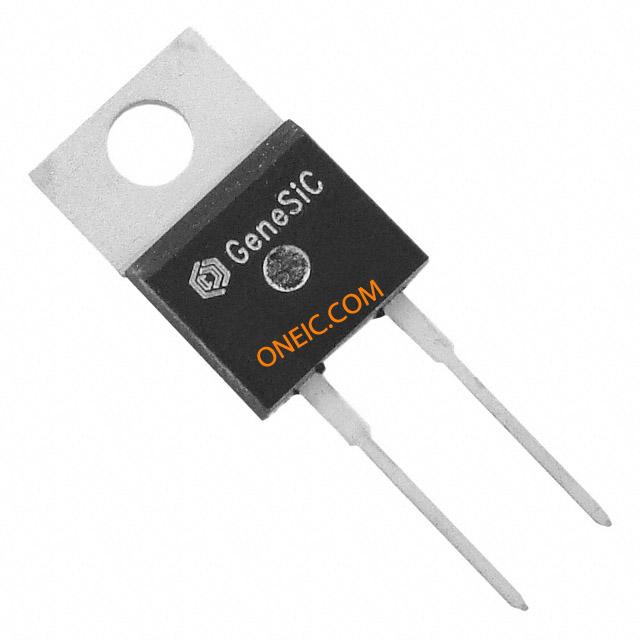

GB10SLT12-220 Schottky Diodes & Rectifiers 1200V 10A SiC Schottky Rectifier DIODE SCHOTTKY 1200V 10A TO220AC DIODE, SIC, RECTIF, 1200V, 10A, TO-220 GeneSiC Semiconductor | 17 | 1: ¥97.24 | - | Schottky Silicon Carbide Diodes | RoHS Compliant | Tube | 50 | 1.9 V | TO-220-2 | GB10SLT12 | Silicon Carbide Schottky | - 55 C to + 175 C | 50 | 85411000 | No Recovery Time > 500mA (Io) | 40µA @ 1200V | 520pF @ 1V, 1MHz | :Single | 2V @ 10A | 1200 V | 0ns | 65 A | 52 uA | 1200V (1.2kV) | 10A | :1.2kV | :10A | 0.002 | Through Hole | Through Hole | :2 | :- | TO-220AC | 0.8°C/W Jc | -55°C ~ 175°C | - | - | 42 W | 10 A | - | - | - |
GB10SLT12-247 Schottky Diodes & Rectifiers 1200V 10A SiC Schottky Rectifier DIODE, SIC, RECTIF, 1200V, 10A, TO-247 GeneSiC Semiconductor | 10 | 1: ¥66.368 | - | Schottky Silicon Carbide Diodes | RoHS Compliant | Bulk | - | :1.8V | - | GB10SLT12 | :Schottky | :-55°C | - | 85411000 | - | - | - | :Single | - | - | - | - | - | - | - | :1.2kV | :10A | 0.00542 | - | - | :2 | :- | - | - | - | - | - | - | - | - | - | - |

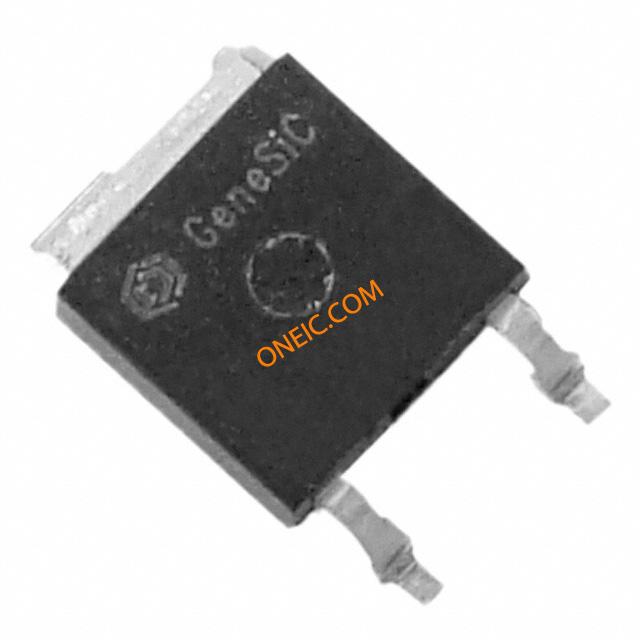

GB10SLT12-252 DIODE SCHOTTKY 1.2KV 10A TO252 Schottky Diodes & Rectifiers 1200V - 10A SiC Schottky Rect. GeneSiC Semiconductor | 693 | 1: ¥97.24 | - | Schottky Silicon Carbide Diodes | RoHS Compliant | Tube | 75 | - | TO-252-3, DPak (2 Leads + Tab), SC-63 | GB10SLT12 | Silicon Carbide Schottky | - | 75 | - | No Recovery Time > 500mA (Io) | 40µA @ 1200V | 520pF @ 1V, 1MHz | - | 2V @ 10A | - | 0ns | - | - | 1200V (1.2kV) | 10A | - | - | - | Surface Mount | - | - | - | TO-252 | 0.8°C/W Jc | -55°C ~ 175°C | SiC | GeneSiC Semiconductor | - | - | - | - | - |
GB10SLT12-247D DIODE SCHOTTKY 1.2KV 12A TO247D Schottky Diodes & Rectifiers 1200V 24A SiC Schottky Rectifier GeneSiC Semiconductor | 191 | 1: ¥56.644 | - | Schottky Silicon Carbide Diodes | RoHS Compliant | Tube | 30 | 1.6 V | TO-247-3 | - | - | - 55 C | - | - | - | - | - | - | - | 1.2 kV | - | 32 A | 5 uA | - | - | - | - | - | - | Through Hole | - | - | - | - | - | SiC | GeneSiC Semiconductor | - | - | 234 W | 24 A | Single |
| 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
