cigen-GPB553B2
GPB553B2 switche Series
Durable pushbutton switches with LED and high current capacity
The GPB553B2 switch series from CW Industries, Inc., is a robust lineup of pushbutton switches designed to handle high current loads while incorporating an integrated LED indicator. These switches are ideal for applications requiring both reliable operation and visual feedback. If you're working on industrial control panels, machine interfaces, or any system that needs clear status indication alongside high current handling, these switches are a solid choice.
One thing worth noting is their durability; they are built to withstand harsh environments and frequent use, making them perfect for manufacturing lines or outdoor equipment. Engineers tend to reach for this when they need a switch that can handle more than just low current applications, such as motor control circuits or relay switching. Another practical observation is their ease of integration—CW Industries provides a wide range of mounting options, including surface mount and panel mount, which simplifies installation in various enclosure types. Overall, the GPB553B2 series offers a balanced mix of functionality and reliability, making them a go-to option for many projects demanding more from their pushbutton switches.

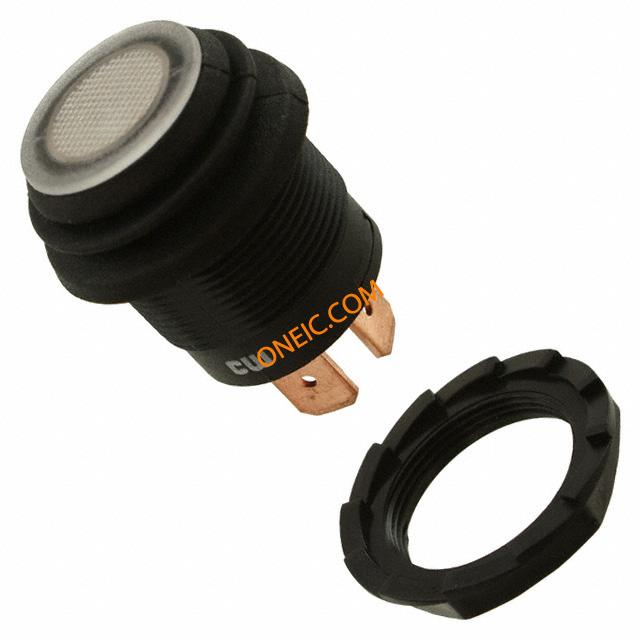

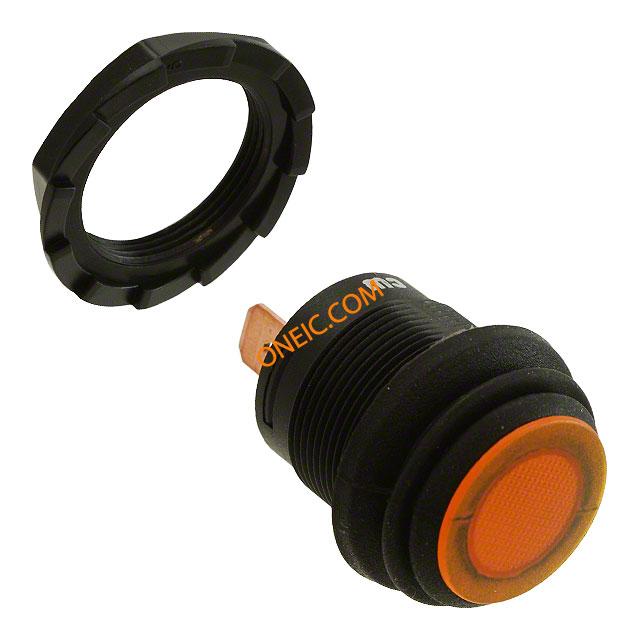

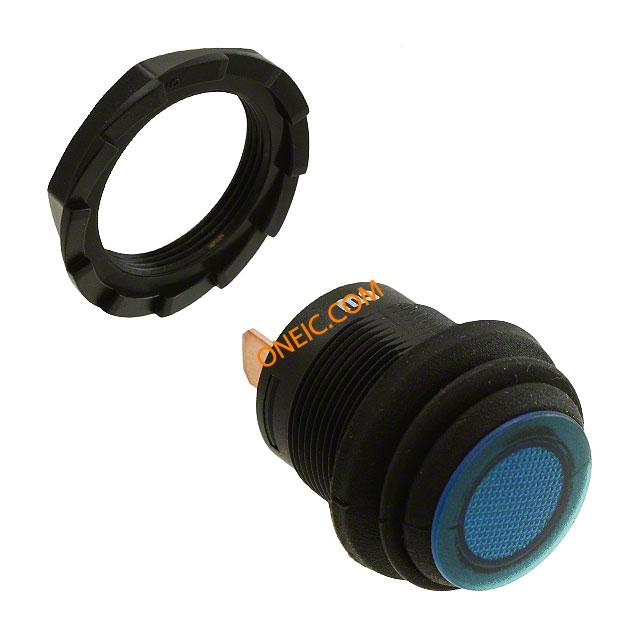

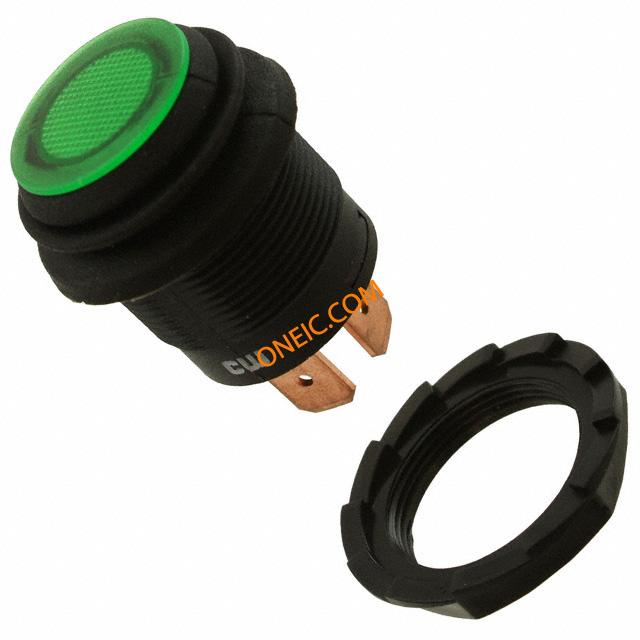

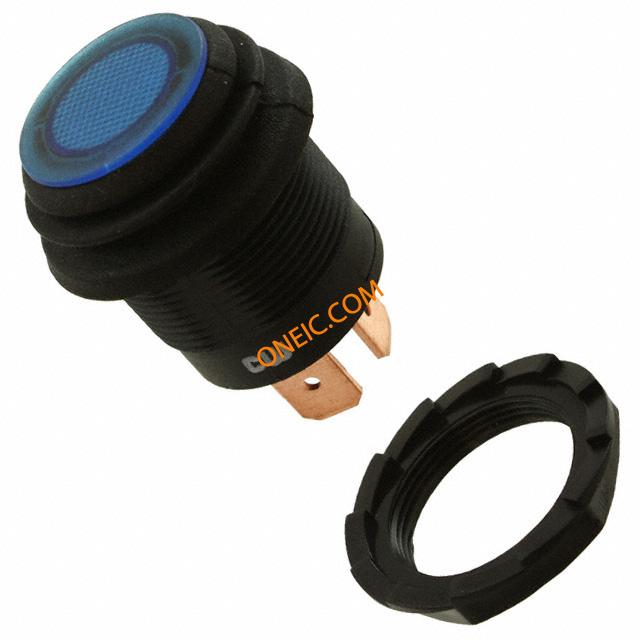

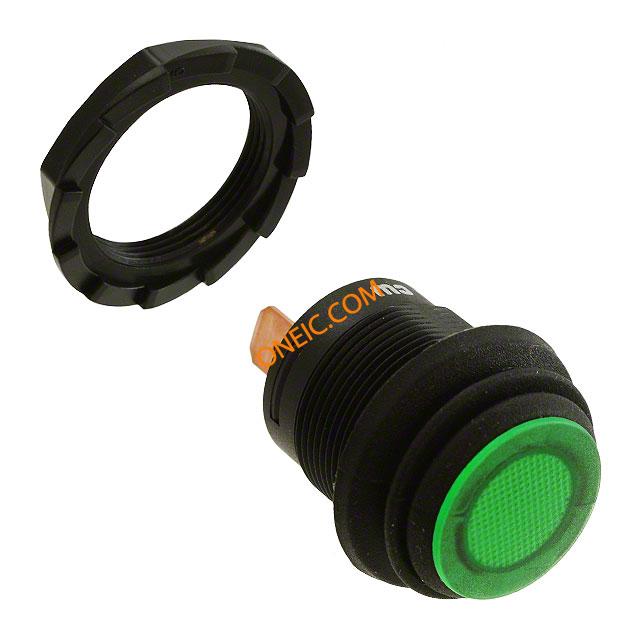

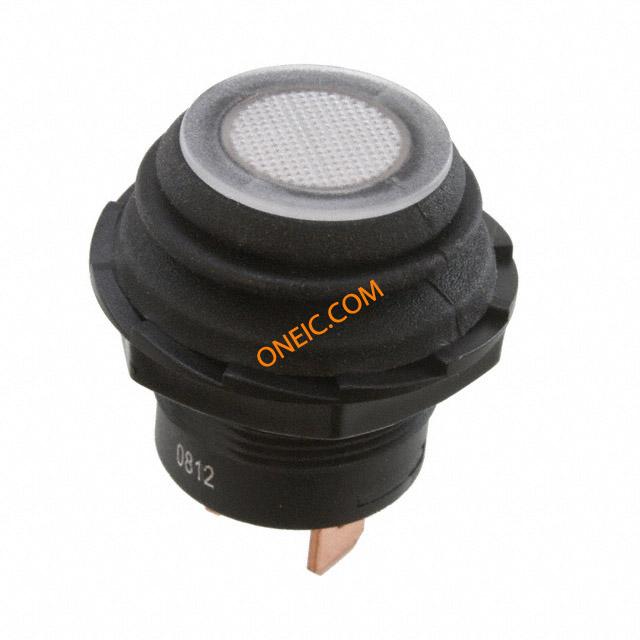

Series Images (11)
Documents & Media
Frequently Asked Questions
GPB553B2 switche - Part List
11 parts in total| Mfr Part # | Quantity Available | Price | Category | Other Names | Standard Package | Circuit | Voltage Rating | Switch Function | Current Rating (Max) | Packaging | Actuator Type | Mounting Type | Termination Style | Color - Actuator/Cap | Panel Cutout Dimensions | Type | Electrical Life | Ingress Protection | Operating Temperature | Illumination Voltage (Nominal) | Illumination Type, Color | RoHS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GPB553B2L01BR Pushbutton Switches OFF-ON Pushbutton LED IP65 SWITCH PUSHBUTTON SPST 10A 14V CW Industries | 751 | 1: ¥33.728 | - | CW157 | 500 | SPST | 14V | On-Off | 10A (DC) | Bulk | Round, Button | Panel Mount, Front | Quick Connect - 0.250" (6.3mm) | Red | Circular - 22.00mm Dia | Standard, Illuminated | 20,000 Cycles | IP65 - Dust Tight, Water Resistant | -25°C ~ 85°C | 12 VDC | LED, Red | RoHS Compliant |
| 1731 | 1: ¥33.116 | - | CWI271 | 500 | SPST | 14V | Off-On | 10A (DC) | Bulk | Round, Button | Panel Mount, Front | Quick Connect - 0.250" (6.3mm) | Black | Circular - 22.00mm Dia | Standard | 20,000 Cycles | IP65 - Dust Tight, Water Resistant | -25°C ~ 85°C | - | - | - | |
| 462 | 1: ¥29.308 | - | CWI273 | 500 | SPST | 14V | Off-On | 10A (DC) | Bulk | Round, Button | Panel Mount, Front | Quick Connect - 0.250" (6.3mm) | Red | Circular - 22.00mm Dia | Standard | 20,000 Cycles | IP65 - Dust Tight, Water Resistant | -25°C ~ 85°C | - | - | - | |
| 487 | 1: ¥30.056 | - | CWI270 | 500 | SPST | 14V | Off-On | 10A (DC) | Bulk | Round, Button | Panel Mount, Front | Quick Connect - 0.250" (6.3mm) | Amber | Circular - 22.00mm Dia | Standard | 20,000 Cycles | IP65 - Dust Tight, Water Resistant | -25°C ~ 85°C | - | - | - | |
| 479 | 1: ¥30.056 | - | CWI272 | 500 | SPST | 14V | Off-On | 10A (DC) | Bulk | Round, Button | Panel Mount, Front | Quick Connect - 0.250" (6.3mm) | Green | Circular - 22.00mm Dia | Standard | 20,000 Cycles | IP65 - Dust Tight, Water Resistant | -25°C ~ 85°C | - | - | - | |
| 449 | 1: ¥30.056 | - | CWI275 | 500 | SPST | 14V | Off-On | 10A (DC) | Bulk | Round, Button | Panel Mount, Front | Quick Connect - 0.250" (6.3mm) | White | Circular - 22.00mm Dia | Standard | 20,000 Cycles | IP65 - Dust Tight, Water Resistant | -25°C ~ 85°C | - | - | - | |
| 487 | 1: ¥30.056 | - | CWI274 | 500 | SPST | 14V | Off-On | 10A (DC) | Bulk | Round, Button | Panel Mount, Front | Quick Connect - 0.250" (6.3mm) | Blue | Circular - 22.00mm Dia | Standard | 20,000 Cycles | IP65 - Dust Tight, Water Resistant | -25°C ~ 85°C | - | - | - | |
| 524 | 1: ¥39.848 | - | CWI278 | 500 | SPST | 14V | Off-On | 10A (DC) | Bulk | Round, Button | Panel Mount, Front | Quick Connect - 0.250" (6.3mm) | Blue | Circular - 22.00mm Dia | Standard, Illuminated | 20,000 Cycles | IP65 - Dust Tight, Water Resistant | -25°C ~ 85°C | 12 VDC | LED, Blue | - | |
| 794 | 1: ¥42.50 | - | CWI277 | 500 | SPST | 14V | Off-On | 10A (DC) | Bulk | Round, Button | Panel Mount, Front | Quick Connect - 0.250" (6.3mm) | Green | Circular - 22.00mm Dia | Standard, Illuminated | 20,000 Cycles | IP65 - Dust Tight, Water Resistant | -25°C ~ 85°C | 12 VDC | LED, Green | - | |
| 958 | 1: ¥42.50 | - | CWI276 | 500 | SPST | 14V | Off-On | 10A (DC) | Bulk | Round, Button | Panel Mount, Front | Quick Connect - 0.250" (6.3mm) | Amber | Circular - 22.00mm Dia | Standard, Illuminated | 20,000 Cycles | IP65 - Dust Tight, Water Resistant | -25°C ~ 85°C | 12 VDC | LED, Amber | - | |
| 452 | 1: ¥38.76 | - | CWI279 | 500 | SPST | 14V | Off-On | 10A (DC) | Bulk | Round, Button | Panel Mount, Front | Quick Connect - 0.250" (6.3mm) | White | Circular - 22.00mm Dia | Standard, Illuminated | 20,000 Cycles | IP65 - Dust Tight, Water Resistant | -25°C ~ 85°C | 12 VDC | LED, White | - |
