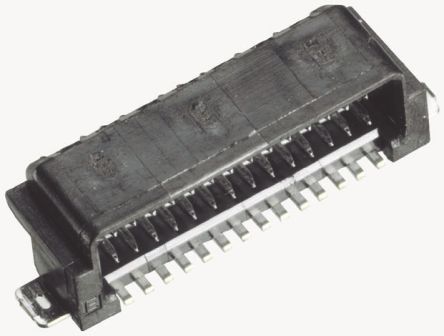

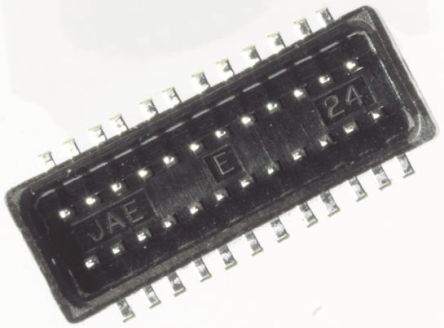

The IL-WX-20PB series from Japan Aviation Electronics is a compact 0.8mm pitch 20-position pin header designed for Surface Mount Technology (SMT) PCB connections. These headers are ideal for space-constrained applications where a high-density connection is required without compromising on reliability. If you're working on small form factor devices such as industrial controllers, consumer electronics, or medical equipment, these headers will be right up your alley.

One thing worth noting is their robust design, which includes a wide contact area that ensures stable connections even under harsh conditions. Engineers tend to reach for this when they need to maximize board space while maintaining strong signal integrity. Another practical benefit is their ease of use; they are compatible with most standard SMT assembly processes, making them a versatile addition to any prototyping or production line.

The 0.8mm pitch allows for more pins in a given space compared to larger pitch connectors, which is crucial in densely packed circuit boards. However, it also means that careful PCB design and component placement are essential to avoid signal crosstalk and ensure reliable performance. Overall, the IL-WX-20PB series is a solid choice for anyone looking to integrate high-density SMT connections into their designs.
