J3026G modular connectors / ethernet connector Series

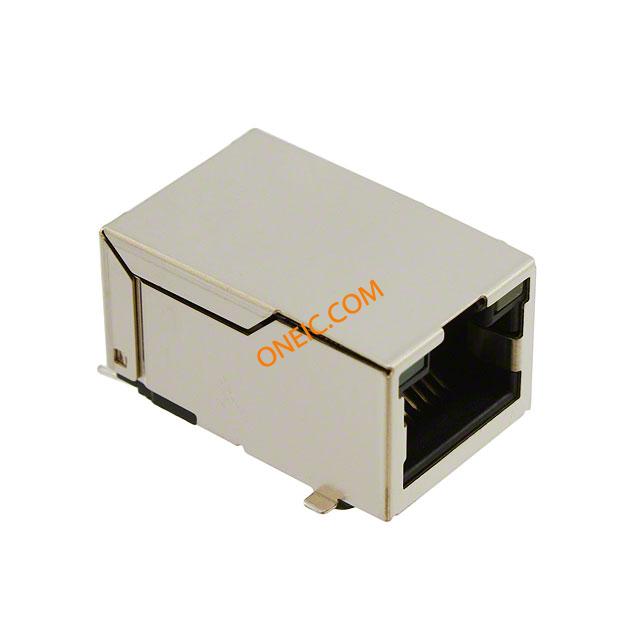

The J3026G series from Pulse Electronics Corporation are surface-mount RJ-45 Ethernet connectors that integrate magnetics and LEDs directly into the connector housing. This design simplifies board-level integration and reduces the need for external components, which is a significant advantage in compact PCB layouts.

These connectors are commonly used in industrial control systems, network switches, and embedded devices where space is at a premium. The integrated magnetics help reduce electromagnetic interference (EMI), making them suitable for environments with stringent EMI requirements. Additionally, the built-in LEDs provide visual status indication, which is handy for quick troubleshooting without needing specialized equipment.

One thing worth noting is that the J3026G series supports high-speed data transfer rates, making them ideal for applications requiring fast Ethernet connectivity. Engineers tend to reach for these connectors when they need reliable, high-performance Ethernet connections in space-constrained environments. The surface-mount design also facilitates automated assembly processes, reducing manufacturing costs and improving production efficiency.

Mfr Part #	Quantity Available	Price	Category	Lead Time	Subcategory	Packaging	For Use With/Related Products	Product Category	RoHS	Depth	Pitch	Height	Shielding	Termination	Mounting Type	Contact Finish	Contact Material	Housing Material	Termination Style	Number of Contacts	Type	Gender	USOC Codes	Number of Ports	Length - Overall	Number of Positions Loaded	Standard Package	LED Color	Orientation	Tab Direction	Connector Type	Number of Rows	Shield Material	Height Above Board	Contact Finish Thickness	Features	Applications	Number of Cores per Jack	Operating Temperature	Mounting Style	Series	Number of Positions/Contacts	Automotive	Leadfree Defin	Data Rate	Width	Length	Flex Strength	Note	EU RoHS	Factory Pack Quantity	MOQ	Unit Pack	Other Names	Material Flammability Rating	Turns Ratio - Primary:Secondary	Matchcode	Standard Leadtime	RF Family/Standard	Color	End Style	Number of Positions	Material - Insulation	Other Specifications	Assembly Configuration	LED	Finish	Weight	Temperature - Test	Voltage Rating
2 J3026G21DNL Conn RJ-45 Integrated Magnetics F 8 POS 1.02mm Solder RA SMD 12 Terminal 1 Port Tray RJ-45 TAB-UP+EMI+LED G/Y SMD CONN MAGJACK 1PORT 100 BASE-TX Modular Connectors / Ethernet Connectors tab up 5-core SMT pulse	917	1: ¥60.044	-	84 Days	Connector Telephone and Telecom	Tray	J3026G21D	Modular Connectors / Ethernet Connectors	Compliant	25.4	1.02 mm	13.61mm	Shielded, EMI Finger	Solder	Surface Mount	Gold Over Nickel	Phosphor Bronze	Thermoplastic	SMD	8	RJ-45 Integrated Magnetics	F	RJ45	1	-	-	Bulk	Green - Yellow	Right Angle	Up	RJ45	1	Brass	0.536" (13.61mm)	30µin (0.76µm)	Board Guide	10/100 Base-TX	5	0°C ~ 70°C	-	-	-	NO	RoHS-conform	100MBit	16mm	25.4mm	1.5kV	IEEE802,3	-	-	270	45	J3026G21DNL-ND	UL 94 V-0	1CTS:1	INDERJ-45	12 weeks	-	-	Solder	8	Thermoplastic	1.02	Surface Mount	-	-	-	-	-
J3026G21DNLT Conn RJ-45 Integrated Magnetics F 8 POS 1.02mm Solder RA SMD 12 Terminal 1 Port T/R CONN MAGJACK 1PORT 100 BASE-TX Modular Connectors / Ethernet Connectors 1x1 tab up 5-core SMT RJ-45 TAB-UP EMI LED G/Y SMD pulse	75	1: ¥33.252	-	84 Days	Connector Telephone and Telecom	Tape and Reel	J3026G21DT	Modular Connectors / Ethernet Connectors	Lead free / RoHS Compliant	25.4	1.02 mm	13.61 mm	Shielded, EMI Finger	Solder	Surface Mount	Gold Over Nickel	Phosphor Bronze	Thermoplastic	SMD	8	RJ-45 Integrated Magnetics	F	RJ45	1	16.1	8	Tape & Reel	Green - Yellow	90° Angle (Right)	Up	RJ45	1	Brass	0.536" (13.61mm)	30µin (0.76µm)	Board Guide	10/100 Base-TX	5	0°C ~ 70°C	-	-	-	NO	RoHS-conform	100 MBit	16 mm	25.4 mm	1.5 kV	IEEE802,3	Compliant	-	-	-	-	-	1CTS:1	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 J3026G01DNLT Conn RJ-45 Integrated Magnetics F 8 POS 1.02mm Solder RA SMD 12 Terminal 1 Port T/R CONN MAGJACK 1PORT 100 BASE-TX Modular Connectors / Ethernet Connectors 1x1 tab up 5-core SMT pulse	1650	75: ¥52.3826	-	84 Days	Connector Telephone and Telecom	Tape and Reel	J3026G01DT	Modular Connectors / Ethernet Connectors	Lead free / RoHS Compliant	25.4 mm	1.02 mm	13.61 mm	Shielded, EMI Finger	Solder	Surface Mount	Gold Over Nickel	Phosphor Bronze	Thermoplastic	SMD	8	RJ-45 Integrated Magnetics	F	RJ45	1	16.1 mm	8	Tape & Reel	Green - Yellow	90° Angle (Right)	Up	RJ45	1	Brass	0.536" (13.61mm)	30µin (0.76µm)	Board Guide	10/100 Base-TX	5	0°C ~ 70°C	Surface Mount	-	-	-	-	-	-	-	-	-	Compliant	-	-	-	553-1929-1	UL 94 V-0	-	-	-	J3	-	-	-	-	-	-	-	-	-	-	-
2 J3026G01DNL Conn RJ-45 Integrated Magnetics F 8 POS 1.02mm Solder RA SMD 12 Terminal 1 Port Tray RJ-45 TAB-UP+EMI+LED G/Y SMD CONN MAGJACK 1PORT 100 BASE-TX Modular Connectors / Ethernet Connectors tab up 5-core SMT RJ-45 TAB-UP EMI LED G/Y SMD pulse	210	1: ¥60.044	-	84 Days	Connector Telephone and Telecom	Tray	J3026G01D	Modular Connectors / Ethernet Connectors	Lead free / RoHS Compliant	25.4 mm	1.02 mm	13.61mm	Shielded, EMI Finger	Solder	Surface Mount	Gold Over Nickel	Phosphor Bronze	Thermoplastic	Solder	8	RJ-45 Integrated Magnetics	F	RJ45	1	16.1 mm	8	Bulk	Green - Yellow	90° Angle (Right)	Up	RJ45	1	Brass	0.536" (13.61mm)	30µin (0.76µm)	Board Guide	10/100 Base-TX	5	0°C ~ 70°C	Panel	J30	8	NO	RoHS-conform	100MBit	16.1mm	25.4mm	1.5kV	IEEE802.3	Compliant	-	45	45	-	-	-	INDERJ-45	13 weeks	J3	-	-	-	-	-	-	YES	YES	8.1g	0°C	-
J3026G21D Conn RJ-45 Integrated Magnetics F 8 POS 1.02mm Solder RA SMD 12 Terminal 1 Port Tray CONN MAGJACK 1PORT 100 BASE-TX Modular Connectors / Ethernet Connectors SMT 1X1 TAB UP 5CORE W/LEDS 10/100 Pulse Electronics Corporation	10	1: ¥55.012	-	365 Days	Connector Telephone and Telecom	Tray	J3026G21DNL	Modular Connectors / Ethernet Connectors	Contains lead / RoHS non-compliant	25.4	1.02	13.61	Shielded, EMI Finger	Solder	Right Angle	Gold Over Nickel	Phosphor Bronze	Thermoplastic	Solder	8	RJ-45 Integrated Magnetics	F	RJ45	1	16.1	8	45	Green - Yellow	90° Angle (Right)	Up	RJ45	1	Brass	0.536" (13.61mm)	30µin (0.76µm)	Board Guide	10/100 Base-TX	5	0°C ~ 70°C	Panel	J30	8	-	-	-	-	-	-	-	-	45	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	1.5 kV
J3026G01DT Conn RJ-45 Integrated Magnetics F 8 POS 1.02mm Solder RA SMD 12 Terminal 1 Port T/R Modular Connectors / Ethernet Connectors SMT 1X1 TAB UP 5CORE W/LEDS 10/100 Pulse Electronics Corporation	10	75: ¥39.848	-	91 Days	Connector Telephone and Telecom	Tape and Reel	J3026G01DNLT	Modular Connectors / Ethernet Connectors	No	25.4	1.02	13.61	Shielded	Solder	Right Angle	Gold Over Nickel	Phosphor Bronze	Thermoplastic	Solder	8	RJ-45 Integrated Magnetics	F	RJ45	1	16.1	8	-	-	-	-	-	-	-	-	-	-	-	-	-	Panel	J30	8	-	-	-	-	-	-	-	-	75	-	-	-	-	-	-	-	-	Green / Yellow	-	-	-	-	-	-	-	-	-	-
J3026G01D Conn RJ-45 Integrated Magnetics F 8 POS 1.02mm Solder RA SMD 12 Terminal 1 Port Tray Modular Connectors / Ethernet Connectors SMT 1X1 TAB UP 5CORE W/LEDS 10/100 Pulse Electronics Corporation	10	1: ¥37.74	-	91 Days	Connector Telephone and Telecom	Tray	J3026G01DNL	Modular Connectors / Ethernet Connectors	No	25.4	1.02	13.61	Shielded	Solder	Right Angle	Gold Over Nickel	Phosphor Bronze	Thermoplastic	Solder	8	RJ-45 Integrated Magnetics	F	RJ45	1	16.1	8	-	-	-	-	-	-	-	-	-	-	-	-	-	Panel	J30	8	-	-	-	-	-	-	-	-	45	-	-	-	-	-	-	-	-	Green / Yellow	-	-	-	-	-	-	-	-	-	-
J3026G21DT Pulse	0		-	365 Days	Connector Telephone and Telecom	Tape and Reel	J3026G21DNLT	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
