cigen-LE-0504-01
LE-0504-01 led lighting Series
jkl-components12V wedge base LED lamps in multiple colors for indicator applications
The LE-0504-01 series from JKL Components Corporation consists of 12V wedge base LED lamps available in various colors, primarily designed for indicator applications. These lamps are commonly found in control panels, industrial equipment, and automotive dashboards where clear and reliable visual signaling is crucial.
If you're working on any project that requires small, bright indicators, these LED lamps are a go-to choice. They offer a compact design that fits into standard wedge bases, making them easy to integrate into existing systems. One thing worth noting is their efficiency; they consume less power compared to traditional incandescent bulbs, which can be a significant advantage in battery-powered devices or systems where energy conservation is key. Additionally, the LED technology provides a longer lifespan and better color consistency over time, reducing maintenance needs and ensuring consistent performance. Engineers tend to reach for this when they need a reliable, low-maintenance indicator light that doesn’t compromise on brightness or color quality.
Series Images (20)
Documents & Media
Frequently Asked Questions
LE-0504-01 led lighting - Part List
6 parts in total| Mfr Part # | Quantity Available | Price | Category | Standard Package | Voltage - Supply | Millicandela Rating | Color | Base Type | Configuration | Product | Product Category | RoHS | Wavelength | Viewing Angle | Voltage Rating | LED Forward Current | LED Forward Voltage | Current Rating (Max) | Length | Diameter | LED Color | Packaging | Light Color | Lens Diameter | Lens Style/Size | Illumination Color | Socket Type | Lamp/Magnifier Type | Wavelength - Peak | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

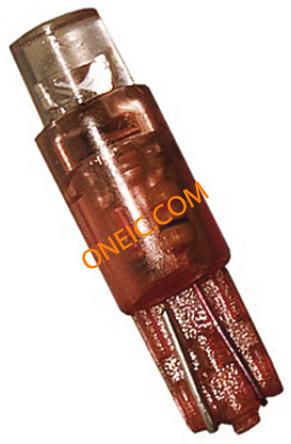

 LE-0504-01R LED Replacement Lamps - Based LEDs Red 630nm 12V Wedge Base LED Lamp LED T-1.75 12V WEDGE 25MA RED T1 3/4 5mm LED Wedge lamp Red 12V T1-3/4 Wedge LED 12VDC Red 红色 楔形 LED指示灯灯泡, 5 mm灯, 4.5mm直径, 12 V 直流 JKL Components | 10 | 100: ¥3.5727 | - | 100 | 13.2V | 340mcd | Red | Wedge | Single | Single Color Based LEDs | LED Replacement Lamps - Based LEDs | RoHS Compliant | 627nm | 95° | 12 V dc | 15 mA | 12 V | 15 mA | 20.3 mm | 4.5mm | 红色 | Bulk | Red | 5 mm | 95° | Red | 楔形 | 5 mm | 630 nm | T - 1 3/4 |
 LE-0504-01W LED Replacement Lamps - Based LEDs White 12 Volts Wedge Base LED Lamp LED T-1.75 12V WEDGE 25MA WHITE T1 3/4 5mm LED Wedge lamp White 12V T1-3/4 Wedge LED 12VDC White 白色 楔形 LED指示灯灯泡, 5 mm灯, 4.5mm直径, 12 V 直流 JKL Components | 48 | 1: ¥8.704 | - | 100 | 12V | 900mcd | White | Wedge | Single | Single Color Based LEDs | LED Replacement Lamps - Based LEDs | RoHS Compliant | - | 95° | 12 V dc | 15 mA | 12 V | 15 mA | 20.3 mm | 4.5mm | 白色 | Bulk | White | 5 mm | 95° | White | 楔形 | 5 mm | - | - |
 LE-0504-01B LED Replacement Lamps - Based LEDs Blue 470nm 12V Wedge Base LED Lamp LED T-1.75 12V WEDGE 25MA BLUE T1 3/4 5mm LED Wedge lamp Blue 12V T1-3/4 Wedge LED 12VDC Blue 蓝色 楔形 LED指示灯灯泡, 5 mm灯, 4.5mm直径, 12 V 直流 JKL Components | 82 | 1: ¥8.704 | - | 100 | 12V | 290mcd | Blue | Wedge | Single | Single Color Based LEDs | LED Replacement Lamps - Based LEDs | RoHS Compliant | 473nm | 95° | 12 V dc | 15 mA | 12 V | 15 mA | 20.3 mm | 4.5mm | 蓝色 | Bulk | Blue | 5 mm | 95° | Blue | 楔形 | 5 mm | 470 nm | - |
 LE-0504-01Y LED Replacement Lamps - Based LEDs Yel 595nm 12V Wedge Base LED Lamp LED T-1.75 12V WEDGE 25MA YELLOW T1 3/4 5mm LED Wedge lamp Yellow 12V T1-3/4 Wedge LED 12VDC Yellow 黄色 楔形 LED指示灯灯泡, 5 mm灯, 4.5mm直径, 12 V 直流 JKL Components | 339 | 1: ¥4.964 | - | 100 | 12V | 400mcd | Yellow | Wedge | Single | Single Color Based LEDs | LED Replacement Lamps - Based LEDs | RoHS Compliant | 595nm | 95° | 12 V dc | 15 mA | 12 V | 15 mA | 20.3 mm | 4.5mm | 黄色 | Bulk | Yellow | 5 mm | 95° | Yellow | 楔形 | 5 mm | 595 nm | - |
 LE-0504-01G LED Replacement Lamps - Based LEDs Grn 525nm 12V Wedge Base LED Lamp LED T-1.75 12V WEDGE 25MA GREEN T1 3/4 5mm LED Wedge lamp Green 12V T1-3/4 Wedge LED 12VDC Green 绿色 楔形 LED指示灯灯泡, 5 mm灯, 4.5mm直径, 12 V 直流 JKL Components | 37 | 1: ¥8.704 | - | 100 | 12V | 1350mcd | Green | Wedge | Single | Single Color Based LEDs | LED Replacement Lamps - Based LEDs | RoHS Compliant | 525nm | 95° | 12 V dc | 15 mA | 12 V | 15 mA | 20.3 mm | 4.5mm | 绿色 | Bulk | Green | 5 mm | 95° | Green | 楔形 | 5 mm | 525 nm | - |
 | 10 | 100: ¥7.2352 | - | 100 | 13.2V | 170mcd | Ultraviolet (UV) | Wedge | Single | - | - | - | 405nm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | T - 1 3/4 |
