LE-0509 led lighting Series

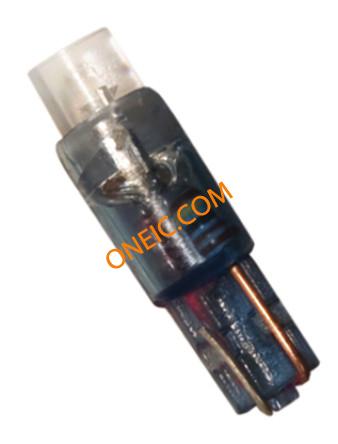

The LE-0509 series from JKL Components Corporation consists of 24V wedge base LED lamps available in a variety of colors and sizes. These lamps are commonly used in residential and commercial lighting applications where a compact and energy-efficient light source is required. If you're working on projects that need a versatile, low-voltage lighting solution, these LED lamps could be a great fit.

One thing worth noting is their flexibility in color options. Whether you need warm white, cool white, or even colored lights, the LE-0509 series can cater to different aesthetic needs. This makes them ideal for accent lighting, decorative fixtures, and even mood-setting applications. Additionally, their wedge base design allows for easy integration into existing fixtures, which can save time and labor during installation.

Engineers tend to reach for this series when they require a reliable, long-lasting light source that doesn’t compromise on energy efficiency. The 24V operation is particularly handy in environments where higher voltage is a safety concern. Moreover, the variety in sizes means you can choose the perfect fit for your specific application, whether it’s a small recessed light or a larger spotlight. Overall, the LE-0509 series offers a practical and efficient lighting solution for a wide range of projects.

Mfr Part #	Quantity Available	Price	Category	Product	Product Category	Standard Package	RoHS	Viewing Angle	Voltage Rating	Voltage - Supply	LED Forward Current	LED Forward Voltage	Millicandela Rating	Current Rating (Max)	Color	Length	Diameter	Base Type	LED Color	Packaging	Light Color	Lens Diameter	Lens Style/Size	Illumination Color	Socket Type	Configuration	Lamp/Magnifier Type	Wavelength	Wavelength - Peak	Size / Dimension
3 LE-0509-01W LED Replacement Lamps - Based LEDs White 24 Volts Wedge Base LED Lamp LED T-1.75 24V WEDGE WHITE T-1 3/4 5mm LED Wedge White 24VDC T-13/45mmLEDWedgeWhite24VDC T1-3/4 Wedge LED 24VDC White 白色楔形 LED指示灯灯泡, T-1 3/4灯, 4.5mm直径, 24 V JKL Components	64	1: ¥10.1048	-	Single Color Based LEDs	LED Replacement Lamps - Based LEDs	100	RoHS Compliant	95°	24 V	24V	15 mA	24 V	1300mcd	15 mA	White	20.3 mm	4.5mm	Wedge	白色	Bulk	White	T-1 3/4	95°	White	Wedge	Single	T-1 3/4	-	-	-
3 LE-0509-01R LED Replacement Lamps - Based LEDs Red 630nm 24V Wedge Base LED Lamp LED T-1.75 24V WEDGE RED T-1 3/4 5mm LED Wedge Red 24VDC T1-3/4 Wedge LED 24VDC Red 红色楔形 LED指示灯灯泡, T-1 3/4灯, 4.5mm直径, 24 V JKL Components	73	1: ¥5.984	-	Single Color Based LEDs	LED Replacement Lamps - Based LEDs	100	RoHS Compliant	95°	24 V	24V	15 mA	24 V	340mcd	15 mA	Red	20.3 mm	4.5mm	Wedge	红色	Bulk	Red	T-1 3/4	95°	Red	Wedge	Single	T-1 3/4	630nm	630 nm	-
2 LE-0509-01Y LED Replacement Lamps - Based LEDs Yel 595nm 24V Wedge Base LED Lamp LED T-1.75 24V WEDGE YELLOW T-1 3/4 5mm LED Wedge Yellow 24VDC T1-3/4 Wedge LED 24VDC Yellow 黄色楔形 LED指示灯灯泡, T-1 3/4灯, 4.5mm直径, 24 V JKL Components	226	1: ¥6.664	-	Single Color Based LEDs	LED Replacement Lamps - Based LEDs	100	RoHS Compliant	95°	24 V	24V	15 mA	24 V	400mcd	15 mA	Yellow	20.3 mm	4.5mm	Wedge	黄色	Bulk	Yellow	T-1 3/4	95°	Yellow	Wedge	Single	T-1 3/4	595nm	595 nm	T - 1 3/4
2 LE-0509-02Y LED Replacement Lamps - Based LEDs Yel 595nm 24V Wedge Base LED Lamp LED T-3.25 24V WEDGE YELLOW T-3 1/4 10mm LED Wedge Yellow 24VDC T-31/410mmLEDWedgeYellow24VDC T3-1/4 Wedge LED 24VDC Yellow 黄色楔形 LED指示灯灯泡, T - 3 1/4灯, 10mm直径, 24 V JKL Components	35	1: ¥6.664	-	Single Color Based LEDs	LED Replacement Lamps - Based LEDs	100	RoHS Compliant	20°	24 V	24V	20 mA	24 V	3000mcd	20 mA	Yellow	28.5 mm	10mm	Wedge	黄色	Bulk	Yellow	T-3 1/4	20°	Yellow	Wedge	Single	T-3 1/4	595nm	595 nm	T - 3 1/4
2 LE-0509-02R LED Replacement Lamps - Based LEDs Red 630nm 24V Wedge Base LED Lamp LED T-3.25 24V WEDGE RED T-3 1/4 10mm LED Wedge Red 24VDC T3-1/4 Wedge LED 24VDC Red 红色楔形 LED指示灯灯泡, T - 3 1/4灯, 10mm直径, 24 V JKL Components	71	1: ¥6.664	-	Single Color Based LEDs	LED Replacement Lamps - Based LEDs	100	RoHS Compliant	20°	24 V	24V	20 mA	24 V	2300mcd	20 mA	Red	28.5 mm	10mm	Wedge	红色	Bulk	Red	T-3 1/4	20°	Red	Wedge	Single	T-3 1/4	630nm	630 nm	T - 3 1/4
LE-0509-02B LED Replacement Lamps - Based LEDs Blue 470nm 24V Wedge Base LED Lamp LED T-3.25 24V WEDGE BLUE T-3 1/4 10mm LED Wedge Blue 24VDC T3-1/4 Wedge LED 24VDC Blue 蓝色楔形 LED指示灯灯泡, T - 3 1/2灯, 10mm直径, 24 V JKL Components	96	1: ¥11.56	-	Single Color Based LEDs	LED Replacement Lamps - Based LEDs	100	RoHS Compliant	20°	24 V	24V	20 mA	24 V	950mcd	20 mA	Blue	28.5 mm	10mm	Wedge	蓝色	Bulk	Blue	T-3 1/2	20°	Blue	Wedge	Single	T-3 1/2	470nm	470 nm	T - 3 1/4
3 LE-0509-02W LED Replacement Lamps - Based LEDs White 24 Volts Wedge Base LED Lamp LED T-3.25 24V WEDGE WHITE T3 1/4 10mm LED Wedge White 24V T3-1/4 Wedge LED 24VDC White 白色楔形 LED指示灯灯泡, 9 mm灯, 10mm直径, 24 V 直流 JKL Components	100	1: ¥7.616	-	Single Color Based LEDs	LED Replacement Lamps - Based LEDs	100	RoHS Compliant	20°	24 V dc	24V	20 mA	24 V	6200mcd	20 mA	White	28.5 mm	10mm	Wedge	白色	Bulk	White	9 mm	30°	White	楔形	Single	9 mm	-	-	-
3 LE-0509-01B LED Replacement Lamps - Based LEDs Blue 470nm 24V Wedge Base LED Lamp LED T-1.75 24V WEDGE BLUE T-1 3/4 5mm LED Wedge Blue 24VDC T1-3/4 Wedge LED 24VDC Blue 蓝色楔形 LED指示灯灯泡, T-1 3/4灯, 4.5mm直径, 24 V JKL Components	68	1: ¥11.56	-	Single Color Based LEDs	LED Replacement Lamps - Based LEDs	100	RoHS Compliant	95°	24 V	24V	15 mA	24 V	290mcd	15 mA	Blue	20.3 mm	4.5mm	Wedge	蓝色	Bulk	Blue	T-1 3/4	95°	Blue	Wedge	Single	T-1 3/4	470nm	470 nm	-
2 LE-0509-01G LED Replacement Lamps - Based LEDs Grn 525nm 24V Wedge Base LED Lamp LED T-1.75 24V WEDGE GREEN T-1 3/4 5mm LED Wedge Green 24VDC T1-3/4 Wedge LED 24VDC Green 绿色楔形 LED指示灯灯泡, T-1 3/4灯, 4.5mm直径, 24 V JKL Components	74	1: ¥8.704	-	Single Color Based LEDs	LED Replacement Lamps - Based LEDs	100	RoHS Compliant	95°	24 V	24V	15 mA	24 V	1350mcd	15 mA	Green	20.3 mm	4.5mm	Wedge	绿色	Bulk	Green	T-1 3/4	95°	Green	Wedge	Single	T-1 3/4	525nm	525 nm	T - 1 3/4
2 LE-0509-02G LED Replacement Lamps - Based LEDs Grn 525nm 24V Wedge Base LED Lamp LED T-3.25 24V WEDGE GREEN T-3 1/4 10mm LED Wedge Green 24VDC T3-1/4 Wedge LED 24VDC Green 绿色楔形 LED指示灯灯泡, T - 3 1/4灯, 10mm直径, 24 V JKL Components	71	1: ¥11.56	-	Single Color Based LEDs	LED Replacement Lamps - Based LEDs	100	RoHS Compliant	20°	24 V	24V	20 mA	24 V	5600mcd	20 mA	Green	28.5 mm	10mm	Wedge	绿色	Bulk	Green	T-3 1/4	20°	Green	Wedge	Single	T-3 1/4	525nm	525 nm	T - 3 1/4
