cigen-LOPL-E001

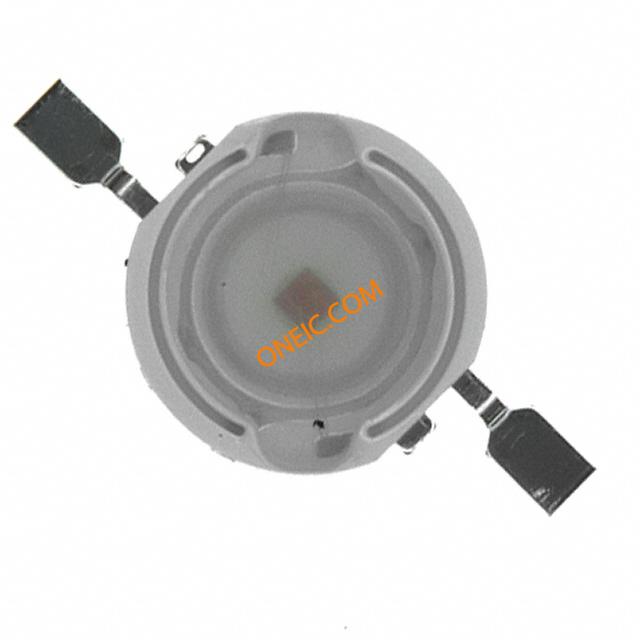

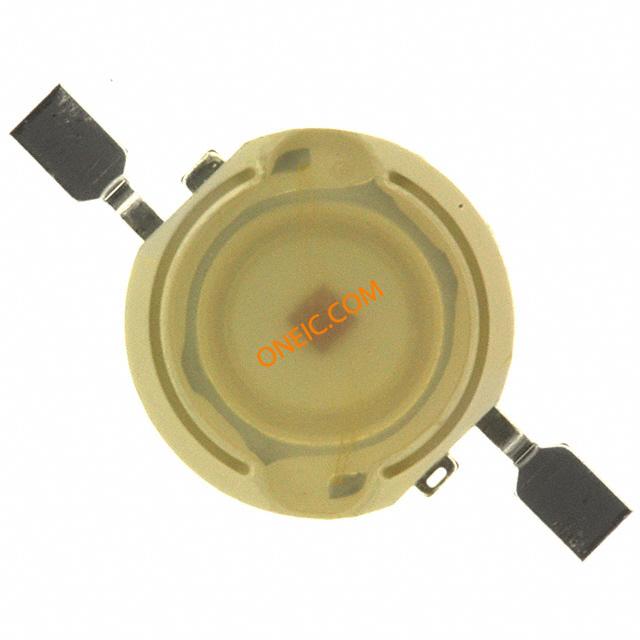

LOPL-E001 optoelectronic Series
High-power 1W SMD LEDs in various colors and white temperatures
The LOPL-E001 series from Lite-On Technology Corporation offers high-power 1W Surface Mount Device (SMD) LEDs in a variety of colors and white temperatures. These LEDs are designed for applications requiring a lot of light output in a compact form factor, making them ideal for lighting fixtures, automotive interior and exterior lighting, and even signage.
One thing worth noting is their efficiency; they operate with relatively low power consumption while delivering significant light output, which makes them cost-effective for large-scale installations. Engineers tend to reach for these LEDs when they need a reliable light source that can handle demanding environments without compromising on performance. For instance, in automotive applications, these LEDs can be used for brake lights, turn signals, or even as ambient lighting within the cabin. In industrial settings, they are often used in machine vision systems where bright, consistent illumination is crucial.
Another practical use case is in architectural lighting, where the ability to control color temperature and intensity is essential for creating dynamic and aesthetically pleasing environments. Overall, the LOPL-E001 series provides a robust solution for high-demand lighting needs across various industries.
Series Images (9)
Documents & Media
Frequently Asked Questions
LOPL-E001 optoelectronic - Part List
12 parts in total| Mfr Part # | Quantity Available | Price | Category | RoHS | Packaging | Viewing Angle | Other Names | Standard Package | Current - Output | Voltage - Supply | Current Rating (Max) | Lumens/Watt @ Current - Test | Flux @ 25degC, Current - Test | Color | Package / Case | Thermal Resistance of Package | Luminous Flux @ Current/Temperature | Product Category | Factory Pack Quantity | Luminous Flux | LED Forward Current | LED Forward Voltage | Height | Length | Lamp Color | Mounting Style | Illumination Color | CRI (Color Rendering Index) | Mechanical Life | Operating Temperature | Wavelength | Mounting Type | Standard Package Name | EU RoHS | Lamp Output | Power Dissipation (Max) | Current - Peak Pulse (10/1000us) | Voltage - Gate Trigger (Vgt) (Max) | Lens Style | Material - Core | Package Quantity | Number of Positions | Type | Series | CCT (K) | Number of LEDs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LOPL-E001MB 1 WATT POWER LED W/ SQUARE MCPCB, WARM WHITE High Power LEDs - White 1 Watt White 3800K lite-on | 10 | 1: ¥31.892 | - | RoHS Compliant | Bulk | 110 deg | - | - | - | - | - | - | - | - | - | - | - | High Power LEDs - White | 510 | 28 lm | 350 mA | 3.8 V | 1.8 mm | 7.4 mm | 3800 K | SMD/SMT | Neutral White | 70 | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | + 80 C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
LOPL-E001W LED Uni-Color White 2-Pin SMD T/R High Power LEDs - White 1 Watt White 5500K LED 1W WHITE 5500K SMD lite-on | 10 | 500: ¥12.1176 | - | RoHS Compliant | Reel | 110° | 160-1781-2 | Tape & Reel | 350mA | 3.8V | 350mA | 32 lm/W | 43 lm (Typ) | White | 2SMD | 15°C/W | 43 lm | High Power LEDs - White | 500 | 43 lm | 350 mA | 3.8 V | 1.8 mm | 7.4 mm | 5500 K | Top Mount | Cool White | 85 | Obsolete | + 80 C | - | - | SMD | Compliant | Yes | 1500 | 350 | 5 | Circular | InGaN | SMD | 2 | Uni-Color | LOPL | 5617K | 1 |
LOPL-E001M LED Uni-Color White 2-Pin SMD T/R High Power LEDs - White 1 Watt White 3800K LED 1W NEUTRAL WHITE 3800K SMD lite-on | 10 | 1: ¥24.802 | - | RoHS Compliant | Reel | 110 deg | 160-1779-2 | Tape & Reel | 350mA | 3.8V | 350mA | 21 lm/W | 28 lm (Typ) | White | 2SMD | 15°C/W | 28 lm | High Power LEDs - White | 500 | 28 lm | 350 mA | 3.8 V | 1.8 mm | 7.4 mm | x=0.405/y=0.391 | Top Mount | Neutral White | 70 | Obsolete | + 80 C | - | - | SMD | Compliant | Yes | 1500 | 350 | 5 | Circular | InGaN | SMD | 2 | Uni-Color | LOPL | 3393K | 1 |
LOPL-E001MA 1 WATT POWER LED W/ STAR MCPCB, WARM WHITE High Power LEDs - White 1 Watt White 3800K 1 WATT POWER LED W/ STAR MCPCB lite-on | 10 | 510: ¥18.224 | - | RoHS Compliant | Bulk | 110 deg | - | - | - | - | - | - | - | - | - | - | - | High Power LEDs - White | 510 | 28 lm | 350 mA | 3.8 V | 1.8 mm | 7.4 mm | 3800 K | SMD/SMT | Neutral White | 70 | Obsolete | + 80 C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
LOPL-E001WA 1 WATT POWER LED W/ STAR MCPCB, COOL WHITE High Power LEDs - White 1 W Star White 5500K ATWATT POWER LED W/ STAR MCPCB lite-on | 10 | 510: ¥18.224 | - | RoHS Compliant | Bulk | - | - | - | - | - | - | - | - | - | - | - | - | High Power LEDs - White | 510 | 43 lm | 350 mA | 3.8 V | 1.8 mm | 7.4 mm | 5500 K | SMD/SMT | Cool White | 85 | Obsolete | + 80 C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
LOPL-E001WB 1 WATT POWER LED W/ SQUARE MCPCB, COOL WHITE High Power LEDs - White 1 W Square White 5500K 1 WATT POWER LED W/ SQUARE MCP lite-on | 10 | 510: ¥18.224 | - | RoHS Compliant | Bulk | - | - | - | - | - | - | - | - | - | - | - | - | High Power LEDs - White | 510 | 43 lm | 350 mA | 3.8 V | 1.8 mm | 7.4 mm | 5500 K | SMD/SMT | Cool White | 85 | Obsolete | + 80 C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 1: ¥29.308 | - | Lead free / RoHS Compliant | Tape & Reel (TR) | 110° | 160-1774-2 | 500 | 350mA | 2.57V | 350mA | 40 lm/W | 36 lm | Amber | 8mm Round | 13.7°C/W | 36 lm | - | - | - | - | - | - | - | - | - | - | - | - | - | 590nm | Surface Mount | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 10 | 500: ¥12.1176 | - | Lead free / RoHS Compliant | Tape & Reel (TR) | 110° | 160-1775-2 | 500 | 350mA | 3.8V | 350mA | 9 lm/W | 9 lm | Blue | 8mm Round | 13.7°C/W | 12 lm | - | - | - | - | - | - | - | - | - | - | - | - | - | 465nm | Surface Mount | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 10 | 500: ¥21.046 | - | Lead free / RoHS Compliant | Tape & Reel (TR) | 110° | 160-1776-2 | 500 | 350mA | 3.7V | 350mA | 27 lm/W | 35 lm | Cyan | 8mm Round | 13.7°C/W | 35 lm | - | - | - | - | - | - | - | - | - | - | - | - | - | 505nm | Surface Mount | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 10 | 1: ¥36.992 | - | Lead free / RoHS Compliant | Tape & Reel (TR) | 110° | 160-1777-2 | 500 | 350mA | 3.7V | 350mA | 39 lm/W | 51 lm | Green | 8mm Round | 13.7°C/W | 51 lm | - | - | - | - | - | - | - | - | - | - | - | - | - | 525nm | Surface Mount | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 10 | 1: ¥33.184 | - | Lead free / RoHS Compliant | Tape & Reel (TR) | 110° | 160-1778-2 | 500 | 350mA | 2.57V | 350mA | 49 lm/W | 44 lm | Red | 8mm Round | 13.7°C/W | 44 lm | - | - | - | - | - | - | - | - | - | - | - | - | - | 617nm | Surface Mount | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 10 | 1: ¥29.308 | - | Lead free / RoHS Compliant | Tape & Reel (TR) | 110° | 160-1780-2 | 500 | 350mA | 2.57V | 350mA | 41 lm/W | 37 lm | Red | 8mm Round | 13.7°C/W | 37 lm | - | - | - | - | - | - | - | - | - | - | - | - | - | 625nm | Surface Mount | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
