cigen-LTP-747
LTP-747 optoelectronic Series
lite-on5x7 dot matrix LED displays in various colors for versatile applications
The LTP-747 optoelectronic series from Lite-On Technology Corporation offers a range of 5x7 dot matrix LED displays in various colors, making them a flexible choice for a variety of projects and systems. These displays are commonly used in industrial control panels, instrumentation, and even some consumer electronics where a clear, customizable display is needed. If you're working on a project that requires a user-friendly interface with text or simple symbols, these displays can be a great fit.
One thing worth noting is their versatility in color options. You can choose from red, green, yellow, blue, and white LEDs, which allows for more dynamic and colorful visual feedback. This is particularly useful in environments where visibility is crucial, such as in outdoor equipment or dark settings. Additionally, the dot matrix format provides a good balance between display size and readability, making it easy to read messages or indicators without taking up too much space.
Engineers tend to reach for this when they need a straightforward, yet visually impactful way to communicate information to users. Whether it’s displaying status updates, error codes, or simply providing a friendly interface, the LTP-747 series can handle it with ease.

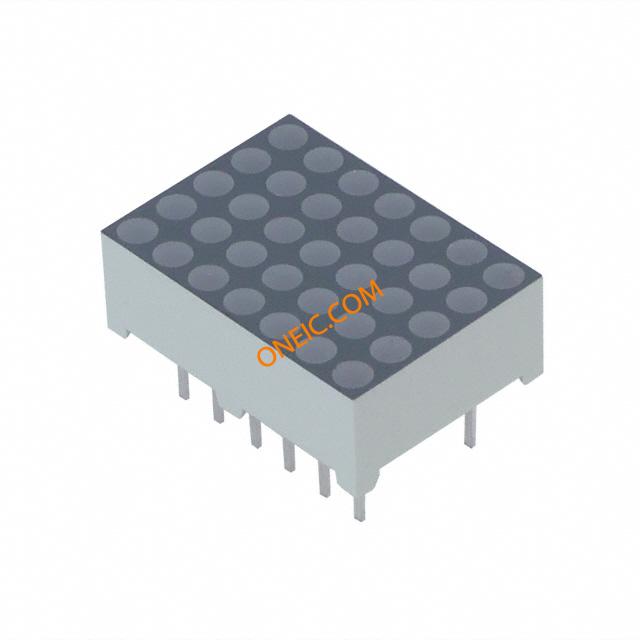

Series Images (4)
Documents & Media
Frequently Asked Questions
LTP-747 optoelectronic - Part List
9 parts in total| Mfr Part # | Quantity Available | Price | Category | Product Category | Standard Package | Factory Pack Quantity | RoHS | Luminous Flux | Voltage - Supply | Wavelength - Peak | Millicandela Rating | Color | Packaging | Height - Overall | Size / Dimension | Thickness - Overall | Type | Configuration | Channels per IC | Internal Connection | Wavelength - Dominant | MSCP (Mean Spherical Candle Power) | Package / Case | EU RoHS | Number of Positions | Standard Package Name | Lead Style | Package Quantity | Width | Mounting Type | Length - Overall | Shell Size - Insert | Printed Circuit Board |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LTP-747G Displays Dot Matrix Module 35LED Green Row CC Column CA 12-Pin LED Displays & Accessories Green Numeric Displays Module 35LED Green Anode Column Cathode Row 12-Pin DISPLAY DOT MATRX GRN 0.70" 5X7 lite-on | 497 | 1: ¥25.50 | - | LED Displays & Accessories | Rail / Tube | 28 | RoHS Compliant | 2000 ucd | 3V | 565 nm | 2mcd | Green | Tube | 17.78 mm | 0.70" L x 0.50" W x 0.25" H (17.74mm x 12.66mm x 6.30mm) | 6.3 mm | Module | 5 x 7 | 5 x 7 | Common Cathode Row, Common Anode Column | 569 nm | 2mcd | - | Compliant | 12 | - | - | - | - | - | - | - | - |
LTP-747C Displays Dot Matrix Module 35LED Red Row CC Column CA 12-Pin DIP LED Displays & Accessories Red, Low Current Numeric Displays Module 35LED Red Anode Column Cathode Row 12-Pin DIP LED MATRIX 5X7 0.7" ALGAAS RED lite-on | 10 | 1008: ¥12.4848 | - | LED Displays & Accessories | Rail / Tube | 28 | RoHS Compliant | 9000 ucd | 3.4V | 660 nm | 9mcd | Red | Tube | 17.22 mm | 0.70" L x 0.50" W x 0.25" H (17.74mm x 12.66mm x 6.30mm) | 6.3 mm | Module | 5 x 7 | 5 x 7 | Common Cathode Row, Common Anode Column | 638 nm | 9mcd | 12DIP | Compliant | 12 | DIP | Through Hole | DIP | - | - | - | - | - |
 LTP-747KY Displays Dot Matrix Module 35LED Amber Yellow Row CC Column CA 12-Pin DIP LED Displays & Accessories Red, Low Current LED MATRIX 5X7 0.7" AMBER-YELLOW lite-on | 10 | 1008: ¥12.444 | - | LED Displays & Accessories | Rail / Tube | 28 | RoHS Compliant | 2400 ucd | 2.05V | 595 nm | 3.4mcd | Amber | Tube | 17.22 mm | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | 6.3 mm | Module | 5 x 7 | 5 x 7 | Common Cathode Row, Common Anode Column | 592 nm | 3.4mcd | 12DIP | - | - | - | - | - | - | - | - | - | - |
LTP-747E Displays Dot Matrix Module 35LED Red Orange Row CC Column CA 12-Pin DIP LED Displays & Accessories Orange Numeric Displays Module 35LED Red Orange Anode Column Cathode Row 12-Pin DIP DISPLAY DOT MATRX ORN 0.70" 5X7 DISPLAY DOT MTRX OR-RD 0.70" 5X7 lite-on | 10 | 1008: ¥12.24 | - | LED Displays & Accessories | Rail / Tube | 28 | RoHS Compliant | 2000 ucd | 2.6V | 630 nm | 2mcd | Red Orange | Tube | 17.22 mm | 0.70" L x 0.50" W x 0.25" H (17.74mm x 12.66mm x 6.30mm) | 6.3 mm | Module | 5 x 7 | 5 x 7 | Common Cathode Row, Common Anode Column | 621 nm | 2mcd | 12DIP | Compliant | 12 | DIP | Through Hole | DIP | - | - | - | - | - |
LTP-747KA Displays Dot Matrix Module 35LED Red Orange Row CC Column CA 12-Pin DIP LED Displays & Accessories Amber LED MATRIX 5X7 0.7" RED-ORANGE lite-on | 79 | 1: ¥31.144 | - | LED Displays & Accessories | Rail / Tube | 28 | RoHS Compliant | 3400 ucd | 2.05V | 621 nm | 3.4mcd | Red | Tube | 17.22 mm | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | 6.3 mm | Module | 5 x 7 | 5 x 7 | Common Cathode Row, Common Anode Column | 615 nm | 3.4mcd | 12DIP | - | - | - | - | - | - | - | - | - | - |
LTP-747HR Displays Dot Matrix Module 35LED Hi-Eff. Red Row CC Column CA 12-Pin DIP LED Displays & Accessories Hi-Eff Red DISPLAY DOT MATRX HER 0.70" 5X7 lite-on | 10 | 1008: ¥12.24 | - | LED Displays & Accessories | Rail / Tube | 28 | RoHS Compliant | 2000 ucd | 2.6V | 635 nm | 2mcd | Red | Tube | 17.2 mm | 0.70" L x 0.50" W x 0.25" H (17.74mm x 12.66mm x 6.30mm) | 6.3 mm | Module | 5 x 7 | 5 x 7 | Common Cathode Row, Common Anode Column | - | 2mcd | 12DIP | - | - | - | - | - | - | - | - | - | - |
LTP-747KR Displays Dot Matrix Module 35LED Sup. Red Row CC Column CA 12-Pin DIP LED Displays & Accessories Red, Low Current Numeric Displays Module 35LED Sup. Red Anode Column Cathode Row 12-Pin DIP LED MATRIX 5X7 0.7" SUPER RED lite-on | 767 | 1: ¥31.144 | - | LED Displays & Accessories | Rail / Tube | 28 | RoHS Compliant | 3400 ucd | 2V | 639 nm | 3.4mcd | Sup. Red | Tube | 17.22 mm | 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm) | 6.3 mm | Module | 5 x 7 | 5 x 7 | Common Cathode Row, Common Anode Column | 631 nm | 3.4mcd | 12DIP | Compliant | 12 | DIP | Through Hole | DIP | 12.66 | Through Hole | 17.74 | 6.3 | 12 |
LTP-747Y Displays Dot Matrix Module 35LED Yellow Row CC Column CA 12-Pin LED Displays & Accessories Yellow DISPLAY DOT MATRX YLW 0.70" 5X7 lite-on | 10 | 1008: ¥12.24 | - | LED Displays & Accessories | Rail / Tube | 28 | RoHS Compliant | 2000 ucd | 3V | 585 nm | 2mcd | Yellow | Tube | 17.78 mm | 0.70" L x 0.50" W x 0.25" H (17.74mm x 12.66mm x 6.30mm) | 6.3 mm | Module | 5 x 7 | 5 x 7 | Common Cathode Row, Common Anode Column | 588 nm | 2mcd | - | - | - | - | - | - | - | - | - | - | - |
LTP-747KD Displays Dot Matrix Module 35LED Hyper Red Row CC Column CA 12-Pin DIP LED Displays & Accessories Red, Low Current DISPLAY DOT MATRX RED LC .70"5X7 lite-on | 10 | 1008: ¥12.444 | - | LED Displays & Accessories | Rail / Tube | 28 | RoHS Compliant | 1238 ucd | 2V | 650 nm | 1238µcd | Red | Tube | 17.22 mm | 0.70" L x 0.50" W x 0.25" H (17.74mm x 12.66mm x 6.30mm) | 6.3 mm | Module | 5 x 7 | 5 x 7 | Common Cathode Row, Common Anode Column | 639 nm | - | 12DIP | - | - | - | - | - | - | - | - | - | - |
