cigen-MDLS-16465

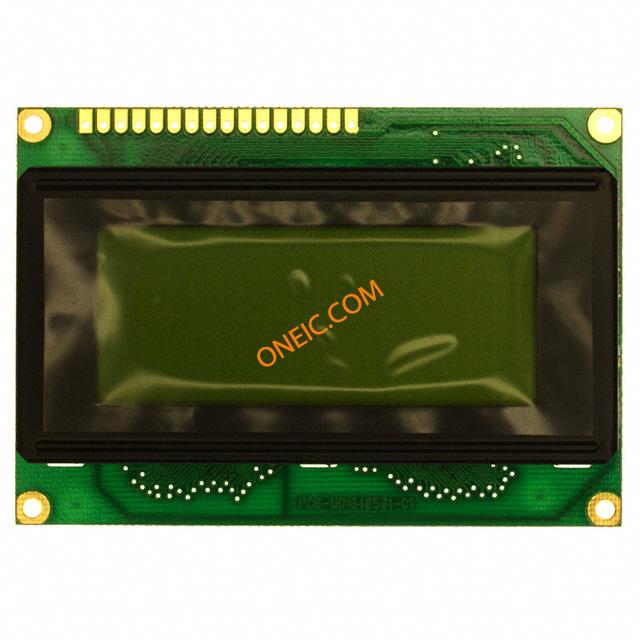

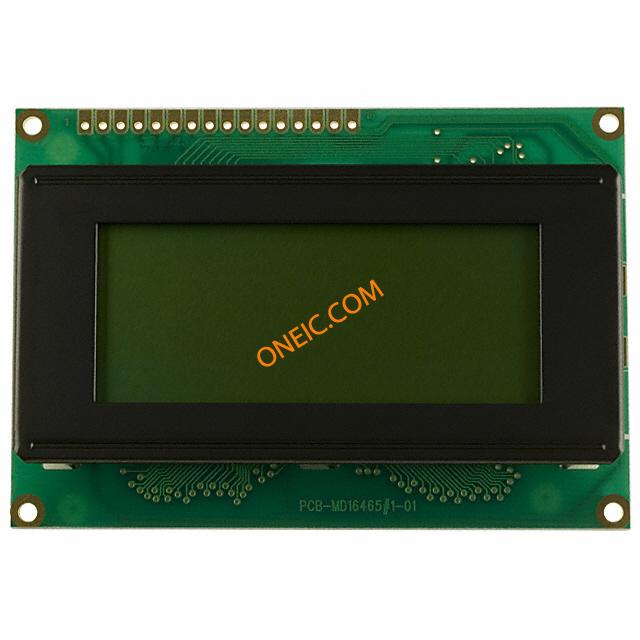

MDLS-16465 optoelectronic Series
16x4 supertwist LCD modules with optional LED backlight for character displays
The MDLS-16465 series from Varitronix International Limited is a set of 16x4 supertwist LCD modules designed for character displays. These modules come with an optional LED backlight, making them suitable for a variety of applications where clear visibility is crucial, especially in low-light conditions. If you're working on projects that require compact, readable displays in environments where ambient light might be limited, these modules are a great choice.
One thing worth noting is their supertwist technology, which provides excellent viewing angles. This means that even when the display is viewed from the side or at an angle, the characters remain legible. Engineers tend to reach for this when they need a display solution that can maintain readability across different orientations without the need for additional viewing aids.
Another practical use case is in portable devices or equipment where space is at a premium. The compact size of these modules makes them ideal for integrating into smaller form factors while still providing a readable display. They're particularly useful in medical devices, industrial controls, or any application where a small but functional display is needed.
Series Images (2)
Documents & Media
Frequently Asked Questions
MDLS-16465 optoelectronic - Part List
8 parts in total| Mfr Part # | Quantity Available | Price | Category | Display Mode | Viewing Area | Standard Package | Backlight | Interface | Display Type | Voltage - Supply | Outline L x W x H | Dot Size | Character Size | Display Format | Character Format | Number of Characters | Operating Temperature | Background Color | Product | Digits or Characters | Other Names | Product Category | Factory Pack Quantity | RoHS | LED Forward Current | Size | Packaging | Fluid Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MDLS-16465-G-LV-LED4G LCD Character Display Modules & Accessories Yl/Grn Transflective Yl/Grn LED Backlight Varitronix | 10 | 500: ¥133.892 | - | Transflective | 61.8 mm x 25.2 mm | - | - | - | - | - | - | - | - | - | - | - | - | Yellow/Green | LCD Character Display Modules | 16 x 4 | - | LCD Character Display Modules & Accessories | 5 | RoHS Compliant | LED Yellow/Green | 87 mm x 60 mm x 13 mm | Bulk | STN |
| 10 | 100: ¥237.4084 | - | Reflective | 61.80mm L x 25.20mm W | 100 | Without Backlight | Parallel | STN - Super-Twisted Nematic | 5V | 87.00mm x 60.00mm x 6.60mm | 0.55mm W x 0.55mm H | 4.75mm H x 2.95mm W | 16 x 4 | 5 x 8 Dots | 64 | -5°C ~ 50°C | - | - | - | - | - | - | - | - | - | - | - | |
| 10 | 100: ¥280.5272 | - | Reflective | 61.80mm L x 25.20mm W | 100 | LED - Green | Parallel | STN - Super-Twisted Nematic | 5V | 87.00mm x 60.00mm x 9.40mm | 0.55mm W x 0.55mm H | 4.75mm H x 2.95mm W | 16 x 4 | 5 x 8 Dots | 64 | -5°C ~ 50°C | - | - | - | - | - | - | - | - | - | - | - | |
| 0 | - | Reflective | 61.80mm L x 25.20mm W | 100 | Without Backlight | Parallel | STN - Super-Twisted Nematic | 5V | 87.00mm x 60.00mm x 6.60mm | 0.55mm W x 0.55mm H | 4.75mm H x 2.95mm W | 16 x 4 | 5 x 8 Dots | 64 | -5°C ~ 50°C | Green | - | - | 153-1083 | - | - | - | - | - | - | - | ||
| 0 | - | Transflective | 61.80mm L x 25.20mm W | 100 | LED - Green | Parallel | STN - Super-Twisted Nematic | 5V | 87.00mm x 60.00mm x 9.40mm | 0.55mm W x 0.55mm H | 4.75mm H x 2.95mm W | 16 x 4 | 5 x 8 Dots | 64 | -5°C ~ 50°C | Green | - | - | - | - | - | - | - | - | - | - | ||
| 0 | - | Reflective | 61.80mm L x 25.20mm W | 12 | Without Backlight | Parallel | STN - Super-Twisted Nematic | 5V | 87.00mm x 60.00mm x 6.60mm | 0.55mm W x 0.55mm H | 4.75mm H x 2.95mm W | 16 x 4 | 5 x 8 Dots | 64 | -5°C ~ 50°C | - | - | - | MDLS-16465-SS-LVS | - | - | - | - | - | - | - | ||
| 0 | - | Transflective | 61.80mm L x 25.20mm W | 12 | LED - Green | Parallel | STN - Super-Twisted Nematic | 5V | 87.00mm x 60.00mm x 9.40mm | 0.55mm W x 0.55mm H | 4.75mm H x 2.95mm W | 16 x 4 | 5 x 8 Dots | 64 | -5°C ~ 50°C | Green | - | - | - | - | - | - | - | - | - | - | ||
| 10 | 5: ¥314.364 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | LCD Character Display Modules | 16 x 4 | - | - | - | - | - | - | - | - |
