cigen-MDLS-20464
MDLS-20464 optoelectronic Series
20x4 character LCD modules with various backlight options
The MDLS-20464 series from Varitronix International Limited is a lineup of 20x4 character LCD modules designed for clear and versatile display applications. These modules come equipped with multiple backlight options, allowing for enhanced visibility in different lighting conditions. If you're working on projects that require a robust and easily readable display, these modules are a solid choice.
One thing worth noting is their flexibility in backlighting. The MDLS-20464 series supports both LED and CCFL backlights, which is particularly useful for outdoor or industrial applications where ambient light can vary significantly. Engineers tend to reach for this when they need a display that can operate effectively in both well-lit and dark environments.
These modules show up frequently in embedded systems, control panels, and monitoring devices where text-based information needs to be displayed clearly. For instance, they are commonly found in HVAC control units, medical equipment, and industrial machinery. Their durability and readability make them a preferred option for applications that require reliable and consistent performance under various environmental conditions.

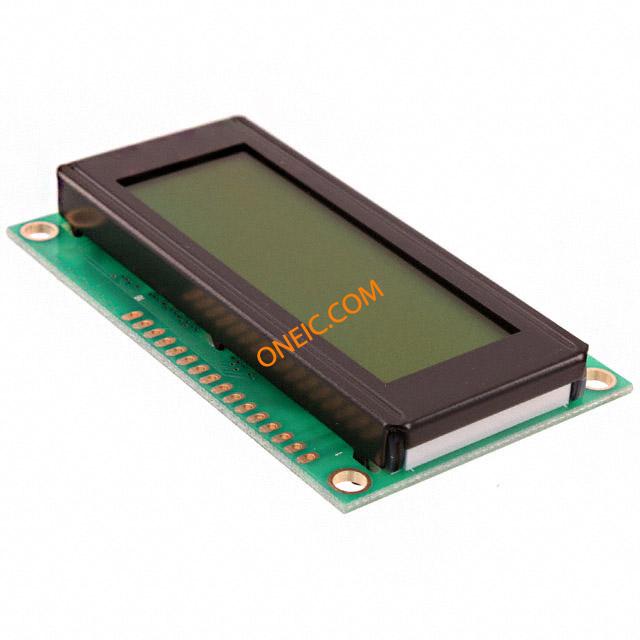

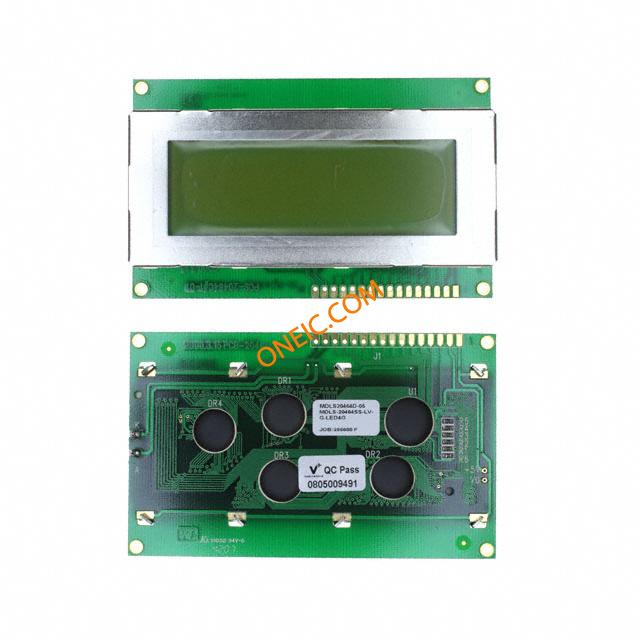

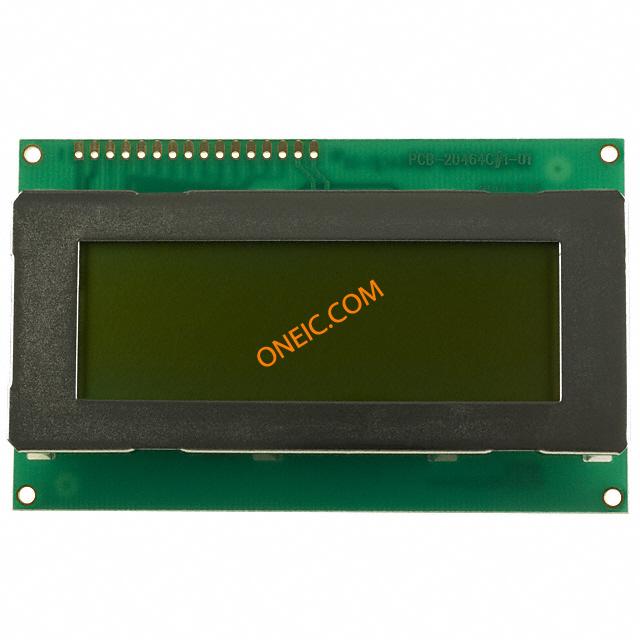

Series Images (3)
Documents & Media
Frequently Asked Questions
MDLS-20464 optoelectronic - Part List
14 parts in total| Mfr Part # | Quantity Available | Price | Category | Display Mode | Viewing Area | Standard Package | Backlight | Interface | Display Type | Outline L x W x H | Dot Size | Character Size | Display Format | Character Format | Number of Characters | Operating Temperature | Background Color | Voltage - Supply | Product | Product Category | Factory Pack Quantity | RoHS | LED Forward Current | Size | Packaging | Digits or Characters | Fluid Type | Other Names |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MDLS-20464B-G-LV-LED4G LCD Character Display Modules & Accessories Yl/Grn Transflective Yl/Grn LED Backlight Varitronix | 10 | 500: ¥132.124 | - | Transflective | 76 mm x 25.2 mm | - | - | - | - | - | - | - | - | - | - | - | Yellow/Green | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | 5 | RoHS Compliant | LED Yellow/Green | 98 mm x 60 mm x 14 mm | Bulk | 20 x 4 | STN | - |
MDLS-20464-G-LV-LED4G LCD Character Display Modules & Accessories Yl/Grn Transflective Yl/Grn LED Backlight Varitronix | 10 | 500: ¥105.74 | - | Transflective | 76 mm x 25.2 mm | - | - | - | - | - | - | - | - | - | - | - | Yellow/Green | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | 5 | RoHS Compliant | LED Yellow/Green | 98 mm x 60 mm x 14 mm | Bulk | 20 x 4 | STN | - |
MDLS-20464-FSTN-LV-LED4G LCD Character Display Modules & Accessories White Transflective Yl/Grn LED Backlight Varitronix | 10 | 500: ¥172.584 | - | Transflective | 76 mm x 25.2 mm | - | - | - | - | - | - | - | - | - | - | - | Yellow/Green | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | 5 | RoHS Compliant | LED Yellow/Green | 98 mm x 60 mm x 14 mm | Bulk | 20 x 4 | FSTN | - |
MDLS-20464-N-LV-LED4G LCD Character Display Modules & Accessories Dark Transflective Yl/Grn LED Backlight Varitronix | 10 | 500: ¥173.468 | - | Transflective | 76 mm x 25.2 mm | - | - | - | - | - | - | - | - | - | - | - | Yellow/Green | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | 100 | RoHS Compliant | LED Yellow/Green | 98 mm x 60 mm x 14 mm | Bulk | 20 x 4 | STN | - |
| 40 | 1: ¥263.16 | - | Transflective | 60.00mm L x 22.00mm W | 1 | LED - Green | Parallel | STN - Super-Twisted Nematic | 77.00mm x 47.00mm x 9.40mm | 0.42mm W x 0.46mm H | 4.03mm H x 2.30mm W | 20 x 4 | 5 x 8 Dots | 80 | -5°C ~ 50°C | Green | 4.8 V ~ 6 V | - | - | - | - | - | - | - | - | - | - | |
| 10 | 100: ¥229.6564 | - | Reflective | 76.00mm L x 25.20mm W | 100 | Without Backlight | Parallel | STN - Super-Twisted Nematic | 98.00mm x 60.00mm x 7.10mm | 0.50mm W x 0.50mm H | 4.75mm H x 2.95mm W | 20 x 4 | 5 x 8 Dots | 80 | -5°C ~ 50°C | - | 5V | - | - | - | - | - | - | - | - | - | - | |
| 10 | 100: ¥280.5272 | - | Reflective | 76.00mm L x 25.20mm W | 100 | LED - Green | Parallel | STN - Super-Twisted Nematic | 98.00mm x 60.00mm x 9.40mm | 0.50mm W x 0.50mm H | 4.70mm H x 2.90mm W | 20 x 4 | 5 x 8 Dots | 80 | -5°C ~ 50°C | - | 5V | - | - | - | - | - | - | - | - | - | - | |
| 10 | 1: ¥304.98 | - | Reflective | 76.00mm L x 25.20mm W | 1 | Without Backlight | Parallel | STN - Super-Twisted Nematic | 98.00mm x 60.00mm x 7.10mm | 0.50mm W x 0.50mm H | 4.70mm H x 2.90mm W | 20 x 4 | 5 x 8 Dots | 80 | -5°C ~ 50°C | - | - | - | - | - | - | - | - | - | - | - | Q1130426 | |
| 10 | 1: ¥377.944 | - | Transflective | 76.00mm L x 25.20mm W | 1 | LED - Green | Parallel | STN - Super-Twisted Nematic | 98.00mm x 60.00mm x 9.40mm | 0.50mm W x 0.50mm H | 4.70mm H x 2.90mm W | 20 x 4 | 5 x 8 Dots | 80 | -5°C ~ 50°C | Green | - | - | - | - | - | - | - | - | - | - | - | |
| 0 | - | Reflective | 76.00mm L x 25.20mm W | 100 | Without Backlight | Parallel | STN - Super-Twisted Nematic | 98.00mm x 60.00mm x 7.10mm | 0.50mm W x 0.50mm H | 4.70mm H x 2.90mm W | 20 x 4 | 5 x 8 Dots | 80 | -5°C ~ 50°C | Green | 5V | - | - | - | - | - | - | - | - | - | 153-1086 | ||
| 0 | - | Transflective | 76.00mm L x 25.20mm W | 100 | LED - Green | Parallel | STN - Super-Twisted Nematic | 98.00mm x 60.00mm x 9.40mm | 0.50mm W x 0.50mm H | 4.70mm H x 2.90mm W | 20 x 4 | 5 x 8 Dots | 80 | -5°C ~ 50°C | Green | 5V | - | - | - | - | - | - | - | - | - | - | ||
| 0 | - | Reflective | 76.00mm L x 25.20mm W | 12 | Without Backlight | Parallel | STN - Super-Twisted Nematic | 98.00mm x 60.00mm x 6.60mm | 0.50mm W x 0.50mm H | 4.70mm H x 2.90mm W | 20 x 4 | 5 x 8 Dots | 80 | -5°C ~ 50°C | - | 5V | - | - | - | - | - | - | - | - | - | MDLS-20464-SS-LVS | ||
| 0 | - | Transflective | 76.00mm L x 25.20mm W | 12 | LED - Green | Parallel | STN - Super-Twisted Nematic | 98.00mm x 60.00mm x 9.40mm | 0.50mm W x 0.50mm H | 4.70mm H x 2.90mm W | 20 x 4 | 5 x 8 Dots | 80 | -5°C ~ 50°C | Green | 5V | - | - | - | - | - | - | - | - | - | - | ||
| 0 | - | Reflective | 76.00mm L x 25.20mm W | 1 | Without Backlight | Parallel | STN - Super-Twisted Nematic | 98.00mm x 60.00mm x 7.10mm | 0.50mm W x 0.50mm H | 4.70mm H x 2.90mm W | 20 x 4 | 5 x 8 Dots | 80 | -5°C ~ 50°C | - | 5V | - | - | - | - | - | - | - | - | - | 153-1127 |
