MDLS-81809 optoelectronic Series
SuperTwist LCD character display modules with optional LED backlight
The MDLS-81809 series from Varitronix International Limited is a lineup of SuperTwist LCD character displays with the option for an LED backlight. These modules are designed for applications requiring clear text displays in environments with varying lighting conditions. If you're working on projects that need robust, reliable text-based information to be displayed in industrial settings, these displays are a great fit. One thing worth noting is their ability to maintain readability under harsh conditions, thanks to the SuperTwist technology which reduces viewing angle issues common in standard LCDs. Engineers tend to reach for this when they need a display that can operate reliably in environments with significant ambient light or where visibility is crucial. Another practical use case is in control panels and machinery interfaces where clear, legible text is essential for operation and diagnostics. The optional LED backlight adds another layer of functionality, allowing for better visibility in low-light scenarios without relying solely on ambient lighting. Overall, the MDLS-81809 series provides a solid solution for applications demanding high reliability and clear text display.

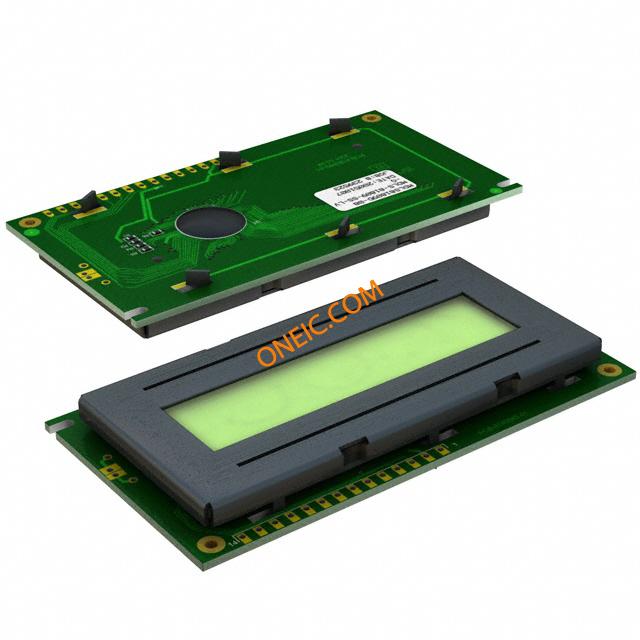

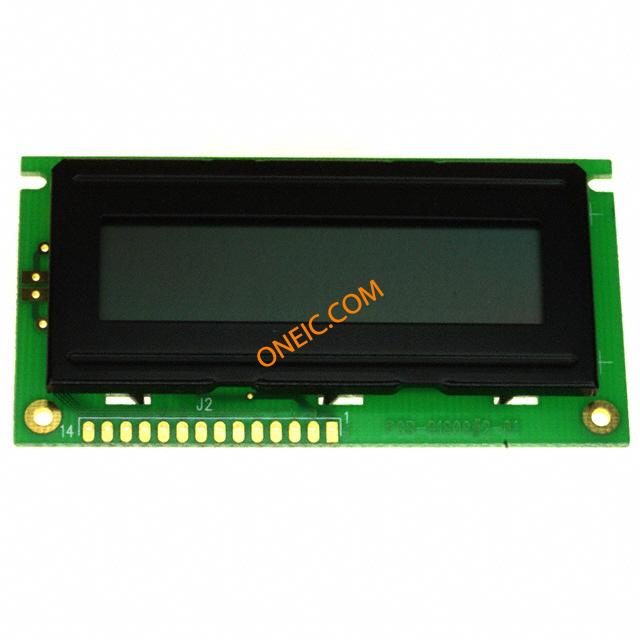

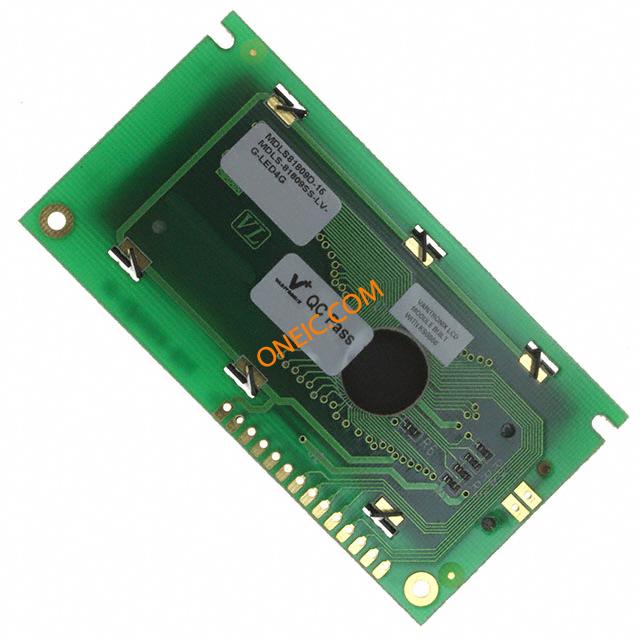

Series Images (3)
Documents & Media
Frequently Asked Questions
MDLS-81809 optoelectronic - Part List
8 parts in total| Mfr Part # | Quantity Available | Price | Category | Viewing Area | Display Mode | Standard Package | Backlight | Interface | Display Type | Voltage - Supply | Outline L x W x H | Dot Size | Character Size | Display Format | Character Format | Number of Characters | Operating Temperature | Background Color | Product | RoHS | Size | Digits or Characters | Product Category | Packaging | Text Color | Other Names | Factory Pack Quantity | Fluid Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 500: ¥74.256 | - | 61 mm x 15.8 mm | Transflective | - | - | - | - | - | - | - | - | - | - | - | - | Yellow/Green | LCD Character Display Modules | RoHS Compliant | 84 mm x 44 mm x 11.5 mm | 8 x 1 | LCD Character Display Modules & Accessories | Bulk | - | - | 10 | STN | |
MDLS-81809D-115 LCD Character Display Modules & Accessories Grn Transflective Grn LED Backlight Varitronix | 10 | 500: ¥91.868 | - | 61 mm x 15.8 mm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | LCD Character Display Modules | RoHS Compliant | 84 mm x 44 mm x 11.5 mm | 8 x 1 | LCD Character Display Modules & Accessories | - | - | - | - | - |
| 10 | 100: ¥121.278 | - | 61.00mm L x 15.80mm W | Reflective | 100 | LED - Green | Parallel | STN - Super-Twisted Nematic | 5V | 84.00mm x 44.00mm x 6.80mm | 1.25mm W x 1.30mm H | 10.75mm H x 6.45mm W | 8 x 1 | 5 x 8 Dots | 8 | -5°C ~ 50°C | Green | - | - | - | - | - | - | Black | - | - | - | |
| 10 | 100: ¥168.1164 | - | 61.00mm L x 15.80mm W | Transflective | 100 | LED - Green | Parallel | STN - Super-Twisted Nematic | 5V | 84.00mm x 44.00mm x 11.00mm | 1.25mm W x 1.30mm H | 10.75mm H x 6.45mm W | 8 x 1 | 5 x 8 Dots | 8 | -5°C ~ 50°C | Green | - | - | - | - | - | - | Black | - | - | - | |
| 0 | - | 61.00mm L x 15.80mm W | Reflective | 100 | Without Backlight | Parallel | STN - Super-Twisted Nematic | 5V | 80.00mm x 36.00mm x 6.80mm | 1.25mm W x 1.30mm H | 10.75mm H x 6.45mm W | 8 x 1 | 5 x 8 Dots | 8 | -5°C ~ 50°C | - | - | - | - | - | - | - | - | 153-1080 | - | - | ||
| 0 | - | 61.00mm L x 15.80mm W | Transflective | 100 | LED - Green | Parallel | STN - Super-Twisted Nematic | 5V | 84.00mm x 44.00mm x 11.00mm | 1.25mm W x 1.30mm H | 10.75mm H x 6.45mm W | 8 x 1 | 5 x 8 Dots | 8 | -5°C ~ 50°C | - | - | - | - | - | - | - | - | - | - | - | ||
| 0 | - | 61.00mm L x 15.80mm W | Reflective | 20 | Without Backlight | Parallel | STN - Super-Twisted Nematic | 5V | 84.00mm x 44.00mm x 6.80mm | 1.25mm W x 1.30mm H | 10.75mm H x 6.45mm W | 8 x 1 | 5 x 8 Dots | 8 | -5°C ~ 50°C | Green | - | - | - | - | - | - | - | MDLS-81809-SS-LVS | - | - | ||
| 10 | 500: ¥101.66 | - | 61 mm x 15.8 mm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | LCD Character Display Modules | RoHS Compliant | 84 mm x 44 mm x 15 mm | 8 x 1 | - | Bulk | - | - | - | - |
