cigen-MIT40
MIT40 test & measurement Series
Handheld insulation testers with selectable voltage for electrical safety testing
The MIT40 series from Megger Group Limited is a lineup of handheld insulation testers designed for electrical safety testing. These devices offer selectable voltage outputs, allowing users to choose the appropriate voltage level for their specific testing needs. If you're working on anything involving electrical installations, maintenance, or commissioning, these testers are invaluable tools.
One thing worth noting is the versatility they bring to the table. With the ability to select different voltage levels, engineers can adapt the tester to various scenarios without needing multiple devices. This feature saves both time and money, especially in field conditions where space and weight are considerations. Additionally, the handheld design makes them easy to transport and use in tight spaces, which is crucial during site inspections and maintenance tasks.
Another practical aspect is the built-in safety features. Many models in this series include overvoltage protection and automatic shutdown mechanisms, ensuring that users remain safe even if they accidentally apply too much voltage. This is particularly important in environments where electrical hazards are prevalent.
Overall, the MIT40 series is a go-to choice for anyone dealing with electrical safety testing, offering a balance between functionality, portability, and safety.
Series Images (6)
Documents & Media
Frequently Asked Questions
MIT40 test & measurement - Part List
3 parts in total| Mfr Part # | Quantity Available | Price | Category | Safety Category | Display Type | Voltage - Test | Voltage - Supply | Insulation Resistance | Width | Height | Length | Weight | Size / Dimension | Operating Temperature | RoHS | Current - Output | Plug Type | Calibration | Model Number | Battery Chemistry | Other Specifications | Battery Life | Safety Outputs and Type | Current - Test | Voltage - Supply (Min) | Voltage - Protection Level (VP) (2416) | Operating Force | Type | Part Number | For Use With/Related Products | Connector Type | Input Signal | Power - Input | Frequency - Max | Resistance (Ohms) | Contact Voltage (Max) | Voltage - Limiting (Max) | Current - Short Circuit (Isc) | Size | Insulation | Series | Display Style | Functions, Extra | Measurement Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MIT400 UKAS(5353113) MIT400 Insulation Tester RSCAL(5353113) MIT400 Insulation Tester Megger MIT400 Insulation tester Megger | 17 | 1: ¥3,441.14 | - | CAT IV 600 V | Digital | 1000V dc | Battery | 20GΩ | 178mm | 89mm | 456mm | 1.75kg | 456 x 178 x 89mm | +55°C | Not Applicable | 20 mA, 200 mA | Type G - British 3-pin | UKAS | MIT400 | AA | Insulation & Continuity Tester | 2200 5-Second Tests | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

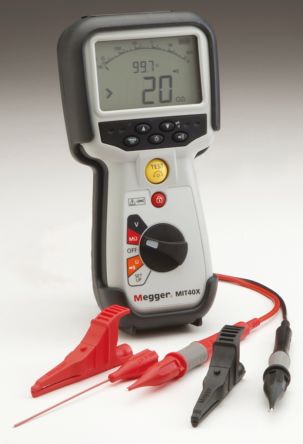

MIT40X MIT40X Insulation tester RSCAL(6111314) MIT40X INSULATION TESTER UKAS(6111314) MIT40X INSULATION TESTER Megger 绝缘测试仪, 20GΩ, 100V, 20 mA, 200 mA, CAT IV 600 V Megger | 11 | 1: ¥4,939.86 | - | CAT IV 600 V | Digital | 100V | Battery | 20GΩ | 178mm | 89mm | 456mm | 1.75kg | 456 x 178 x 89mm | +55°C | Not Applicable | 20 mA, 200 mA | Type G - British 3-pin | RSCAL | MIT40X | AA | Insulation & Continuity Tester | 2200 5-Second Tests | CAT IV 600 V | 20 mA, 200 mA | 10V | 600V | 2200 5 秒测试 | AA | MIT40X | 绝缘和断通测试仪 | G 型 - 英国 3 脚 | - | - | - | - | - | - | - | - | - | - | - | - | - |

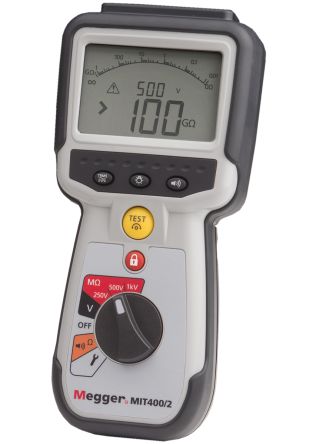

MIT400/2 Insulation tester 200 GOhm 250 V / 500 V / 1000 V 600 VAC TRMS AC, MIT400/2, Megger Megger MIT400 2 绝缘测试仪, 20GΩ, 1000V, 205mA, CAT IV 600 V Megger | 10 | 1: ¥4,522.00 | - | CAT IV 600 V | 模拟,双数字 | 1000 V | 电池 | 20GΩ | 50mm | 220mm | 92mm | 0.6 | 92 x 50 x 220mm | -20°C | - | - | - | - | - | - | - | - | CAT IV 600 V | 205mA | 10V | IP 54 | 2200(断开)测试 @ 55 s,3000(接通)测试 @ 5 s | 碱性 | MIT400 2 | Battery | - | Continuity tester | 5 x LR6/AA | 400 | 1 | 600 | 600 | 2 mA | 228 x 108 x 63 mm | 200 | MIT400 Series | LCD | Analogue bargraph | TRMS AC |
