cigen-NBN40-L2-A
NBN40-L2-A Series
PNP inductive proximity sensors with 40mm range, IP69K rating

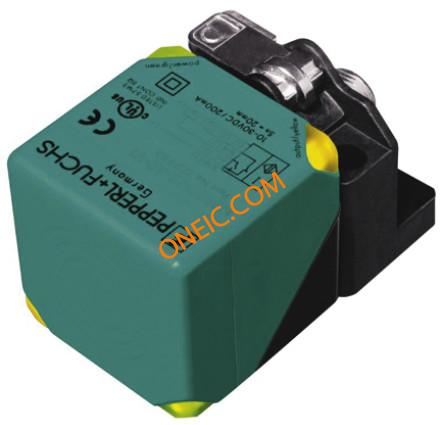

The NBN40-L2-A from Pepperl+Fuchs is a PNP inductive proximity sensor designed for detecting ferrous and non-ferrous metals within a 40mm range. These sensors boast an IP69K rating, making them highly resistant to dust, water, and extreme temperatures, which is crucial for harsh industrial environments. If you're working on projects that require robust sensing in dirty or wet conditions, these sensors are a solid choice.
One thing worth noting is their reliability in detecting small objects, even at close ranges. Engineers tend to reach for this when they need precise metal detection without the complexity of optical sensors. Another practical benefit is their ability to operate effectively in noisy environments, thanks to their immunity to electromagnetic interference. This makes them ideal for machinery with strong magnetic fields or high electrical noise levels. Overall, the NBN40-L2-A is a dependable solution for applications requiring both precision and durability in challenging industrial settings.
Series Images (3)
Frequently Asked Questions
NBN40-L2-A - Part List
3 parts in total| Mfr Part # | Quantity Available | Price | Category | Protection Features | Output Type | Sensor Type | Voltage Rating | Frequency - Max | Voltage - Supply | Current - Switching | Overload Protection | Current Rating (Max) | Frequency - Switching | Reverse Polarity Protection | Voltage - DC Spark Over (Nom) | Current - Short Circuit Rating (SCCR) | Depth | Width | Length | Weight | Size - Body | Thread Size | Mounting Type | Terminal Type | Connector Type | Housing Material | Size / Dimension | Number of Positions | Supplier Device Package | Style | Measuring Range | Number of Units | Connection Method | Output Configuration | Seal Rating | Operating Range | Ingress Protection | Detection Capability | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NBN40-L2-A2-V1 40mm PNP Block, M12 x 1, 200mA, 10 to 30V dc, IP69K Sensor,Proximity,Inductive,DC Sensor: inductive; Range:0÷40mm; Output conf: PNP / NO + NC Pepperl + Fuchs PNP 电感式传感器 40 mm Detection Range, 块状 40mm length, 10 → 30 V 直流, IP69K Pepperl + Fuchs | 18 | 1: ¥550.732 | - | Yes | PNP | inductive | 30V | 150Hz | 10 → 30 V dc | 200 mA | 是 | 200mA | 0 → 100 Hz | 是 | 30V | Yes | 67mm | 40mm | 40mm | 1 g | 40 x 40 x 67mm | M12 x 1 | Non Flush | 4-Pin M12 Connector | 4 引脚 M12 连接器 | PA | 40 x 40 x 67 mm | 4 | Block | 块状 | 0...0.04m | 1 | connector M12 | PNP / NO + NC | IP69K | 40 mm | IP69K | 40 mm | +85°C |
NBN40-L2-A2-V1-3G-3D XX3GXX3D Pepperl + Fuchs | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
NBN40-L2-A0-V1-M Pepperl + Fuchs | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
