cigen-NHD-0216B
NHD-0216B optoelectronic Series
STN LCD character display modules, 16x2 lines, reflective and transflective types
The NHD-0216B series from Newhaven Display International, Inc., comprises STN LCD character display modules, featuring 16x2 lines of text. These displays come in both reflective and transflective varieties, making them versatile for various applications. Reflective displays are ideal for bright environments, where they can be read easily without backlighting, which is great for outdoor or sunlight-readable interfaces. Transflective displays offer the best of both worlds by combining reflective and transmissive capabilities, making them suitable for use in dimly lit indoor settings as well as outdoors.
If you're working on projects that require simple, text-based interfaces for industrial controls, measurement instruments, or any device needing a clear, readable display, these modules are a solid choice. One thing worth noting is their robustness in harsh environments; they often perform well in conditions where other displays might struggle. Engineers tend to reach for this when they need a reliable, low-power solution that can handle a wide range of lighting conditions without compromising readability.
Series Images (10)
Documents & Media
Frequently Asked Questions
NHD-0216B optoelectronic - Part List
7 parts in total| Mfr Part # | Quantity Available | Price | Category | Product | Product Category | RoHS | LED Forward Current | Size | Background Color | Display Mode | Digits or Characters | Fluid Type | Standard Package | Factory Pack Quantity | Backlight | Interface | Display Type | Voltage - Supply | Text Color | Outline L x W x H | Dot Size | Viewing Area | Character Size | Display Format | Character Format | Number of Characters | Operating Temperature | Packaging | Other Names | Mechanical Life | Series | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NHD-0216BZ-RN-YBW LCD Character Display Modules & Accessories STN- Y/G Refl 84.0 x 44.0 LCD MOD CHAR 2X16 NO REFL Character Module STN Reflective 16Char x 2Line 16-Pin Newhaven Display | 200 | 10: ¥72.4758 | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | RoHS Compliant | None | 84 mm x 44 mm x 9 mm | Yellow/Green | Reflective | 16 x 2 | STN Positive | 50 | 50 | Without Backlight | Parallel | STN - Super-Twisted Nematic | 5 V | Gray | 84.00mm x 44.00mm x 9.00mm | 0.56mm W x 0.61mm H | 64.5 mm x 16.4 mm | 5.23mm H x 3.00mm W | 16 x 2 | 5 x 8 Dots | 32 | - 20 C to + 70 C | Bulk | NHD0216BZRNYBW | - | - | - |

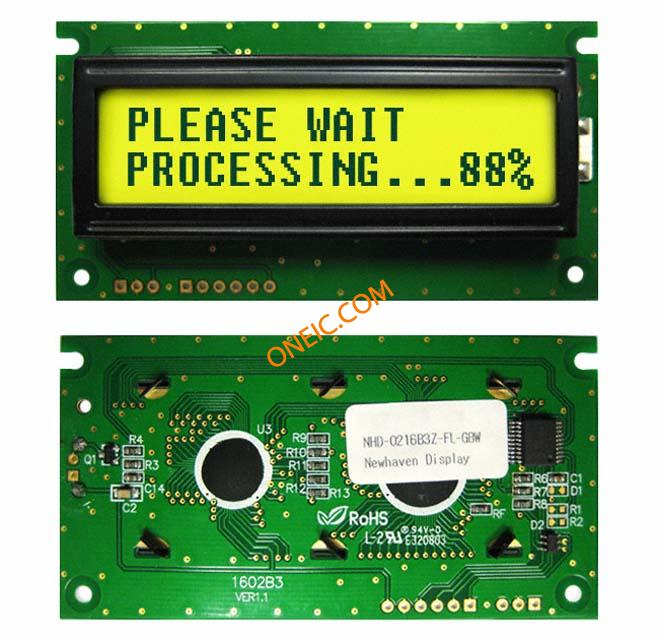

NHD-0216B3Z-FL-GBW LCD Character Display Modules & Accessories 2 x 16 STN-GRAY 84.0 x 44.0 Character Module STN Transflective 16Char x 2Line 14-Pin Newhaven Display | 10 | 1: ¥116.144 | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | RoHS Compliant | LED Yellow/Green | 84 mm x 44 mm x 13.5 mm | Gray | Transflective | 16 x 2 | STN | - | 100 | - | - | - | - | - | - | - | - | - | - | - | - | - | Bulk | - | Obsolete | - | - |
NHD-0216BZ-FL-YBW LCD Character Display Modules & Accessories STN- Y/G Transfl 84.0 x 44.0 LCD MOD CHAR 2X16 Y/G TRANSFL Character Module STN Transflective 16Char x 2Line 16-Pin Newhaven Display | 431 | 1: ¥45.152 | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | RoHS Compliant | LED Yellow/Green | 84 mm x 44 mm x 13.5 mm | Yellow/Green | Transflective | 16 x 2 | STN | 50 | 50 | LED - Yellow/Green | Parallel | STN - Super-Twisted Nematic | 5 V | Gray | 84.00mm x 44.00mm x 13.50mm | 0.56mm W x 0.61mm H | 64.50mm L x 16.40mm W | 5.23mm H x 3.00mm W | 16 x 2 | 5 x 8 Dots | 32 | - 20 C to + 70 C | Bulk | NHD0216BZFLYBW | - | - | - |

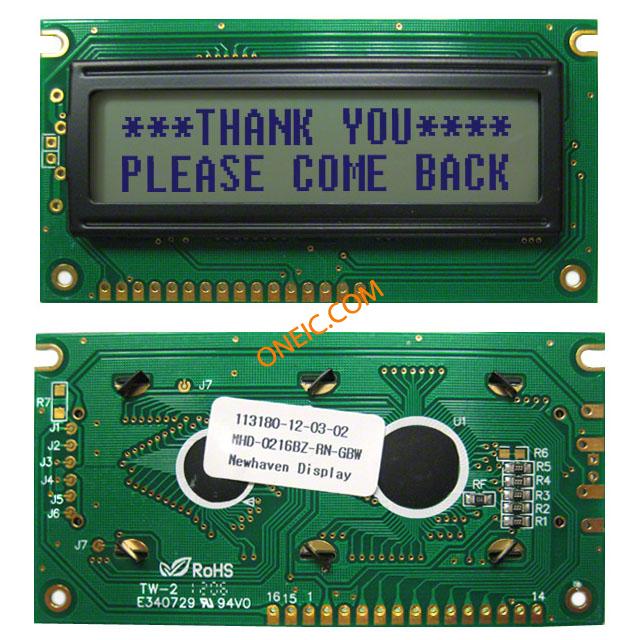

NHD-0216BZ-RN-GBW LCD Character Display Modules & Accessories STN- GRAY Refl 84.0 x 44.0 LCD MOD CHAR 2X16 GRY TRANSFL Newhaven Display | 100 | 1: ¥37.128 | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | RoHS Compliant | None | 84 mm x 44 mm x 9 mm | None | Reflective | 16 x 2 | STN Positive | 100 | 50 | Without Backlight | Parallel | STN - Super-Twisted Nematic | 5 V | Blue | 84.00mm x 44.00mm x 9.00mm | 0.56mm W x 0.61mm H | 64.5 mm x 16.4 mm | 5.23mm H x 3.00mm W | 16 x 2 | 5 x 8 Dots | 32 | - 20 C to + 70 C | - | - | - | NHD-0216 | Built-in Controller ST7066U or SPLC780D |

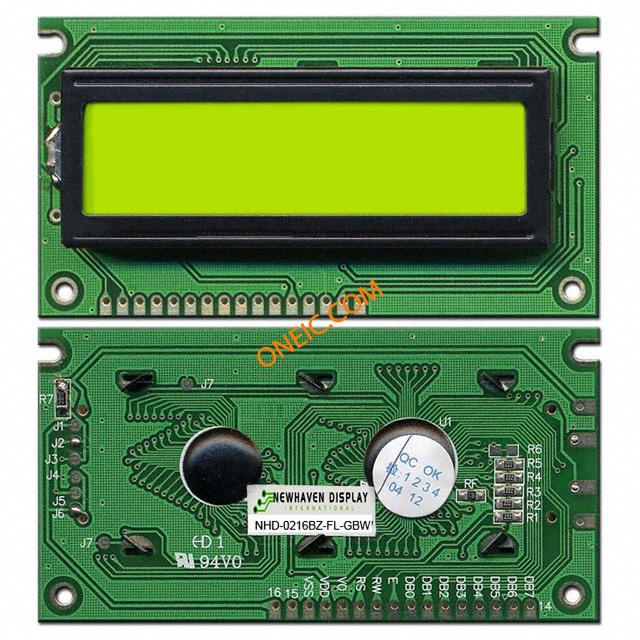

NHD-0216BZ-FL-GBW LCD Character Display Modules & Accessories STN- GRAY Transfl 84.0 x 44.0 LCD MOD CHAR 2X16 Y/G TRANSFL Newhaven Display | 0 | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | RoHS Compliant | LED Yellow/Green | 84 mm x 44 mm x 13.5 mm | Gray | Transflective | 16 x 2 | STN | 50 | 50 | LED - Yellow/Green | Parallel | STN - Super-Twisted Nematic | 5 V | Gray | 84.00mm x 44.00mm x 13.50mm | 0.56mm W x 0.61mm H | 64.50mm L x 16.40mm W | 5.23mm H x 3.00mm W | 16 x 2 | 5 x 8 Dots | 32 | - 20 C to + 70 C | Bulk | - | Obsolete | - | - | |
NHD-0216B3Z-FL-GBW-V3 LCD MOD SER CHAR 2X16 Y/G TRANSF LCD Character Display Modules & Accessories 2 x 16 STN-GRAY 84.0 x 44.0 Newhaven Display Intl | 104 | 1: ¥97.308 | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | RoHS Compliant | LED Yellow/Green | 84 mm x 44 mm x 13.5 mm | Green | Transflective | 16 x 2 | STN Positive | 100 | - | LED - Yellow/Green | I²C, RS232, SPI | STN - Super-Twisted Nematic | 4.7 V ~ 5.5 V | Black | 84.00mm x 44.00mm x 13.50mm | 0.56mm W x 0.61mm H | 64.50mm L x 16.40mm W | 5.23mm H x 3.00mm W | 16 x 2 | 5 x 8 Dots | 32 | -20°C ~ 70°C | - | - | - | B3Z | - |
NHD-0216B3Z-FL-GBW-V2-RC LCD Character Display Modules & Accessories 2x16 Serial liquid Transflective YelGrn Newhaven Display | 10 | 28: ¥210.12 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
