NHD-0216HZ optoelectronic Series
STN LCD character display modules, 2x16 lines, transflective, various colors
The NHD-0216HZ series from Newhaven Display International, Inc., consists of STN (Super Twisted Nematic) LCD character display modules with 2x16 lines and transflective technology. These displays come in various color options, making them versatile for a range of applications. If you're working on projects that require a readable display in both indoor and outdoor environments—where ambient light conditions might vary widely—these modules are a great choice. One thing worth noting is their robust performance under bright sunlight; the transflective nature allows for clear visibility even when backlit LEDs are dimmed or turned off. Engineers tend to reach for this type of module when they need a reliable, cost-effective solution for embedded systems, such as industrial control panels, medical devices, or automotive interfaces. The ability to choose from different colors also adds a layer of customization, which can be crucial for branding or aesthetic purposes in consumer electronics.
Series Images (7)
Documents & Media
Frequently Asked Questions
NHD-0216HZ optoelectronic - Part List
8 parts in total| Mfr Part # | Quantity Available | Price | Category | Product | Product Category | RoHS | Voltage - Supply | LED Forward Current | Size | Packaging | Background Color | Display Mode | Digits or Characters | Fluid Type | Operating Temperature | Standard Package | Backlight | Interface | Display Type | Outline L x W x H | Dot Size | Viewing Area | Character Size | Display Format | Character Format | Number of Characters | Factory Pack Quantity | Text Color | Mechanical Life | Features | Other Names |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

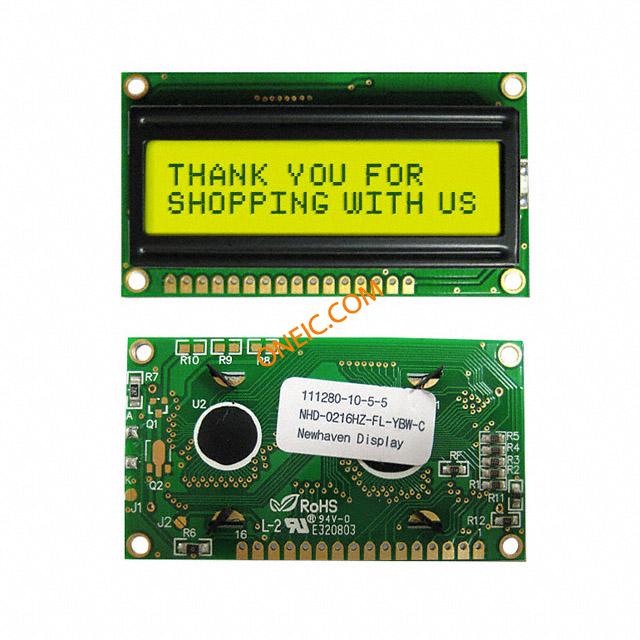

NHD-0216HZ-FL-YBW-C LCD Character Display Modules & Accessories STN- Y/G Transfl 65.5 x 36.7 LCD MOD CHAR 2X16 Y/G TRANSFL Character Module STN Transflective 16Char x 2Line 16-Pin Newhaven Display | 95 | 1: ¥46.58 | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | RoHS Compliant | 5 V | LED Yellow/Green | 65.5 mm x 36.7 mm x 13.5 mm | Bulk | Yellow/Green | Transflective | 16 x 2 | STN | - 20 C to + 70 C | 100 | LED - Yellow/Green | Parallel | STN - Super-Twisted Nematic | 65.50mm x 36.70mm x 15.00mm | 0.47mm W x 0.58mm H | 54.00mm L x 14.40mm W | 4.99mm H x 2.55mm W | 16 x 2 | 5 x 8 Dots | 32 | 50 | Gray | - | Built-in Temp Comp Circuit | - |

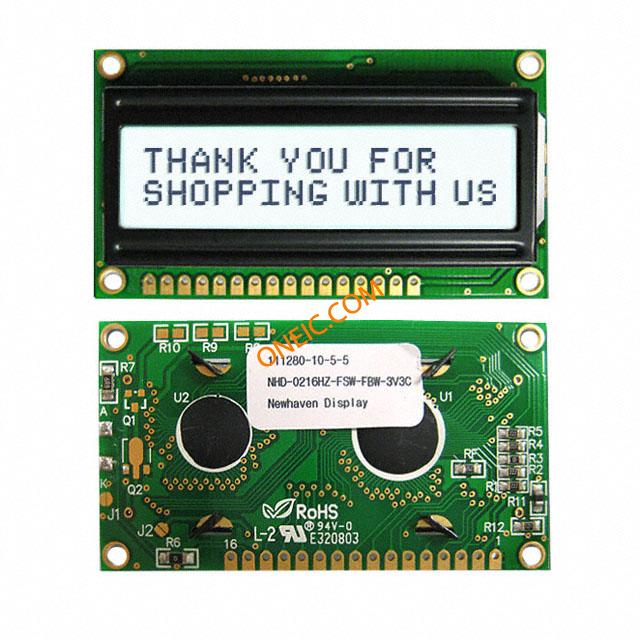

NHD-0216HZ-FSW-FBW-3V3C LCD Character Display Modules & Accessories STN Gray Tranf 65.5 x 36.7 LCD MOD CHAR 2X16 TRANSFL Newhaven Display | 0 | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | RoHS Compliant | 3 V | Side LED White | 65.5 mm x 36.7 mm x 13.5 mm | Bulk | White | Transflective | 16 x 2 | FSTN Positive | - 20 C to + 70 C | 50 | LED - White | Parallel | FSTN - Film Super-Twisted Nematic | 65.50mm x 36.70mm x 13.50mm | 0.47mm W x 0.58mm H | 54 mm x 14.4 mm | 4.99mm H x 2.55mm W | 16 x 2 | 5 x 8 Dots | 32 | - | Gray | Obsolete | - | - | |
NHD-0216HZ-FSW-GBW-3V3C LCD Character Display Modules & Accessories STN- GRAY Transfl 65.5 x 36.7 Newhaven Display | 0 | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | RoHS Compliant | 3 V | Side LED White | 65.5 mm x 36.7 mm x 14 mm | Bulk | White | Transflective | 16 x 2 | FSTN Positive | - 20 C to + 70 C | - | - | - | - | - | - | - | - | - | - | - | - | - | Obsolete | - | - | |
NHD-0216HZ-FL-YBW LCD Character Display Modules & Accessories 2 x 16 STN-Y/G 65.5 x 36.7 LCD MOD CHAR 2X16 Y/G TRANSFL Newhaven Display | 0 | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | RoHS Compliant | 5 V | LED Yellow/Green | 65.5 mm x 36.7 mm x 13.5 mm | Bulk | Yellow/Green | Transflective | 16 x 2 | STN | - 20 C to + 70 C | 50 | LED - Yellow/Green | Parallel | STN - Super-Twisted Nematic | 65.50mm x 36.70mm x 13.50mm | 0.47mm W x 0.58mm H | 54.00mm L x 14.40mm W | 4.99mm H x 2.55mm W | 16 x 2 | 5 x 8 Dots | 32 | 50 | Gray | Obsolete | - | - | |
NHD-0216HZ-FL-GBW LCD Character Display Modules & Accessories 2 x 16 STN-GRAY 65.5 x 36.7 LCD MOD CHAR 2X16 Y/G TRANSFL Newhaven Display | 0 | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | RoHS Compliant | 5 V | LED Yellow/Green | 65.5 mm x 36.7 mm x 13.5 mm | Bulk | Gray | Transflective | 16 x 2 | STN | - 20 C to + 70 C | 50 | LED - Yellow/Green | Parallel | STN - Super-Twisted Nematic | 65.50mm x 36.70mm x 13.50mm | 0.47mm W x 0.58mm H | 54.00mm L x 14.40mm W | 4.99mm H x 2.55mm W | 16 x 2 | 5 x 8 Dots | 32 | 50 | - | Obsolete | - | - | |

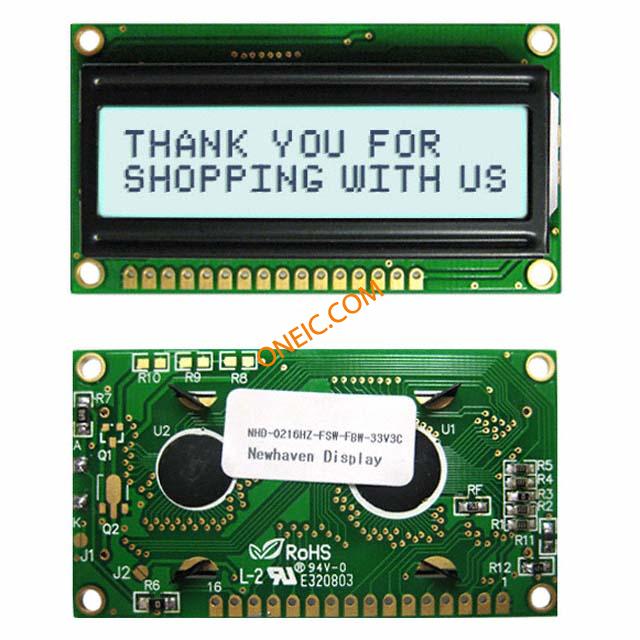

NHD-0216HZ-FSW-FBW-33V3C LCD MOD CHAR 2X16 TRANSFL FSTN+ LCD Character Display Modules & Accessories FSTN-Wht Transfl 65.5 x 36.7 Newhaven Display Intl | 85 | 5: ¥132.2906 | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | RoHS Compliant | 3.3V | Side LED White | 65.5 mm x 36.7 mm x 15 mm | Bulk | White | Transflective | 16 x 2 | FSTN Positive | -20°C ~ 70°C | 100 | LED - White | Parallel | FSTN - Film Super-Twisted Nematic | 65.50mm x 36.70mm x 15.00mm | 0.47mm W x 0.58mm H | 54.00mm L x 14.40mm W | 4.99mm H x 2.55mm W | 16 x 2 | 5 x 8 Dots | 32 | 100 | Gray | - | Built-in controller ST7066U | NHD0216HZFSWFBW33V3C |
| 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
| 100 | 1: ¥158.236 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
