cigen-NHD-0220FZ

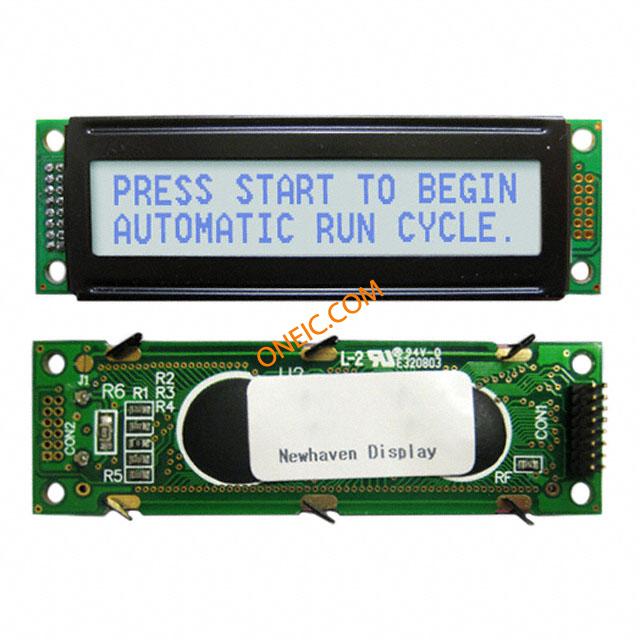

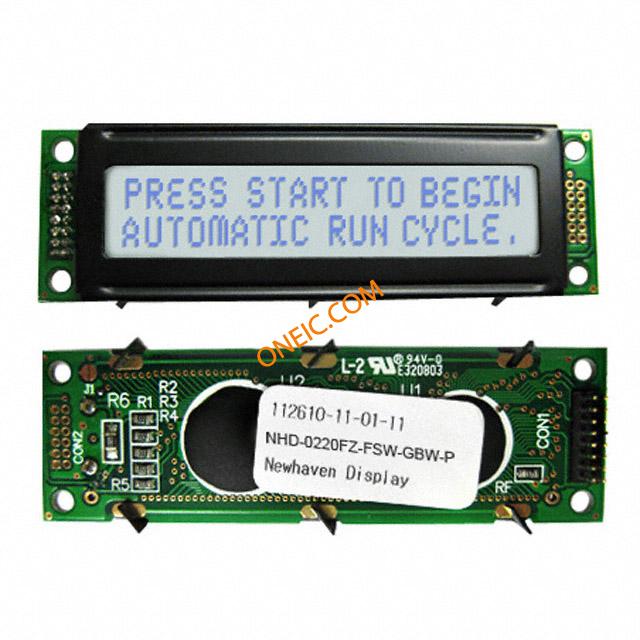

NHD-0220FZ optoelectronic Series
2x20 character LCD displays with transflective STN technology
The NHD-0220FZ series from Newhaven Display International, Inc., comprises 2x20 character LCD displays utilizing transflective STN technology. These displays are perfect for projects requiring a balance between readability and cost-effectiveness. If you're working on portable devices that need to function well under various lighting conditions, these displays are a solid choice. The transflective nature allows them to be read clearly both in bright sunlight and dimly lit environments, which is particularly useful in outdoor applications or situations where the display might be used in low-light conditions.
One thing worth noting is their durability and reliability. Engineers tend to reach for these displays when they need something robust and dependable, especially in industrial settings or consumer electronics where the display needs to withstand a bit of abuse. The STN technology provides good contrast and clarity, making text and numbers easy to read even in challenging lighting scenarios. Additionally, the compact size makes them ideal for space-constrained designs, fitting seamlessly into a variety of product enclosures without taking up too much room.
Series Images (7)
Documents & Media
Frequently Asked Questions
NHD-0220FZ optoelectronic - Part List
6 parts in total| Mfr Part # | Quantity Available | Price | Category | Product | Product Category | RoHS | Voltage - Supply | LED Forward Current | Size | Packaging | Background Color | Display Mode | Digits or Characters | Fluid Type | Operating Temperature | Standard Package | Backlight | Interface | Display Type | Text Color | Outline L x W x H | Dot Size | Viewing Area | Character Size | Display Format | Character Format | Number of Characters | Mechanical Life | Features | Factory Pack Quantity | Series | Other Names |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NHD-0220FZ-FSW-GBW-P-3V3 LCD Character Display Modules & Accessories STN- GRAY Transfl 65.0 x 20.0 LCD MOD CHAR 2X20 TRANSFL Newhaven Display | 27 | 1: ¥78.589 | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | RoHS Compliant | 3.3 V | Side LED White | 65 mm x 20 mm x 8 mm | Bulk | Gray | Transflective | 20 x 2 | STN Positive | - 20 C to + 70 C | 50 | LED - White | Parallel | STN - Super-Twisted Nematic | Gray | 65.00mm x 20.00mm x 8.00mm | 0.33mm W x 0.36mm H | 46 mm x 10.8 mm | 3.23mm H x 1.85mm W | 20 x 2 | 5 x 8 Dots | 40 | Obsolete | - | - | - | - |
NHD-0220FZ-FSW-GBW-P LCD Character Display Modules & Accessories STN-Gray Transfl 65.0 x 20.0 5V LCD MOD CHAR 2X20 WHI TRANSFL Newhaven Display | 182 | 1: ¥48.688 | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | RoHS Compliant | 5 V | Side LED White | 65 mm x 20 mm x 8 mm | Bulk | White | Transflective | 20 x 2 | STN Positive | - 20 C to + 70 C | 100 | LED - White | Parallel | STN - Super-Twisted Nematic | Gray | 65.00mm x 20.00mm x 8.00mm | 0.33mm W x 0.36mm H | 46 mm x 14.5 mm | 3.23mm H x 1.85mm W | 20 x 2 | 5 x 8 Dots | 40 | - | Built-in controller ST7066U/SPLC780D | - | NHD-0220 | - |
NHD-0220FZ-FSW-GBW LCD Character Display Modules & Accessories STN- GRAY Transfl 65.0 x 20.0 Newhaven Display | 0 | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | RoHS Compliant | 5 V | Side LED White | 65 mm x 20 mm 8 mm | Bulk | Gray | Transflective | 20 x 2 | STN | - 20 C to + 70 C | - | - | - | - | - | - | - | - | - | - | - | - | Obsolete | - | - | - | - | |
NHD-0220FZ-SYG-GBW LCD Character Display Modules & Accessories 2 x 20 STN-GRAY 65.0 x 20.0 LCD MOD CHAR 2X20 Y/G TRANSFL Newhaven Display | 0 | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | RoHS Compliant | 5 V | LED Yellow/Green | 65 mm x 20 mm x 8.5 mm | Bulk | Gray | Transflective | 20 x 2 | STN | - 20 C to + 70 C | 50 | LED - Yellow/Green | Parallel | STN - Super-Twisted Nematic | Gray | 65.00mm x 20.00mm x 8.50mm | 0.33mm W x 0.36mm H | 46.00mm L x 10.80mm W | 3.23mm H x 1.85mm W | 20 x 2 | 5 x 8 Dots | 40 | Obsolete | - | 50 | - | - | |
NHD-0220FZ-FSW-GBW-P-33V3 LCD MOD CHAR 2X20 GRY TRANSF STN LCD Character Display Modules & Accessories STN- GRAY Transfl 65.0 x 20.0 Newhaven Display Intl | 489 | 1: ¥48.688 | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | RoHS Compliant | 3.3 V ~ 5.5 V | LED White | 65 mm x 20 mm x 8 mm | Bulk | White | Transflective | 20 x 2 | STN Positive | -20°C ~ 70°C | 100 | LED - White | Parallel | STN - Super-Twisted Nematic | Gray | 65.00mm x 20.00mm x 8.00mm | 0.33mm W x 0.36mm H | 48.00mm L x 10.00mm W | 3.23mm H x 1.85mm W | 20 x 2 | 5 x 8 Dots | 40 | - | Built-in controller ST7066U | 100 | - | NHD0220FZFSWGBWP33V3 |
| 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
