cigen-NHD-0224
NHD-0224 optoelectronic Series
Versatile LCD character display modules for various electronic applications
The NHD-0224 series from Newhaven Display International, Inc., comprises a range of LCD character display modules designed for various electronic projects and systems. These displays come in different configurations, typically offering a 2 lines by 20 characters layout with various backlight options, making them versatile for a wide array of applications.
If you're working on embedded systems, IoT devices, or any project that requires a user interface with text display capabilities, these modules are a solid choice. They are particularly handy for industrial control panels, home automation systems, or even robotics projects where clear, readable text is crucial. Engineers tend to reach for this when they need a simple, reliable way to communicate status or data to users without the complexity of full graphical interfaces.
One thing worth noting is their robustness. These displays are known for their durability and ability to operate in a variety of environmental conditions, which makes them suitable for outdoor or harsh industrial settings. Another practical aspect is their low power consumption, which is beneficial for battery-powered devices. Overall, the NHD-0224 series provides a balance of functionality, reliability, and ease of use, making them a go-to choice for many engineers.
Series Images (12)
Documents & Media
Frequently Asked Questions
NHD-0224 optoelectronic - Part List
7 parts in total| Mfr Part # | Quantity Available | Price | Category | Product | Product Category | Standard Package | RoHS | Backlight | Interface | Display Type | Voltage - Supply | LED Forward Current | Size | Packaging | Text Color | Background Color | Outline L x W x H | Dot Size | Display Mode | Viewing Area | Character Size | Display Format | Character Format | Digits or Characters | Number of Characters | Fluid Type | Operating Temperature | Other Names | Factory Pack Quantity | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

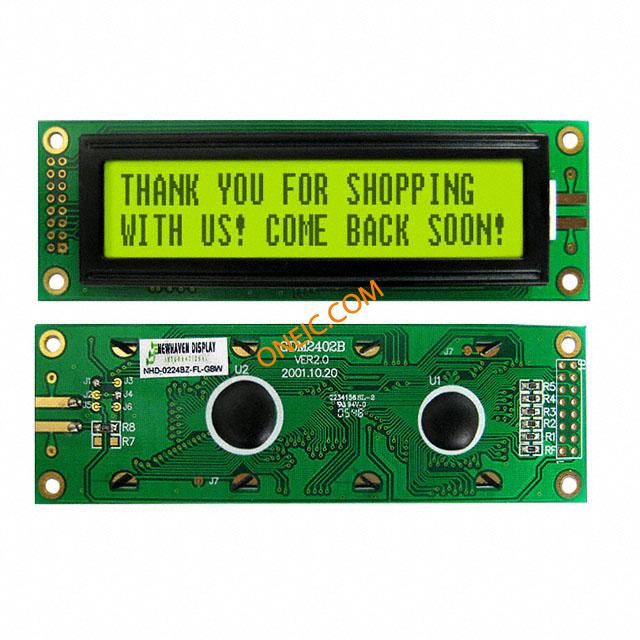

NHD-0224BZ-FL-GBW LCD Character Display Modules & Accessories STN- GRAY Transfl 116.0 x 37.0 LCD MOD CHAR 2X24 TRANSFL Newhaven Display | 10 | 1: ¥228.48 | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | 25 | RoHS Compliant | LED - Yellow/Green | Parallel | STN - Super-Twisted Nematic | 5 V | LED Yellow/Green | 116 mm x 37 mm x 13.5 mm | Bulk | Gray | Yellow/Green | 116.00mm x 37.00mm x 13.50mm | 0.50mm W x 0.65mm H | Transflective | 83 mm x 18.6 mm | 5.55mm H x 2.70mm W | 24 x 2 | 5 x 8 Dots | 24 x 2 | 48 | STN | - 20 C to + 70 C | NHD0224BZFLGBW | - | - |

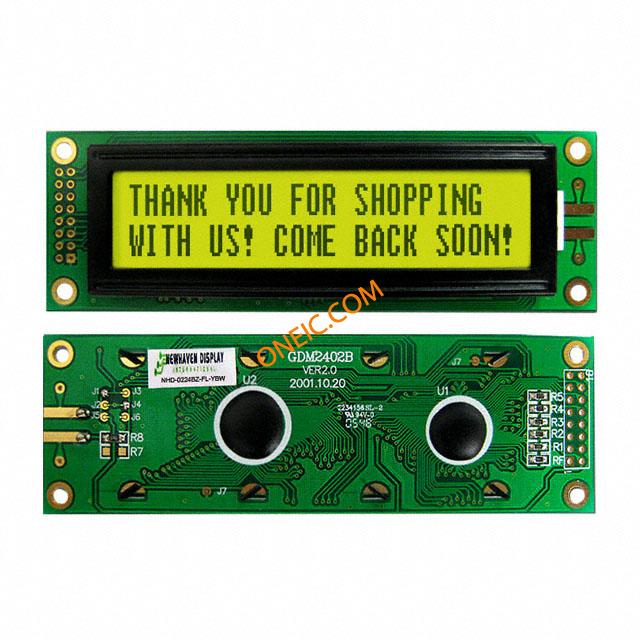

NHD-0224BZ-FL-YBW LCD Character Display Modules & Accessories STN- Y/G Transfl 116.0 x 37.0 LCD MOD CHAR 2X24 Y/G TRANSFL Newhaven Display | 71 | 1: ¥91.80 | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | 50 | RoHS Compliant | LED - Yellow/Green | Parallel | STN - Super-Twisted Nematic | 5 V | LED Yellow/Green | 116 mm x 37 mm x 13.5 mm | Bulk | Gray | Yellow/Green | 116.00mm x 37.00mm x 13.50mm | 0.50mm W x 0.65mm H | Transflective | 83 mm x 13.6 mm | 5.55mm H x 2.70mm W | 24 x 2 | 5 x 8 Dots | 24 x 2 | 48 | STN | - 20 C to + 70 C | - | 50 | - |

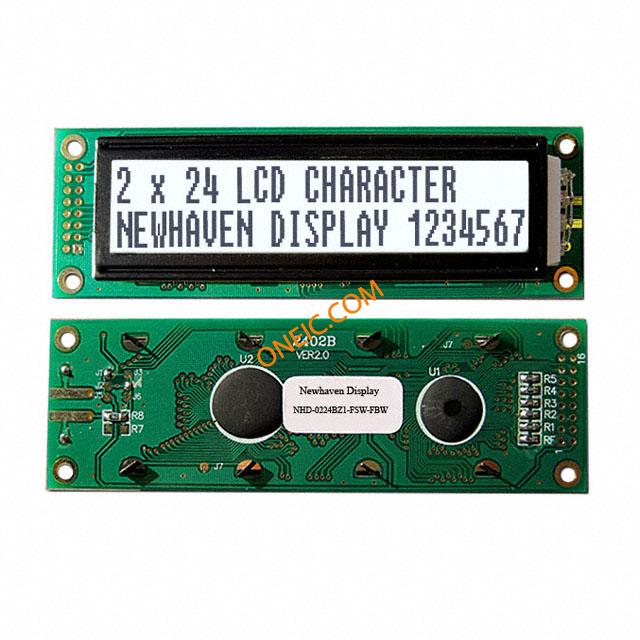

NHD-0224BZ1-FSW-FBW LCD Character Display Modules & Accessories FSTN (+) Transfl 116.0 x 37.0 LCD MOD CHAR 2X24 WH TRANSFL Newhaven Display | 32 | 1: ¥102.00 | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | 25 | RoHS Compliant | LED - White | Parallel | FSTN - Film Super-Twisted Nematic | 5 V | Side LED White | 116 mm x 37 mm x 13.5 mm | Bulk | Gray | White | 116.00mm x 37.00mm x 13.50mm | 0.50mm W x 0.65mm H | Transflective | 83 mm x 18.6 mm | 5.55mm H x 2.70mm W | 24 x 2 | 5 x 8 Dots | 24 x 2 | 48 | FSTN Positive | - 20 C to + 70 C | NHD0224BZ1FSWFBW | 50 | High Brightness Backlight |

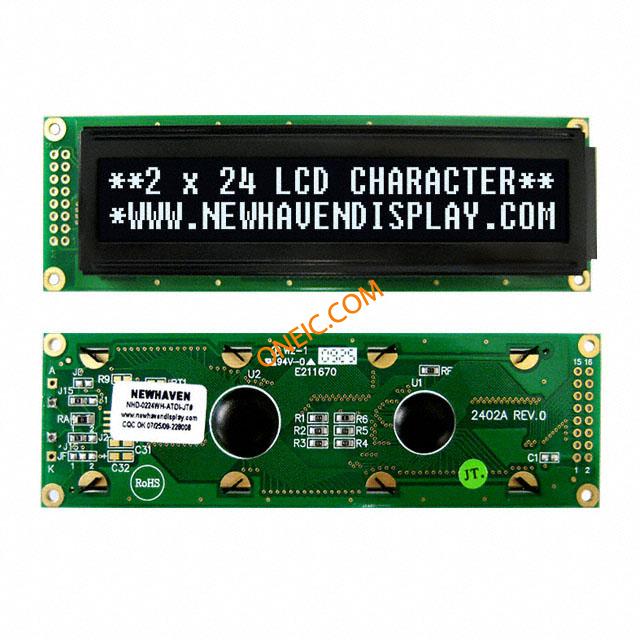

NHD-0224WH-ATDI-JT# LCD Character Display Modules & Accessories FSTN (-) Transm 118.0 x 36.0 LCD MOD CHAR 2X24 TRANSM Newhaven Display | 179 | 1: ¥105.40 | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | 25 | RoHS Compliant | LED - White | Parallel | FFSTN - Double Film Super-Twisted Nematic | 5 V | LED White | 118 mm x 36 mm x 13.6 mm | Bulk | White | Black | 118.00mm x 36.00mm x 13.60mm | 0.60mm W x 0.65mm H | Transmissive | 94.5 mm x 16 mm | 5.55mm H x 3.20mm W | 24 x 2 | 5 x 8 Dots | 24 x 2 | 48 | DFSTN Negative | - 20 C to + 70 C | NHD0224WHATDIJT | - | - |

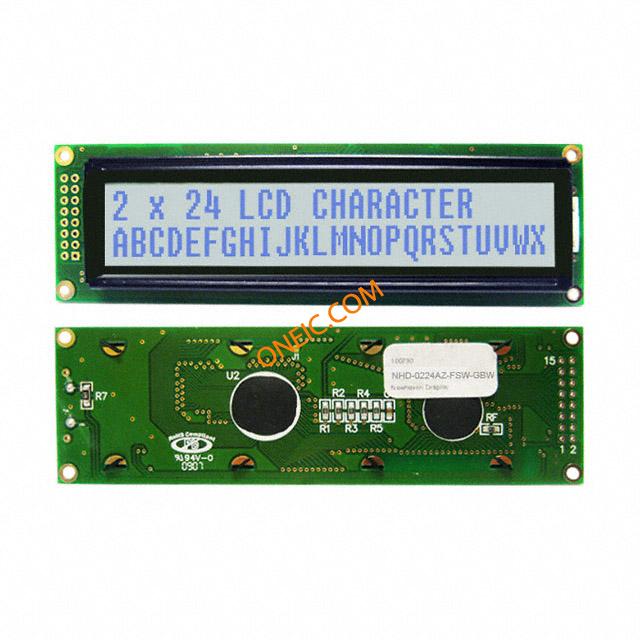

NHD-0224AZ-FSW-GBW LCD Character Display Modules & Accessories STN-GRAY Transfl 118.0 x 36.0 LCD MOD CHAR 2X24 TRANSFL Character Module STN Transflective 24Char x 2Line 16-Pin Newhaven Display | 30 | 1: ¥82.756 | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | 50 | RoHS Compliant | LED - White | Parallel | STN - Super-Twisted Nematic | 5 V | LED White | 118 mm x 36 mm x 12.5 mm | Bulk | Gray | White | 118.00mm x 36.00mm x 12.50mm | 0.60mm W x 0.65mm H | Transflective | 94.5 mm x 18 mm | 5.55mm H x 3.20mm W | 24 x 2 | 5 x 8 Dots | 24 x 2 | 48 | STN | - 20 C to + 70 C | NHD0224AZFSWGBW | - | - |

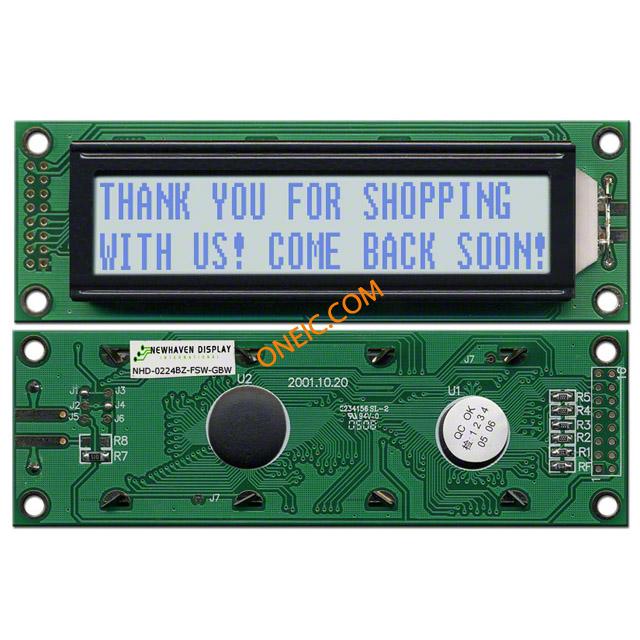

NHD-0224BZ-FSW-GBW LCD Character Display Modules & Accessories STN-Gray Transf 116.0 x 37.0 LCD MOD CHAR 2X24 TRANSFL Newhaven Display | 10 | 58: ¥87.652 | - | LCD Character Display Modules | LCD Character Display Modules & Accessories | 100 | RoHS Compliant | LED - White | Parallel | STN - Super-Twisted Nematic | 5 V | LED White | 116 mm x 37 mm x 13.5 mm | Bulk | Gray | White | 116.00mm x 37.00mm x 13.50mm | 0.50mm W x 0.65mm H | Transflective | 76.3 mm x 11.6 mm | 5.55mm H x 2.70mm W | 24 x 2 | 5 x 8 Dots | 24 x 2 | 48 | STN | - 20 C to + 70 C | - | - | Built-in controller ST7066U |
| 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
