NHD-0420DZ optoelectronic Series

The NHD-0420DZ series from Newhaven Display International, Inc., offers a range of 4x20 character LCD and OLED displays in different color options and types. These displays are commonly used in projects requiring clear, readable text output, such as industrial control panels, medical devices, and home automation systems. If you're working on any application that needs a simple yet effective way to display text-based information, these displays are a go-to choice. One thing worth noting is their wide range of color options; this flexibility allows for better visibility and customization based on the specific requirements of your project. Engineers tend to reach for this series when they need a reliable, low-maintenance display solution that can handle a variety of environments, from bright sunlight to dimly lit rooms. Another practical observation is their ease of integration—these displays come with standard interfaces like I2C and parallel, making them straightforward to connect to microcontrollers and other embedded systems.

Mfr Part #	Quantity Available	Price	Category	Standard Package	Backlight	Display Type	Voltage - Supply	Outline L x W x H	Dot Size	Display Mode	Viewing Area	Character Size	Display Format	Character Format	Number of Characters	Operating Temperature	Product	RoHS	Interface	Text Color	Background Color	Product Category	LED Forward Current	Size	Packaging	Digits or Characters	Fluid Type	Factory Pack Quantity	Other Names	Viewing Angle	Current - Average Rectified (Io)	Illumination Color	Features	Mechanical Life	Series

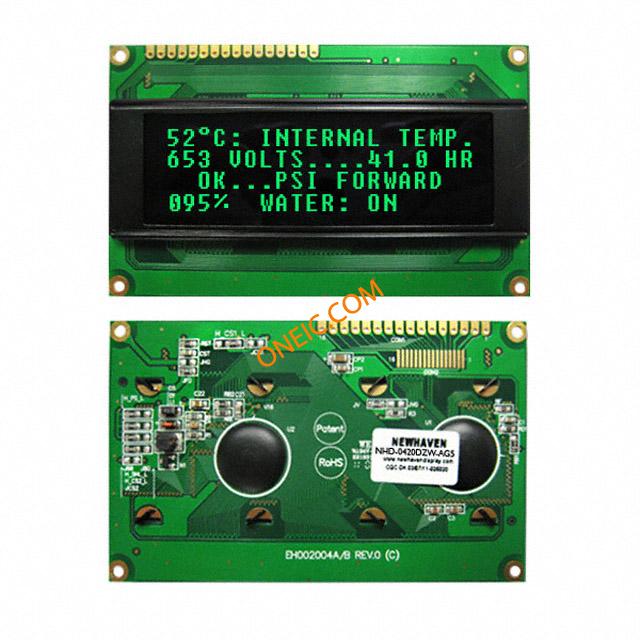

2 NHD-0420DZW-AG5 OLED Displays & Accessories OLED 4x20 Green 98.0 x 60.0 x 10.0 DISPLAY OLED CHAR 4X20 GRN Newhaven Display	339	2: ¥349.2147	-	100	LED - Green	OLED	3 V/5 V	98.00mm x 60.00mm x 10.00mm	0.54mm W x 0.55mm H	Passive	77 mm x 25.2 mm	4.75mm H x 2.90mm W	20 x 4	5 x 8 Dots	80	+ 80 C	OLED Display Modules	RoHS Compliant	Parallel/Serial	Green	Black	OLED Displays & Accessories	-	-	-	-	-	-	NHD0420DZWAG5	80 deg	43 mA	Green	-	-	-

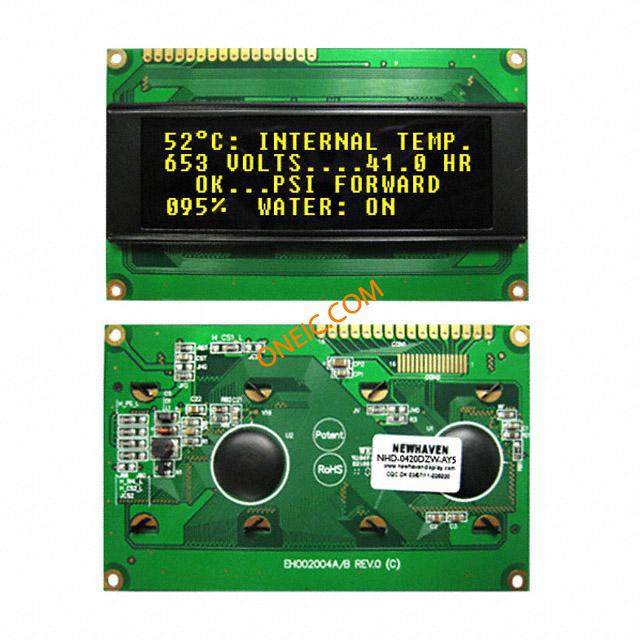

2 NHD-0420DZW-AY5 OLED Displays & Accessories OLED 4x20 Yellow 116.0 x 37.0 DISPLAY OLED CHAR 4X20 YLW Newhaven Display	918	2: ¥367.3877	-	100	LED - Yellow	OLED	3 V/5 V	98.00mm x 60.00mm x 10.00mm	0.54mm W x 0.55mm H	Passive	77 mm x 25.2 mm	4.75mm H x 2.90mm W	20 x 4	5 x 8 Dots	80	+ 80 C	OLED Display Modules	RoHS Compliant	Parallel/Serial	Yellow	Black	OLED Displays & Accessories	-	-	-	-	-	-	NHD0420DZWAY5	80 deg	43 mA	Yellow	-	-	-

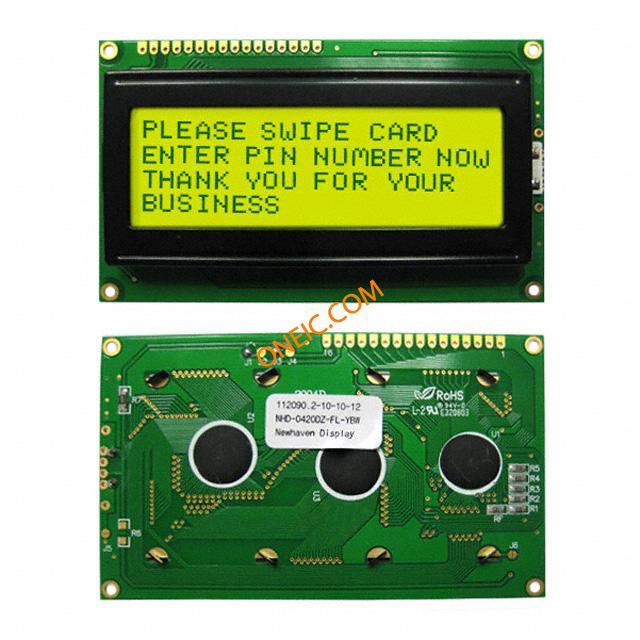

2 NHD-0420DZ-FL-YBW LCD Character Display Modules & Accessories STN- Y/G Transfl 98.0 x 60.0 LCD MOD CHAR 4X20 Y/G TRANSFL Character Module STN Transflective 20Char x 4Line 16-Pin Newhaven Display	1874	1: ¥104.924	-	50	LED - Yellow/Green	STN - Super-Twisted Nematic	5 V	98.00mm x 60.00mm x 13.60mm	0.55mm W x 0.55mm H	Transflective	77.00mm L x 25.20mm W	4.75mm H x 2.95mm W	20 x 4	5 x 8 Dots	80	- 20 C to + 70 C	LCD Character Display Modules	RoHS Compliant	Parallel	Gray	Yellow/Green	LCD Character Display Modules & Accessories	LED Yellow/Green	98 mm x 60 mm x 14 mm	Bulk	20 x 4	STN	50	NHD0420DZFLYBW	-	-	-	-	-	-

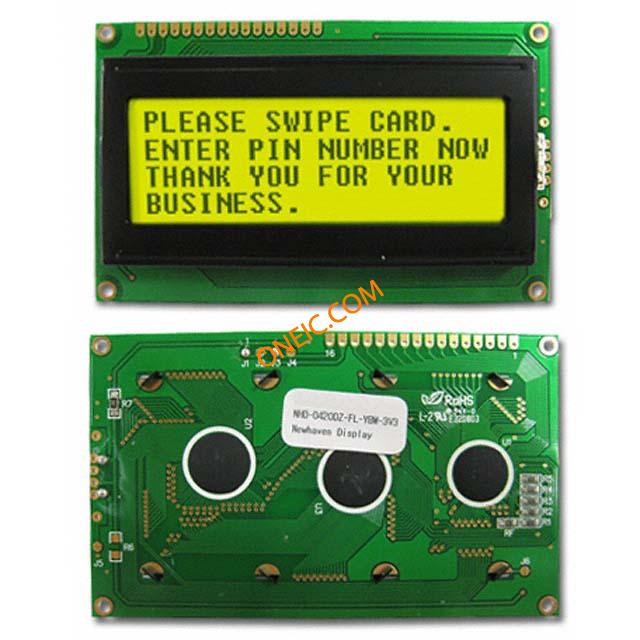

2 NHD-0420DZ-FL-YBW-3V3 LCD Character Display Modules & Accessories STN-Y/G Transfl 98.0 x 60.0 LCD MOD CHAR 4X20 Y/G TRANSFL Newhaven Display	0		-	50	LED - Yellow/Green	STN - Super-Twisted Nematic	3.3 V	98.00mm x 60.00mm x 14.00mm	0.55mm W x 0.55mm H	Transflective	76 mm x 25.2 mm	4.75mm H x 2.95mm W	20 x 4	5 x 8 Dots	80	- 20 C to + 70 C	LCD Character Display Modules	RoHS Compliant	Parallel	Gray	Yellow/Green	LCD Character Display Modules & Accessories	LED Yellow/Green	98 mm x 60 mm 14 mm	Bulk	20 x 4	STN	-	-	-	-	-	-	Obsolete	-

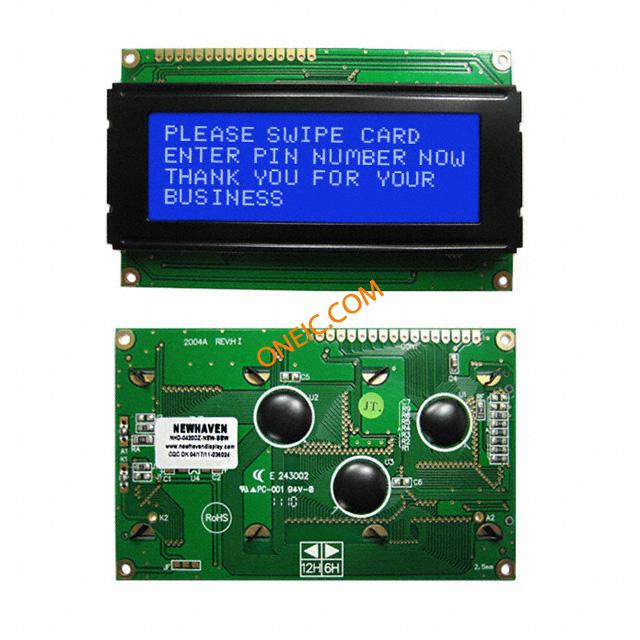

2 NHD-0420DZ-NSW-BBW LCD Character Display Modules & Accessories STN- BLUE Transm 98.0 x 60.0 LCD MOD CHAR 4X20 WH TRANSM Character Module STN Transmissive 20Char x 4Line 16-Pin Newhaven Display	380	5: ¥172.7615	-	50	LED - White	STN - Super-Twisted Nematic	5 V	98.00mm x 60.00mm x 13.60mm	0.55mm W x 0.55mm H	Transmissive	77.00mm L x 25.20mm W	4.75mm H x 2.95mm W	20 x 4	5 x 8 Dots	80	- 20 C to + 70 C	LCD Character Display Modules	RoHS Compliant	Parallel	Gray	White	LCD Character Display Modules & Accessories	LED White	98 mm x 60 mm x 14 mm	Bulk	20 x 4	STN Negative	50	-	-	-	-	-	-	-

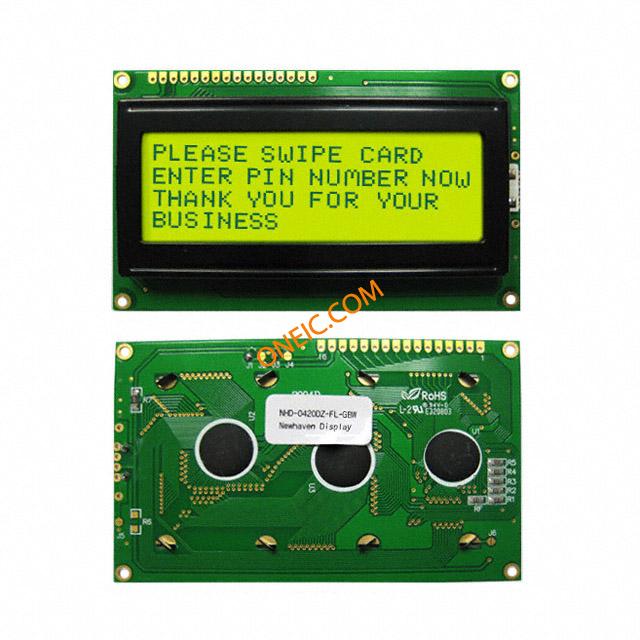

2 NHD-0420DZ-FL-GBW LCD Character Display Modules & Accessories STN- GRAY Transfl 98.0 x 60.0 LCD MOD CHAR 4X20 Y/G TRANSFL Newhaven Display	130	5: ¥129.2415	-	50	LED - Yellow/Green	STN - Super-Twisted Nematic	5 V	98.00mm x 60.00mm x 14.00mm	0.55mm W x 0.55mm H	Transflective	76 mm x 25.2 mm	4.75mm H x 2.95mm W	20 x 4	5 x 8 Dots	80	- 20 C to + 70 C	LCD Character Display Modules	RoHS Compliant	Parallel	Gray	Gray	LCD Character Display Modules & Accessories	LED Yellow/Green	98 mm x 60 mm x 14 mm	Bulk	20 x 4	STN	50	-	-	-	-	-	-	-

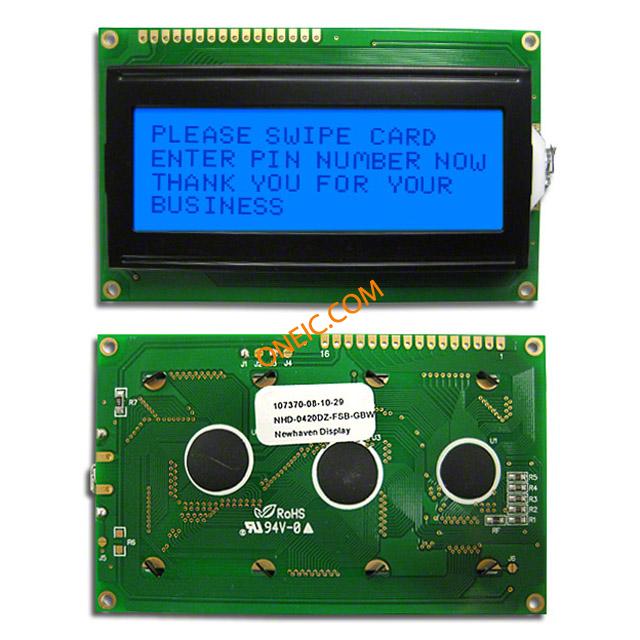

2 NHD-0420DZ-FSB-GBW LCD Character Display Modules & Accessories STN-Gray Transf 98.0 x 60.0 LCD MOD CHAR 4X20 TRANSFL Newhaven Display	32	1: ¥159.80	-	100	LED - Blue	STN - Super-Twisted Nematic	5 V	98.00mm x 60.00mm x 14.00mm	0.55mm W x 0.55mm H	Transflective	77 mm x 25.2 mm	4.75mm H x 2.95mm W	20 x 4	5 x 8 Dots	80	- 20 C to + 70 C	LCD Character Display Modules	RoHS Compliant	Parallel	Gray	Blue	LCD Character Display Modules & Accessories	Side LED Blue	98 mm x 60 mm x 13.6 mm	Bulk	20 x 4	STN	-	-	-	-	-	Built-in controller ST7066U/SPLC780D	-	NHD-0420

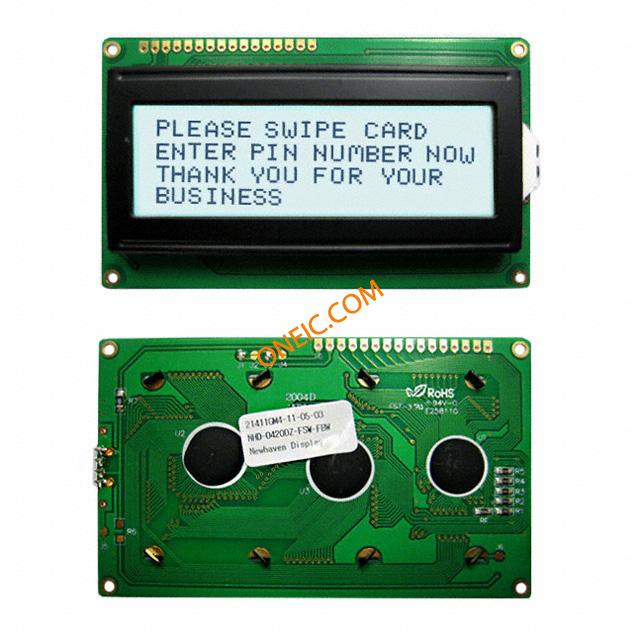

2 NHD-0420DZ-FSW-FBW LCD Character Display Modules & Accessories FSTN (+) Transf 98.0 x 60.0 LCD MOD CHAR 4X20 WH TRANSFL Newhaven Display	3445	3: ¥167.1909	-	100	LED - White	FSTN - Film Super-Twisted Nematic	5 V	98.00mm x 60.00mm x 14.00mm	0.55mm W x 0.55mm H	Transflective	77 mm x 25.2 mm	4.75mm H x 2.95mm W	20 x 4	5 x 8 Dots	80	- 20 C to + 70 C	LCD Character Display Modules	RoHS Compliant	Parallel	Gray	White	LCD Character Display Modules & Accessories	Side LED White	98 mm x 60 mm x 13.6 mm	Bulk	20 x 4	FSTN Positive	-	-	-	-	-	Built-in controller ST7066U	-	-
2 NHD-0420DZ-FL-YBW-3V LCD Character Display Modules & Accessories 4 x 20 STN-Y/G 98.0 x 60.0 LCD MOD CHAR 4X20 Y/G TRANSFL Newhaven Display	0		-	50	LED - Yellow/Green	STN - Super-Twisted Nematic	3 V	98.00mm x 60.00mm x 14.00mm	0.55mm W x 0.55mm H	Transflective	76.00mm L x 25.20mm W	4.75mm H x 2.95mm W	20 x 4	5 x 8 Dots	80	- 20 C to + 70 C	LCD Character Display Modules	RoHS Compliant	Parallel	Gray	Yellow/Green	LCD Character Display Modules & Accessories	LED Yellow/Green	98 mm x 60 mm x 13.5 mm	Bulk	20 x 4	STN	50	-	-	-	-	-	Obsolete	-

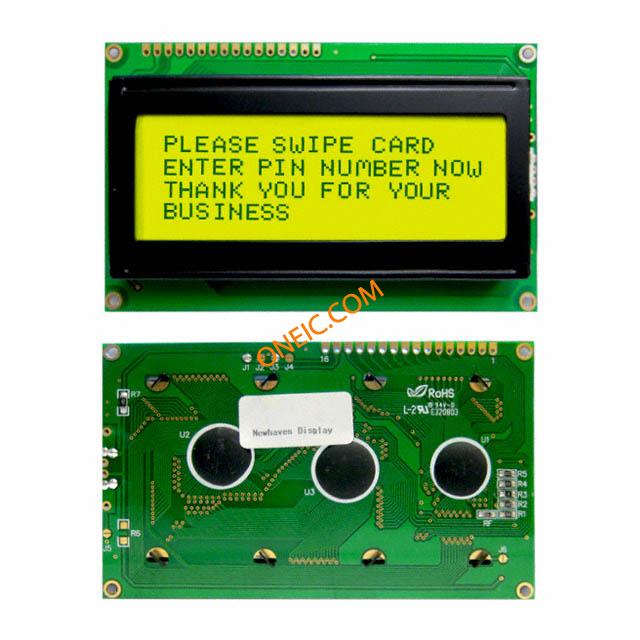

NHD-0420DZ-FL-YBW-33V3 LCD Character Display Modules & Accessories STN-Y/G Transfl 98.0 x 60.0 LCD MOD CHAR 4X20 Y/G TRANSF STN Newhaven Display	97	3: ¥155.9553	-	100	LED - Yellow/Green	STN - Super-Twisted Nematic	3.3 V ~ 5.5 V	98.00mm x 60.00mm x 14.00mm	0.55mm W x 0.55mm H	Transflective	76.00mm L x 25.20mm W	4.75mm H x 2.95mm W	20 x 4	5 x 8 Dots	80	-20°C ~ 70°C	LCD Character Display Modules	RoHS Compliant	Parallel	Gray	Green	LCD Character Display Modules & Accessories	Side LED Yellow/Green	98 mm x 60 mm x 14 mm	Bulk	20 x 4	STN Positive	100	NHD0420DZFLYBW33V3	-	-	-	Built-in controller ST7066U	-	NHD-0420
NHD-0420DZ-FSW-GBW LCD MOD CHAR 4X20 WH TRANSFL Newhaven Display Intl	0		-	50	LED - White	STN - Super-Twisted Nematic	5V	98.00mm x 60.00mm x 14.00mm	0.55mm W x 0.55mm H	Transflective	76.00mm L x 25.20mm W	4.75mm H x 2.95mm W	20 x 4	5 x 8 Dots	80	-20°C ~ 70°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

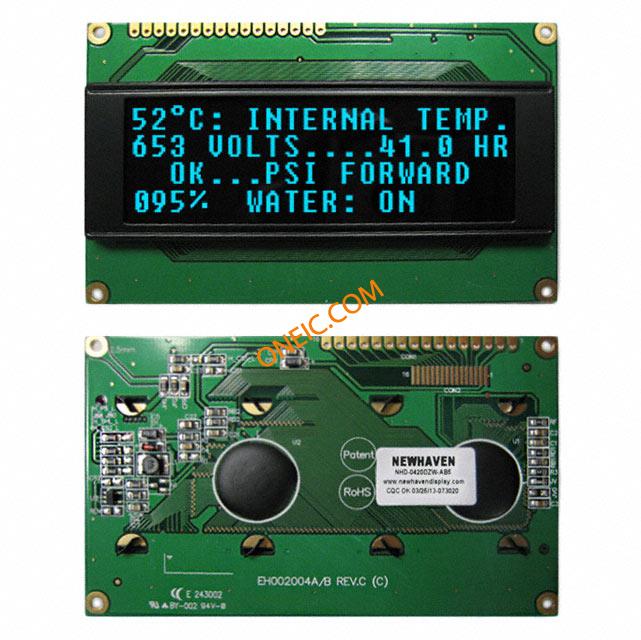

NHD-0420DZW-AB5 DISPLAY OLED CHAR 4X20 BLU OLED Displays & Accessories OLED 4X20 Blue Newhaven Display Intl	137	1: ¥432.5725	-	1	LED - Blue	OLED	3 V ~ 5.3 V	98.00mm x 60.00mm x 10.00mm	0.54mm W x 0.55mm H	Passive	77.00mm L x 25.20mm W	4.75mm H x 2.90mm W	20 x 4	5 x 8 Dots	80	-40°C ~ 80°C	OLED Displays	RoHS Compliant	Parallel/Serial	Blue	Black	-	-	-	-	-	-	-	-	80 deg	60 mA	Blue	-	-	-
NHD-0420DZ-NSB-GBW LCD Character Displays STN-Gray Transm 98.0 x 60.0 Newhaven Display	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
