cigen-NHD-2.4-240320SF-CTX
NHD-2.4-240320SF-CTX tft displays & accessorie Series
newhaven-display2.4-inch TFT LCD displays with touch and LED backlight
The NHD-2.4-240320SF-CTX series from Newhaven Display International, Inc., consists of 2.4-inch TFT LCD displays equipped with resistive touch and LED backlighting. These displays are commonly found in a variety of embedded systems, industrial control panels, and portable devices that require a compact yet functional display solution. If you're working on a project that needs a clear, readable display in a small form factor, these TFT LCDs with touch capabilities are a great fit.
One thing worth noting is their versatility; they can be used in both indoor and outdoor applications due to their LED backlighting, which ensures visibility under different lighting conditions. Engineers tend to reach for this series when they need a reliable, cost-effective display that supports basic touch functionality without the need for more complex multi-touch features. Another practical benefit is their low power consumption, making them suitable for battery-powered devices. Overall, the NHD-2.4-240320SF-CTX series offers a solid balance between performance and cost, making them a popular choice in a wide range of applications.
Series Images (21)
Documents & Media
Frequently Asked Questions
NHD-2.4-240320SF-CTX tft displays & accessorie - Part List
8 parts in total| Mfr Part # | Quantity Available | Price | Category | Product | Standard Package | RoHS | Backlight | Interface | Resolution | Display Type | Voltage - Supply | Current - Average Rectified (Io) | Dot Size | Dot Pixels | Touchscreen | Display Mode | Viewing Area | Diagonal Screen Size | Other Specifications | Operating Temperature | Product Category | Size | Background Color | Other Names | Packaging | Dot Pitch | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

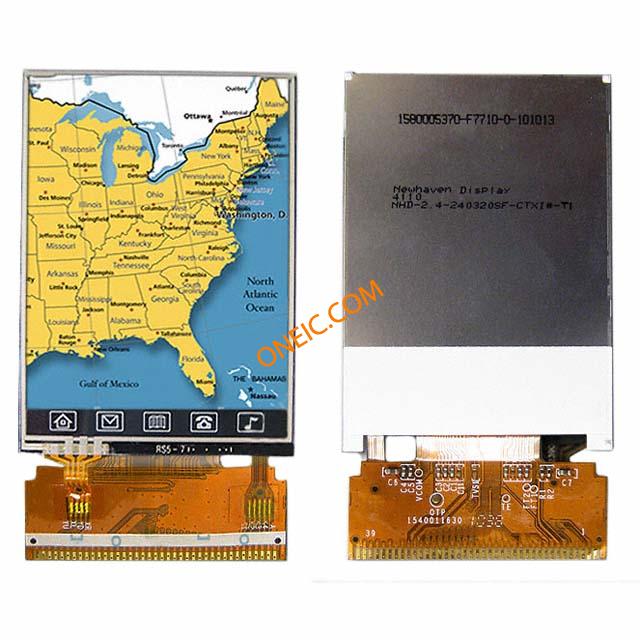

 NHD-2.4-240320SF-CTXI#-T1 TFT Displays & Accessories 2.4 240 x 320 DPI w/ Touch Panel LCD DISP TFT 2.4" 240X320 B/L Newhaven Display | 119 | 1: ¥106.08 | - | Displays | 100 | RoHS Compliant | White LED | Parallel | 240 x 320 | TFT | 2.8 v | 7 mA | 0.15mm x 0.15mm | 320 x 240 (QVGA) | Yes | Transmissive | 36.72 mm x 48.96 mm | 2.4 in | Touch Panel | - 10 C to + 60 C | TFT Displays & Accessories | 42.72 mm x 60.26 mm x 3.6 mm | Black | NHD24240320SFCTXIT1 | Bulk | - | - |

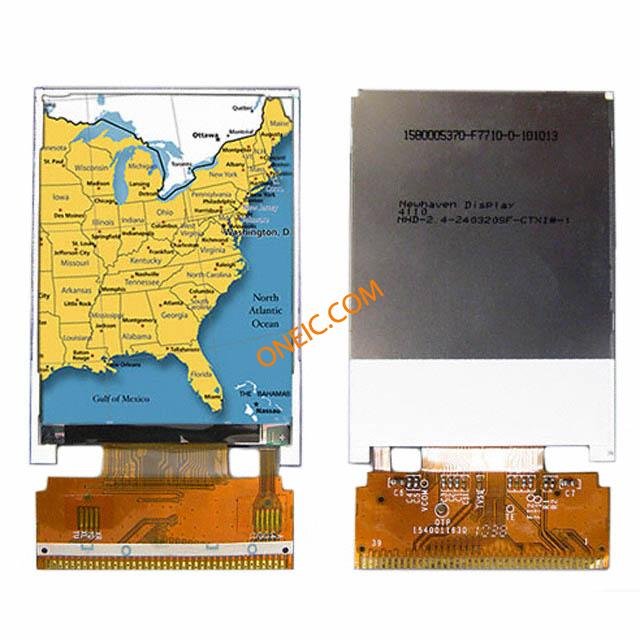

 NHD-2.4-240320SF-CTXI#-1 TFT Displays & Accessories 2.4 240 x 320 DPI 60.26 x 42.72 x 3.9 LCD DISP TFT 2.4" 240X320 B/L 2.4in Diagonal 320x240Pixels 16 Bit Digital LED Backlight Normally Black 2.8V Power Supply 39-Pin Newhaven Display | 299 | 1: ¥100.98 | - | Displays | 100 | RoHS Compliant | White LED | Parallel | 240 x 320 | TFT | 2.8 V | 7 mA | 0.15mm x 0.15mm | 320 x 240 (QVGA) | No | Transmissive | 36.72 mm x 48.96 mm | 2.4 in | No Touch Panel | - 10 C to + 60 C | TFT Displays & Accessories | 42.72 mm x 60.26 mm x 2.35 mm | Black | NHD24240320SFCTXI1 | Bulk | - | - |

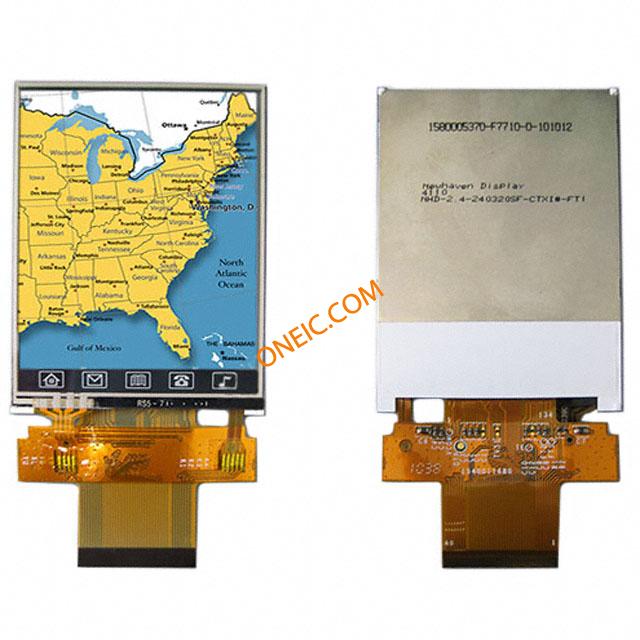

 NHD-2.4-240320SF-CTXI#-FT1 TFT Displays & Accessories 2.4 TFT 240x320 w/Touch White LED LCD TFT 2.4" 240X320 40P TCHPNL 2.4in Diagonal 320x240Pixels Resistive Parallel LED Backlight Normally Black 2.8V Power Supply 40-Pin Newhaven Display | 115 | 1: ¥107.78 | - | Displays | 100 | RoHS Compliant | White LED | Parallel | 240 x 320 | TFT | 2.8 V | 7 mA | 0.15mm x 0.15mm | 320 x 240 (QVGA) | Yes | Transmissive | 36.72 mm x 48.96 mm | 2.4 in | Touch Panel | - 20 C to + 70 C | TFT Displays & Accessories | 42.72 mm x 60.26 mm x 3.6 mm | Normally Black | NHD24240320SFCTXIFT1 | - | - | - |

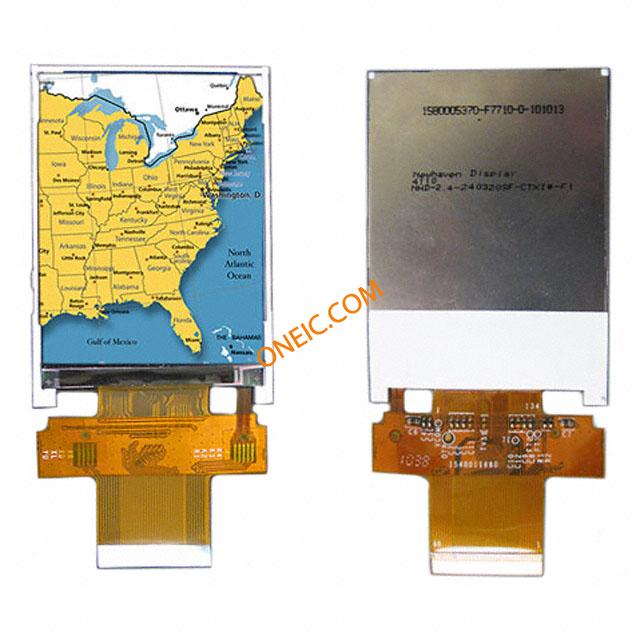

 NHD-2.4-240320SF-CTXI#-F1 TFT Displays & Accessories 2.4 TFT 240x320 60.26 x 42.72 x 3.9 LCD TFT 2.4" 240X320 40PIN ZIF 2.4in Diagonal 320x240Pixels Parallel LED Backlight Normally Black 2.8V Power Supply 40-Pin Newhaven Display | 2165 | 1: ¥102.68 | - | Displays | 100 | RoHS Compliant | White LED | Parallel | 240 x 320 | TFT | 2.8 V | 7 mA | 0.15mm x 0.15mm | 320 x 240 (QVGA) | No | Transmissive | 37.72mm L x 49.96mm W | 2.4 in | No Touch Panel | - 20 C to + 70 C | TFT Displays & Accessories | - | Normally Black | NHD24240320SFCTXIF1 | - | - | - |

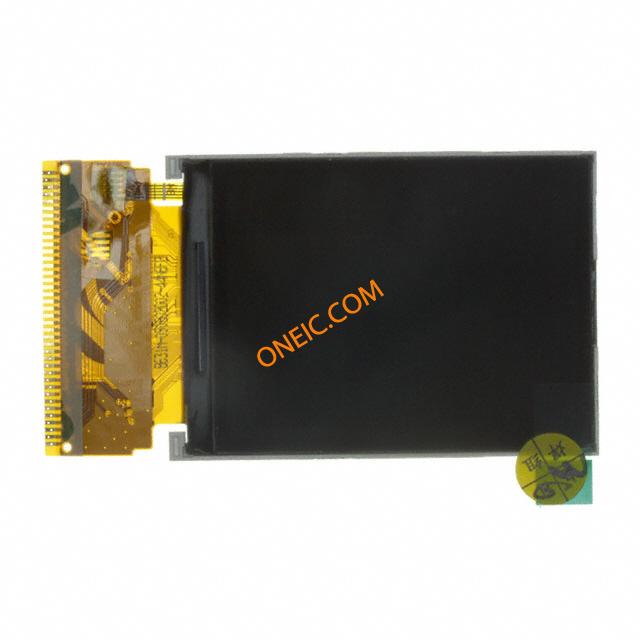

 NHD-2.4-240320SF-CTXI# TFT Displays & Accessories 2.4 240 x 320 DPI 60.26 x 42.72 x 3.9 LCD DISP TFT 2.4" 240X320 B/L 2.4in Diagonal 320x240Pixels Parallel LED Backlight Normally Black 2.8V Power Supply 39-Pin Newhaven Display | 11 | 1: ¥135.048 | - | Displays | 100 | RoHS Compliant | White LED | Parallel | 240 x 320 | TFT | 2.8 V | 7 mA | 0.15mm x 0.15mm | 320 x 240 (QVGA) | No | Transmissive | 36.72 mm x 48.96 mm | 2.4 in | No Touch Panel | - 10 C to + 60 C | TFT Displays & Accessories | 42.72 mm x 60.26 mm x 2.45 mm | Black | - | Bulk | 0.05mm x 0.05mm | Obsolete |

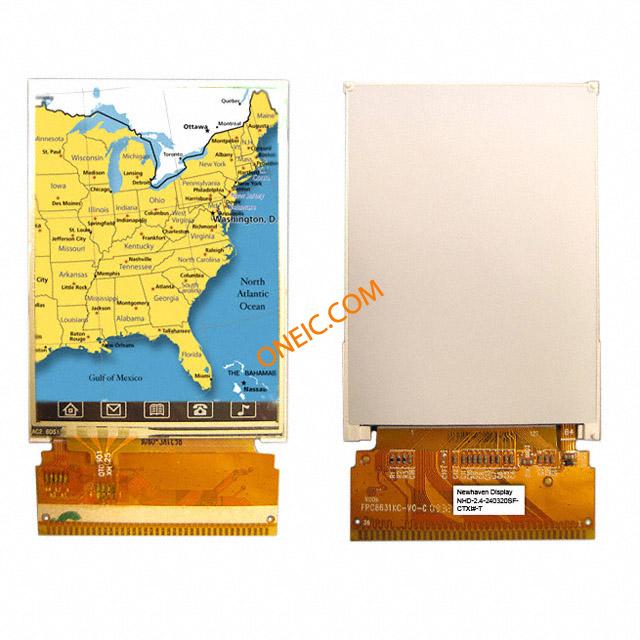

 NHD-2.4-240320SF-CTXI#-T TFT Displays & Accessories 2.4 240 x 320 DPI w/ Touch Panel LCD DISP TFT 2.4" 240X320 B/L Newhaven Display | 0 | - | Displays | 100 | RoHS Compliant | White LED | Parallel | 240 x 320 | TFT | 2.5 V to 3.3 V | 7 mA to 9 mA | 0.15mm x 0.15mm | 320 x 240 (QVGA) | Yes | Transmissive | 36.72 mm x 48.96 mm | 2.4 in | Touch Panel | - 10 C to + 60 C | TFT Displays & Accessories | 42.72 mm x 60.26 mm x 3.6 mm | Normally Black | - | Bulk | 0.05mm x 0.05mm | Obsolete | |

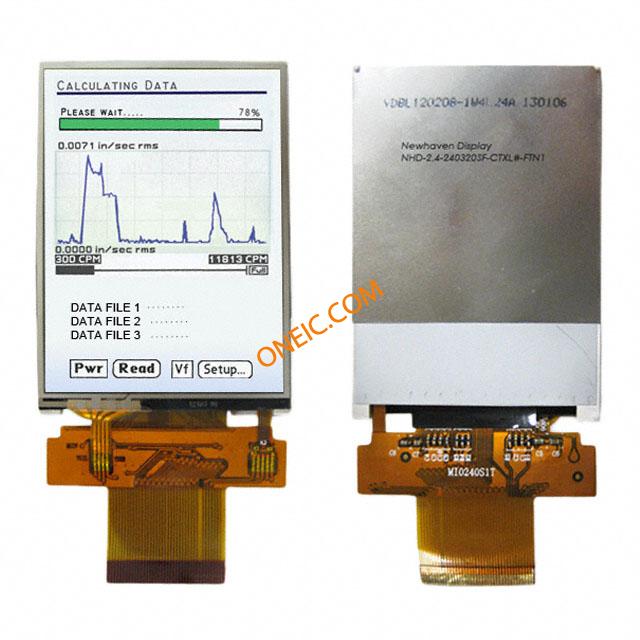

 NHD-2.4-240320SF-CTXL#-FTN1 DISPLAY LCD TFT TOUCH 24ZIF TFT Displays & Accessories 2.4 LCD TFT w/40-ZIF resistive touch DISPLAY LCD TFT TOUCH 40ZIF Newhaven Display Intl | 122 | 1: ¥107.78 | - | Displays | 1 | RoHS Compliant | LED - White | Parallel, 16-Bit (RGB) | 240 x 320 | TFT | 2.8 V | 7 mA | 0.15mm x 0.15mm | 320 x 240 (QVGA) | No | Transmissive | 38.72mm L x 54.36mm W | 2.4" (60.96mm) | Touch Panel | - 20 C to + 70 C | - | 42.72 mm x 60.26 mm x 3.6 mm | - | - | - | 0.51mm x 0.51mm | - |
 NHD-2.4-240320SF-CTXI#-FT 2.4in TFT QVGA 320x240Pixels Parallel 350cd/m2 LED Backlight -20°C to 70°C 40-Pin Newhaven Display | 29 | 1: ¥285.192 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
