cigen-NHD-24064
NHD-24064 optoelectronic Series
newhaven-display240x64 pixel graphic LCD modules in various transmissive and transflective types
The NHD-24064 series from Newhaven Display International, Inc., consists of 240x64 pixel graphic LCD modules available in both transmissive and transflective variants. These modules are widely used in a variety of embedded systems and consumer electronics where a graphical display is needed but space is limited. If you're working on a project that requires a compact, high-resolution display with good visibility in different lighting conditions, these modules could be a great fit.
One thing worth noting is their versatility—transflective models offer better visibility outdoors compared to purely transmissive ones, which are ideal for indoor use. This makes them particularly useful in applications where the device might be exposed to varying light conditions, such as in outdoor kiosks or portable devices used in sunlight. Engineers tend to reach for this when they need a display that can function effectively under both indoor and outdoor lighting without the need for additional backlighting.
Another practical observation is that these modules come in various types, including those with different interface options like SPI, I2C, and parallel, making them highly adaptable to different system architectures. They also often include integrated drivers, reducing the overall component count in your design. This makes them a popular choice for projects where minimizing board space and cost is crucial.
Series Images (23)
Documents & Media
Frequently Asked Questions
NHD-24064 optoelectronic - Part List
15 parts in total| Mfr Part # | Quantity Available | Price | Category | Backlight | Display Mode | RoHS | Background Color | Viewing Area | Product Category | Standard Package | Interface | Resolution | Display Type | Size | Packaging | Text Color | Dot Size | Dot Pixels | Fluid Type | Operating Temperature | Factory Pack Quantity | Style | Other Names | Product | Features | Mechanical Life | Touchscreen | Dot Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

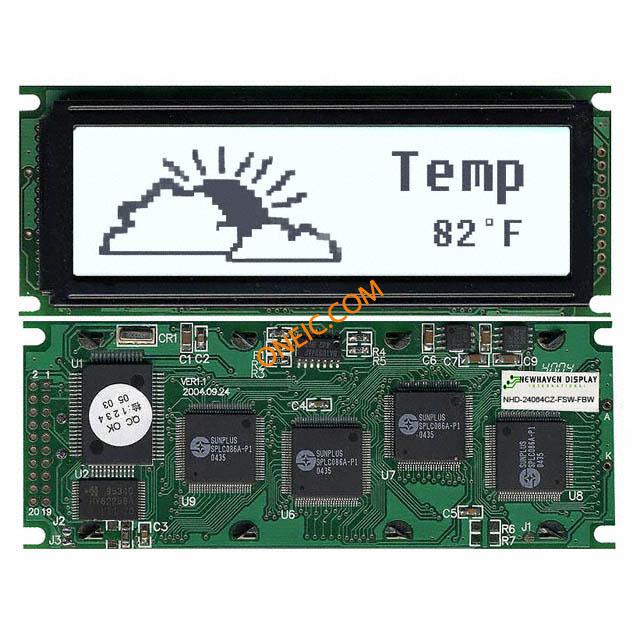

 NHD-24064CZ-FSW-FBW LCD Graphic Display Modules & Accessories FSTN (+) Transfl 118.0 x 45.0 LCD MOD GRAPH 240X64 WH TRANSFL Graphic Module FSTN Transflective 240x64Pixels 20-Pin Newhaven Display | 86 | 1: ¥343.06 | - | LED White | Transflective | RoHS Compliant | White | 96.00mm L x 30.00mm W | LCD Graphic Display Modules & Accessories | 50 | Parallel | 240 x 64 | FSTN - Film Super-Twisted Nematic | 118 mm x 45 mm x 12.5 mm | Bulk | Gray | 0.34mm x 0.34mm | 240 x 64 | FSTN Positive | - 20 C to + 70 C | 50 | LCD Graphic Display | NHD-24064CZ-FSW-FBW -ND | - | Easy interface with 8-bit MPU, low power consumption | - | - | - |

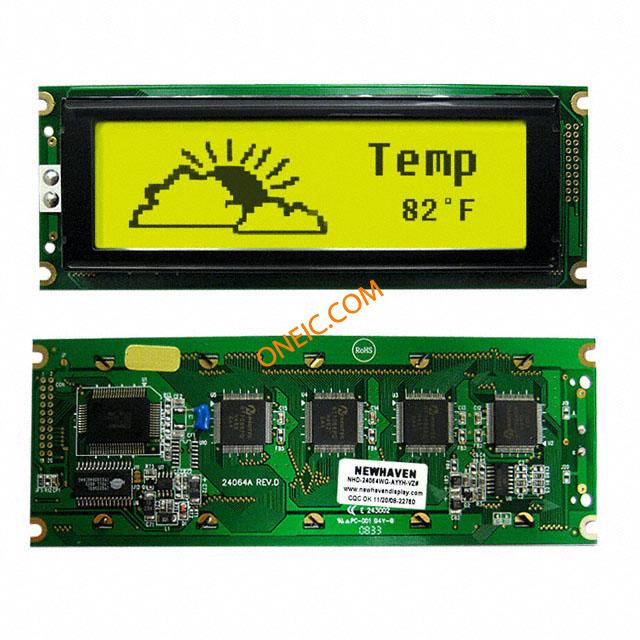

 NHD-24064WG-AYYH-VZ# LCD Graphic Display Modules & Accessories STN-Y/G Transfl 180.0 x 65.0 LCD MOD GRAPH 240X64 Y/G TRANSFL Newhaven Display | 86 | 1: ¥360.06 | - | LED Yellow / Green | Transflective | RoHS Compliant | Yellow / Green | 133 mm x 39 mm | LCD Graphic Display Modules & Accessories | 50 | Parallel | 240 x 64 | STN - Super-Twisted Nematic | 180 mm x 65 mm x 16 mm | Bulk | Gray | 0.49mm x 0.49mm | 240 x 64 | STN Positive | - 20 C to + 70 C | 50 | LCD Graphic Display | NHD-24064WG-AYYH-VZ# -ND | Graphic LCD Modules | Built-in Controller RA6963 | - | No | - |

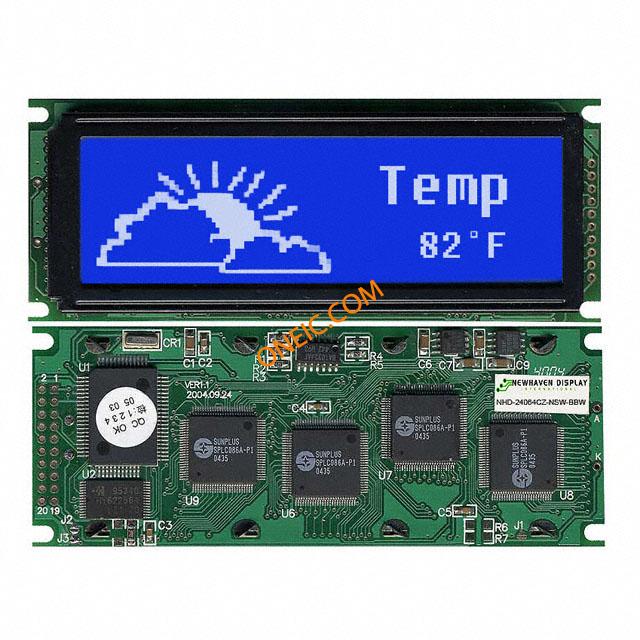

 NHD-24064CZ-NSW-BBW LCD Graphic Display Modules & Accessories STN-Blue (-) Transm 118.0 x 45.0 LCD MOD GRAPH 240X64 WH TRANSM Newhaven Display | 10 | 68: ¥274.924 | - | LED White | Transmissive | RoHS Compliant | White | 96.00mm L x 30.00mm W | LCD Graphic Display Modules & Accessories | 50 | Parallel | 240 x 64 | STN - Super-Twisted Nematic | 118 mm x 45 mm x 12.5 mm | Bulk | White | 0.34mm x 0.34mm | 240 x 64 | STN Negative | - 20 C to + 70 C | 50 | LCD Graphic Display | NHD-24064CZ-NSW-BBW -ND | - | Easy interface with 8-bit MPU, low power consumption | - | - | - |

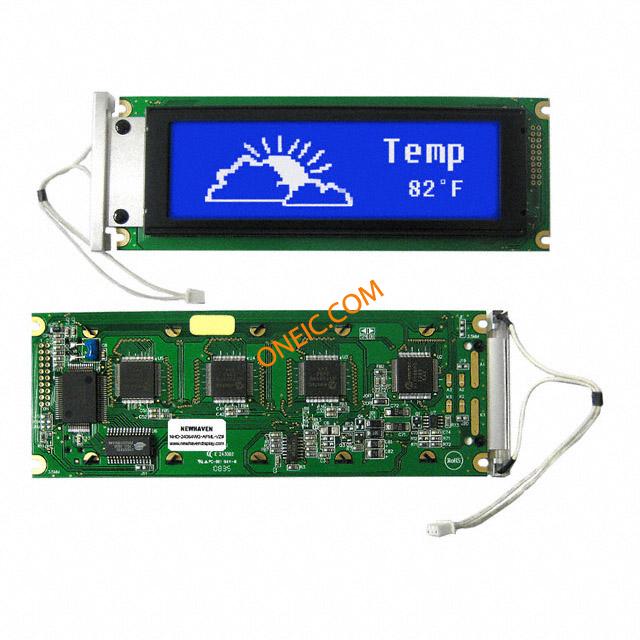

 NHD-24064WG-AFML-VZ# LCD Graphic Display Modules & Accessories STN-Blue (-) Transm 180.0 x 65.0 LCD MOD GRAPH 240X64 WH TRANSM Newhaven Display | 0 | - | CCFL White | Transmissive | RoHS Compliant | Blue | 133.00mm L x 39.00mm W | LCD Graphic Display Modules & Accessories | 50 | Parallel | 240 x 64 | STN - Super-Twisted Nematic | 188.5 mm x 65 mm x 14.3 mm | Bulk | White | 0.49mm x 0.49mm | 240 x 64 | STN Negative | - 20 C to + 70 C | 50 | LCD Graphic Display | NHD-24064WG-AFML-VZ# -ND | - | - | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | - | - | |

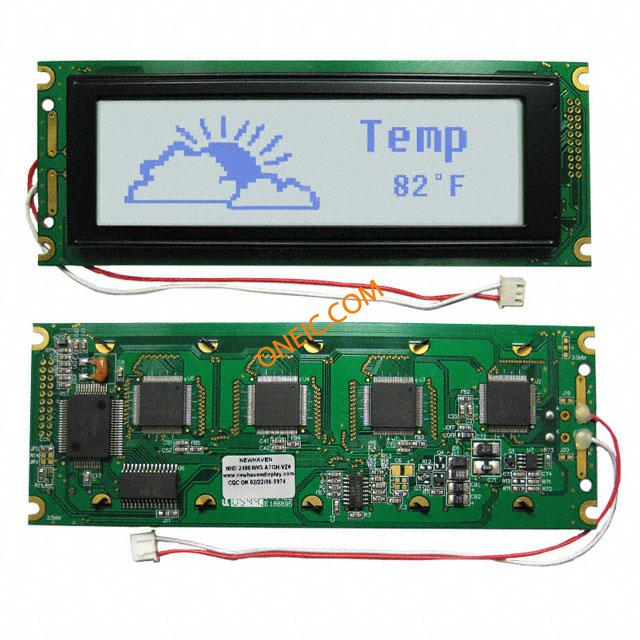

 NHD-24064WG-ATGH-VZ# LCD Graphic Display Modules & Accessories STN-Gray Transfl 180.0 x 65.0 LCD MOD GRAPH 240X64 WH TRANSFL Newhaven Display | 10 | 66: ¥278.188 | - | LED White | Transflective | RoHS Compliant | White | 133.00mm L x 39.00mm W | LCD Graphic Display Modules & Accessories | 50 | Parallel | 240 x 64 | STN - Super-Twisted Nematic | 180 mm x 65 mm x 16 mm | Bulk | Blue | 0.49mm x 0.49mm | 240 x 64 | STN | - 20 C to + 70 C | 50 | LCD Graphic Display | NHD-24064WG-ATGH-VZ# -ND | - | - | - | - | - |

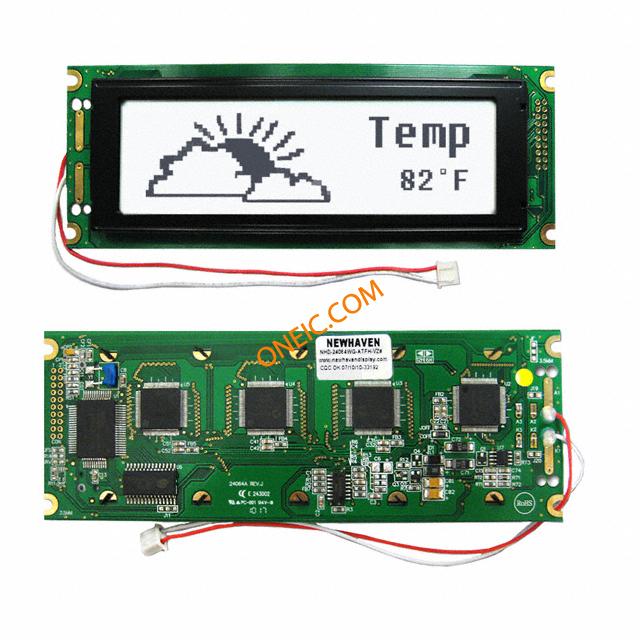

 NHD-24064WG-ATFH-VZ# LCD Graphic Display Modules & Accessories 240 x 64 FSTN(+) 180.0 x 65.0 LCD MOD GRAPH 240X64 WH TRANSFL Newhaven Display | 164 | 1: ¥301.172 | - | LED White | Transflective | RoHS Compliant | White | 133.00mm L x 39.00mm W | LCD Graphic Display Modules & Accessories | 50 | Parallel | 240 x 64 | FSTN - Film Super-Twisted Nematic | 180 mm x 65 mm x 16 mm | Bulk | Gray | 0.49mm x 0.49mm | 240 x 64 | FSTN Positive | - 20 C to + 70 C | 50 | LCD Graphic Display | NHD24064WGATFHVZ | Graphic LCD Modules | - | - | - | - |

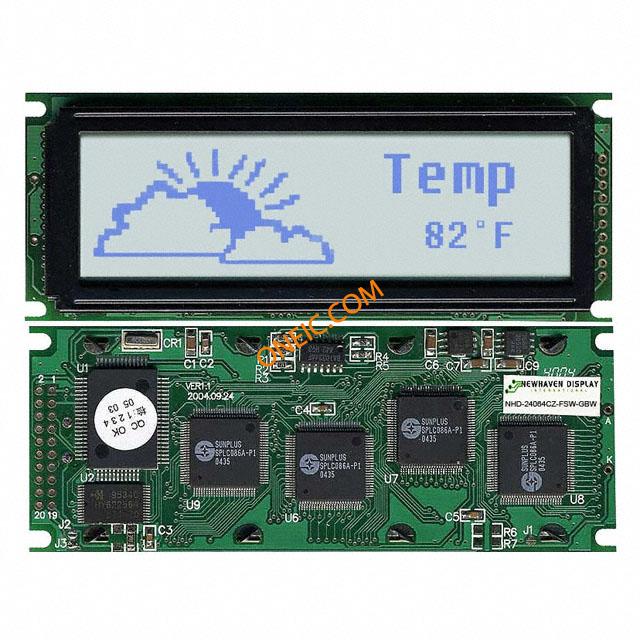

 NHD-24064CZ-FSW-GBW LCD Graphic Display Modules & Accessories STN-Gray Transfl 118.0 x 45.0 LCD MOD GRAPH 240X64 WH TRANSFL Newhaven Display | 10 | 68: ¥272.544 | - | LED White | Transflective | RoHS Compliant | White | 96.00mm L x 30.00mm W | LCD Graphic Display Modules & Accessories | 50 | Parallel | 240 x 64 | STN - Super-Twisted Nematic | 118 mm x 45 mm x 12.5 mm | Bulk | Blue | 0.34mm x 0.34mm | 240 x 64 | STN | - 20 C to + 70 C | 50 | LCD Graphic Display | NHD-24064CZ-FSW-GBW -ND | - | Easy interface with 8-bit MPU, low power consumption | - | - | - |

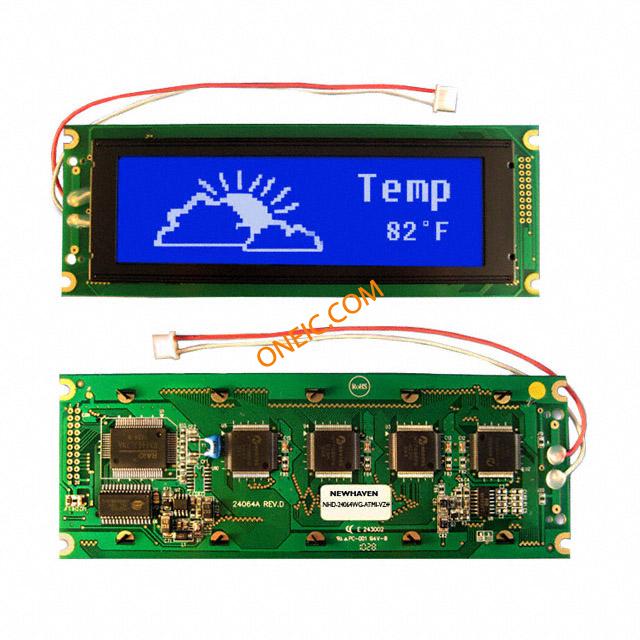

 NHD-24064WG-ATMI-VZ# LCD Graphic Display Modules & Accessories 240 x 64 STN-BL (-) 180.0 x 65.0 LCD GRAPH 240X64 WT TRANSM Graphic Module STN Transmissive 240x64Pixels 20-Pin Newhaven Display | 107 | 1: ¥284.58 | - | LED White | Transmissive | RoHS Compliant | White | 133.00mm L x 39.00mm W | LCD Graphic Display Modules & Accessories | 100 | Parallel | 240 x 64 | STN - Super-Twisted Nematic | 180 mm x 65 mm x 16 mm | Bulk | White | 0.49mm x 0.49mm | 240 x 64 | STN Negative | - 20 C to + 70 C | 50 | LCD Graphic Display | - | - | - | - | - | - |

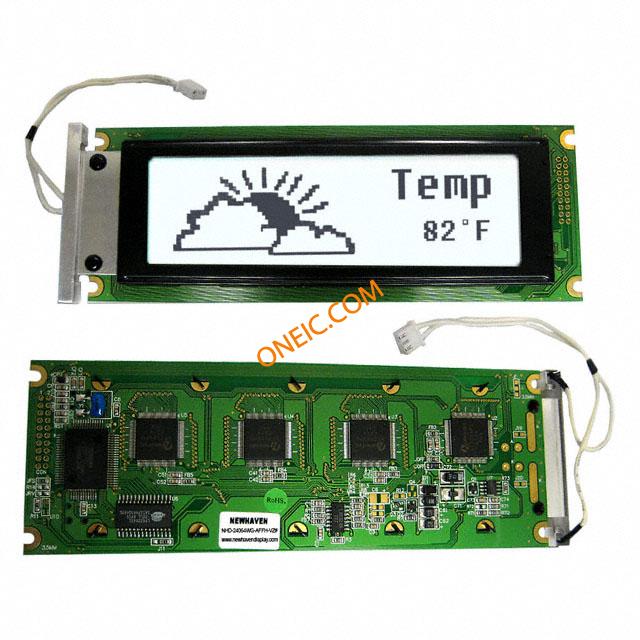

 NHD-24064WG-AFFH-VZ# LCD Graphic Display Modules & Accessories 240 x 64 FSTN(+) 180.0 x 65.0 LCD MOD GRAPH 240X64 WH TRANSFL Newhaven Display | 10 | 66: ¥380.392 | - | CCFL | Transflective | RoHS Compliant | White | 133.00mm L x 39.00mm W | LCD Graphic Display Modules & Accessories | 50 | Parallel | 240 x 64 | FSTN - Film Super-Twisted Nematic | 240 mm x 180 mm x 65 mm | Bulk | Gray | 0.49mm x 0.49mm | 240 x 64 | FSTN Positive | - 20 C to + 70 C | - | - | - | Graphic LCD Modules | - | - | - | - |

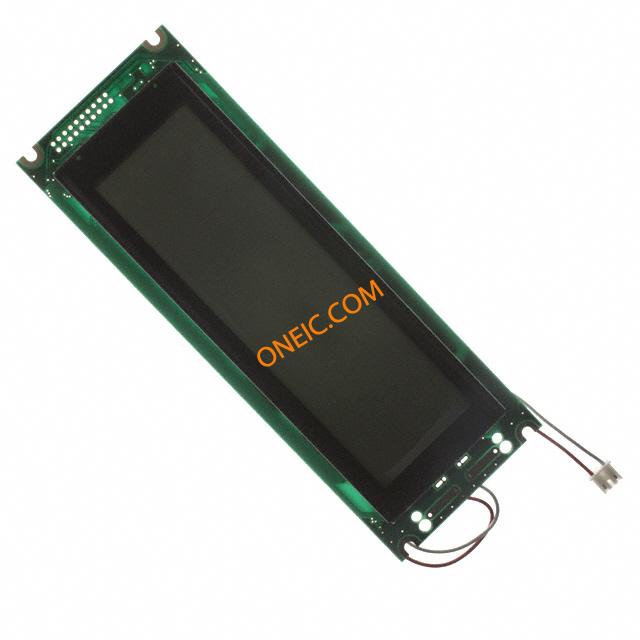

 NHD-24064WG-ASFH-VZ# LCD Graphic Display Modules & Accessories FSTN (+) Transfl 180.0 x 65.0 LCD GRAPH 240X64 WH TRANSFL Newhaven Display | 0 | - | Super Bright White LED | Transflective | RoHS Compliant | Black | 133.00mm L x 39.00mm W | LCD Graphic Display Modules & Accessories | 100 | Parallel | 240 x 64 | FSTN - Film Super-Twisted Nematic | 180 mm x 65 mm x 12.3 mm | Bulk | White | 0.49mm x 0.49mm | 240 x 64 | FSTN Positive | - 20 C to + 70 C | 100 | - | - | Graphic LCD Modules | - | Obsolete | - | - | |
 NHD-24064WG-ASMI-VZ# LCD Graphic Display Modules & Accessories STN-Blue (-) Transm 180.0 x 65.0 Newhaven Display | 0 | - | LED White | Transmissive | RoHS Compliant | Blue | 133 mm x 39 mm | LCD Graphic Display Modules & Accessories | - | - | 240 x 64 | - | 180 mm x 65 mm x 12.3 mm | Bulk | - | - | - | STN Negative | - 20 C to + 70 C | 100 | LCD Graphic Display | - | Graphic LCD Modules | - | Obsolete | No | - | |

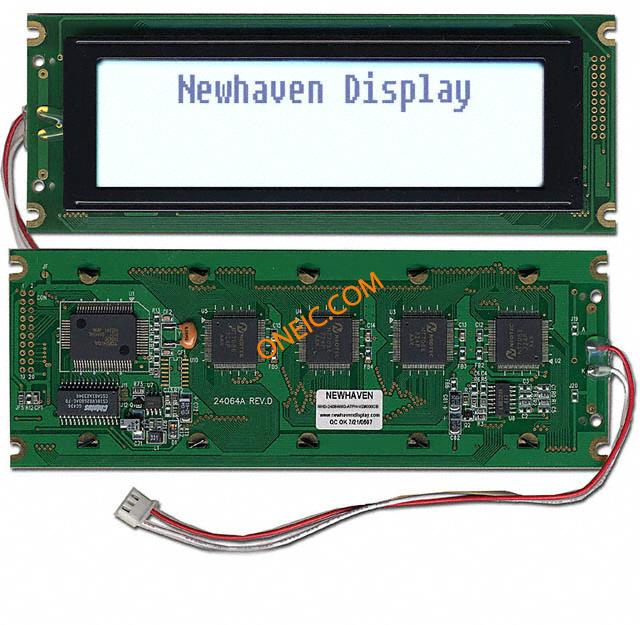

 NHD-24064WG-ATFH-VZ#000-CB LCD Graphic Display Modules & Accessories 240 x 64 FSTN (+) 180.0 x 65.0 Newhaven Display | 0 | - | LED White | Transflective | RoHS Compliant | - | - | LCD Graphic Display Modules & Accessories | - | - | 240 x 64 | - | 240 mm x 180 mm x 65 mm | Bulk | - | - | - | FSTN Positive | - 20 C to + 70 C | - | - | - | Graphic LCD Modules | - | Obsolete | - | - | |
 | 0 | - | LED - White | Transflective | Lead free / RoHS Compliant | White | 133.00mm L x 39.00mm W | - | 50 | Parallel | - | FSTN - Film Super-Twisted Nematic | - | - | Gray | 0.48mm x 0.48mm | 240 x 64 | - | - | - | - | - | - | - | - | - | 0.53mm x 0.53mm | |
 | 0 | - | LED - Green | Transflective | - | Green | 133.00mm L x 39.00mm W | - | 100 | Parallel | - | STN - Super-Twisted Nematic | - | - | Gray | 0.49mm x 0.49mm | 240 x 64 | - | - | - | - | - | - | - | - | - | 0.52mm x 0.52mm | |
| 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
