cigen-NHD-5.0
NHD-5.0 tft displays & accessorie Series
High-quality TFT displays with touch functionality for development and applications
The NHD-5.0 series from Newhaven Display International, Inc., consists of high-resolution TFT displays with integrated touch functionality, making them ideal for a wide range of embedded system and IoT projects. These displays come in various sizes, but the 5-inch model is particularly popular among engineers due to its balance of size and resolution.
If you're working on a project that requires a clear, sharp display with touch capabilities, these NHD-5.0 screens are a solid choice. They often show up in applications like industrial control panels, point-of-sale terminals, and custom user interfaces for automation equipment. The inclusion of touch functionality means you can build more interactive systems without needing external touch controllers, which simplifies your design and reduces costs.
One thing worth noting is the wide viewing angle of these displays, which makes them suitable for environments where multiple users might need to interact with the screen simultaneously. Another practical aspect is their robust construction, which can handle the rigors of industrial settings. Engineers tend to reach for this when they need a reliable, high-performance display that integrates seamlessly into their hardware designs.
Series Images (9)
Documents & Media
Frequently Asked Questions
NHD-5.0 tft displays & accessorie - Part List
6 parts in total| Mfr Part # | Quantity Available | Price | Category | Product | Standard Package | RoHS | Backlight | Interface | Resolution | Display Type | Voltage - Supply | Current - Average Rectified (Io) | Size | Dot Pixels | Touchscreen | Display Mode | Viewing Area | Diagonal Screen Size | Other Specifications | Operating Temperature | Packaging | Product Category | Other Names | Dot Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NHD-5.0-800480TF-ATXI#-CTP TFT Displays & Accessories 5.0 Capacitive TFT w/ Touch Panel DISPLAY TFT MODULE W/ TOUCH Newhaven Display | 79 | 409: ¥401.54 | - | Displays | 1 | RoHS Compliant | LED - White | Parallel, 24-Bit (RGB) | 800 x RGB x 480 | TFT | 2.8 V to 3.3 V | 6 mA | 120.7 mm x 75.8 mm x 23 mm | 800 x 480 (WVGA) | Yes | Transmissive | 109.00mm L x 65.80mm W | * | Touch Panel | - 20 C to + 70 C | Bulk | TFT Displays & Accessories | NHD50800480TFATXICTP | 0.04mm x 0.13mm |

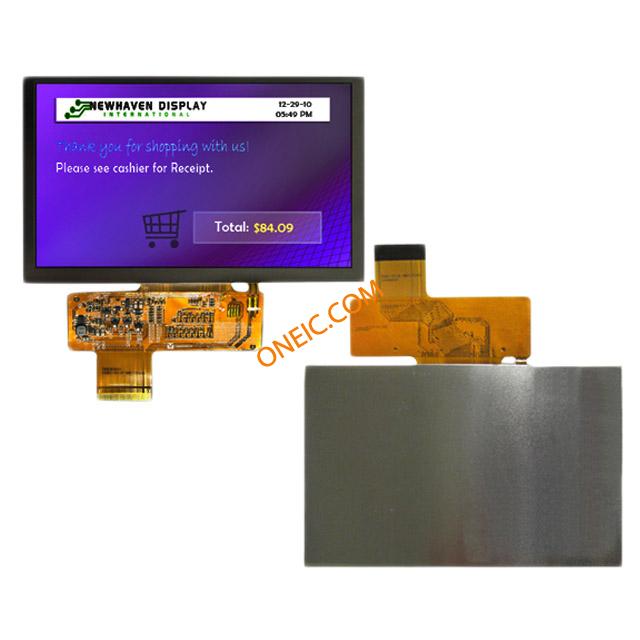

NHD-5.0-800480TF-ATXI# LCD TFT DISPLAY TFT Displays & Accessories 5 800X480 Transmve 24 Bit RGB 3.3V Newhaven Display Intl | 42 | 1: ¥299.20 | - | Displays | 100 | RoHS Compliant | LED - White | Parallel, 24-Bit (RGB) | 800 x RGB x 480 | TFT | 3.3 V | 132 mA | 120.7 mm x 75.8 mm x 3.1 mm | 800 x 480 (WVGA) | No | Transmissive | 109.00mm L x 65.80mm W | * | No Touch Panel | - 20 C to + 70 C | - | TFT Displays & Accessories | - | - |

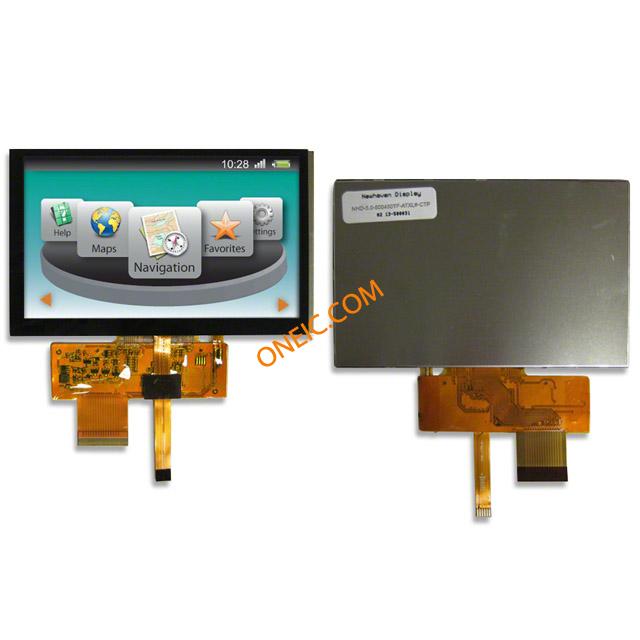

NHD-5.0-800480TF-ATXL#-CTP DISPLAY TFT MODULE W/ TOUCH TFT Displays & Accessories Premium LCD TFT Disp w/ Cap touch panel Newhaven Display Intl | 530 | 1: ¥418.20 | - | Displays | 1 | RoHS Compliant | LED - White | Parallel, 24-Bit (RGB) | 800 x 480 | TFT | 3.3 V | 133 mA | 120.7 mm x 75.8 mm x 4.6 mm | 800 x 480 (WVGA) | Yes | Transmissive | 109.00mm L x 65.80mm W | * | Touch Panel | - 20 C to + 70 C | Bulk | - | - | - |

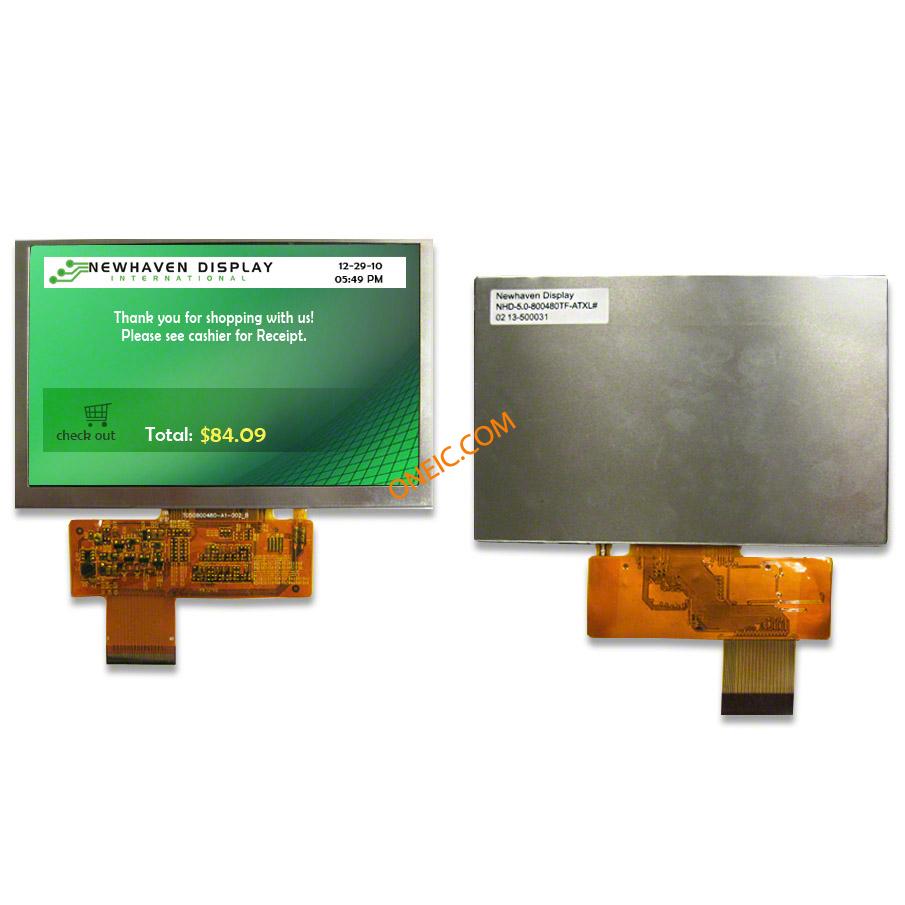

NHD-5.0-800480TF-ATXL# LCD TFT DISPLAY TFT Displays & Accessories Premium LCD TFT Display Newhaven Display Intl | 368 | 1: ¥336.60 | - | Displays | 1 | RoHS Compliant | LED - White | Parallel, 24-Bit (RGB) | 800 x 480 | TFT | 3.3 V | 133 mA | 120.7 mm x 75.8 mm x 3.1 mm | 800 x 480 (WVGA) | No | Transmissive | 109.00mm L x 65.80mm W | * | No Touch Panel | - 20 C to + 70 C | Bulk | - | - | - |

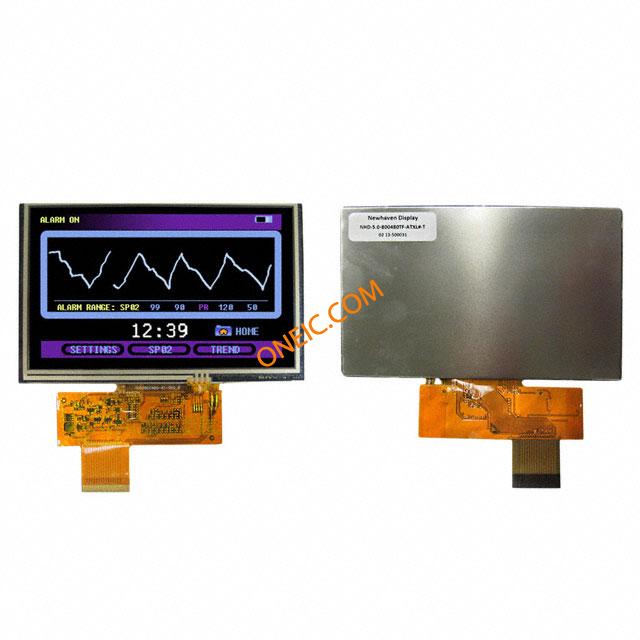

NHD-5.0-800480TF-ATXL#-T DISPLAY LCD TFT TOUCH 40PIN TFT Displays & Accessories 5.0 LCD TFT w/ 40pin resistive touch Newhaven Display Intl | 98 | 1: ¥357.00 | - | Displays | 1 | RoHS Compliant | LED - White | Parallel, 24-Bit (RGB) | 800 x RGB x 480 | TFT | 3.3 V | 164 mA | 120.7 mm x 75.2 mm x 4.3 mm | 800 x 480 (WVGA) | No | Transmissive | 109.00mm L x 65.80mm W | * | Touch Panel | - 20 C to + 70 C | - | - | - | - |
NHD-5.0-800480TF-20 CONTROLLER BOARD Display Development Tools TFT Eval 20 POS FFC For NHD 5.0" TFT Newhaven Display | 37 | 1: ¥204.00 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
