cigen-OA172SAN
OA172SAN oa172 Series
orion-fansAC-powered cooling fans with 235CFM airflow, 3500RPM, and compact dimensions
The OA172SAN and OA172 series from Orion Fans are AC-powered cooling fans designed for applications requiring reliable airflow without taking up too much space. These fans deliver a robust 235 cubic feet per minute (CFM) of airflow at 3500 revolutions per minute (RPM), making them suitable for a range of industrial and commercial cooling needs. If you're working on systems that require efficient heat dissipation in tight spaces—like server racks, enclosures, or industrial machinery—these fans are a solid choice.
One thing worth noting is their compact design. Despite the impressive airflow capacity, these fans maintain a small footprint, which makes them ideal for installations where space is at a premium. Engineers tend to reach for this when they need a powerful cooling solution without adding bulk to the system. Additionally, the AC-powered nature of these fans means they integrate seamlessly into existing power supplies, reducing the complexity of the overall system.
Series Images (12)
Documents & Media
Frequently Asked Questions
OA172SAN oa172 - Part List
5 parts in total| Mfr Part # | Quantity Available | Price | Category | Product | Product Category | Standard Package | RoHS | Noise | Speed | Power (Watts) | Power - Rated | Voltage Range | Voltage Rating | Voltage - Supply | RPM | Air Flow | Fan Type | Termination | Bearing Type | Static Pressure | Housing Material | Material - Blade | Material - Frame | Size / Dimension | Termination Style | Type | Function | Rated Life | Operating Temperature | Frequency | Size | Material | Rotation | Primary Material | Fan Accessory Type | Dimensions - Overall | Series | Direction | Switch Type | Manufacturer | Configuration | Thermal Resistance @ Natural | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OA172SAN-22-1WB Fans 3500RPM 235CFM 46dBA 230V Shaved Side, WL FAN 172X150X50.8 230VAC NATURAL Fan; AC Cooling; 6.8"x5.9"; CFM235 Fan;AC;230V;172x150x51mm;Obround;235CFM;35W;52dBA;3500RPM;Leadwires Orion Fans | 10 | 1: ¥301.58 | - | Fans | Fans | 1 | Compliant | 52 dB | 3500 RPM | 35W | 35 W | 160 ~ 260VAC | 230VAC | 230 V | 3200 RPM | 235.0 CFM (6.65m³/min) | Tubeaxial | 2 Wire Leads | Ball | 0.700 in H2O (174.4 Pa) | Aluminum | Polybutylene Terephthalate (PBT) | Aluminum | Rectangular/Rounded - 172mm L x 150mm H x 50.8mm W | Wire Leads | Obround | AC | 60000 hrs @ 40°C | -40 ~ 158°F (-40 ~ 70°C) | 50/60Hz | 6.8x5.9x2(172x150x51)In.(mm) | DiecastAluminum | CW | Fans | 6.8x5.9x2(172x150x51)In.(mm) | 6.8x5.9x2In. | OA172S | IntakeoverStruts | AC | OA172SANSeries | Obround | 235CFM | 70°C |

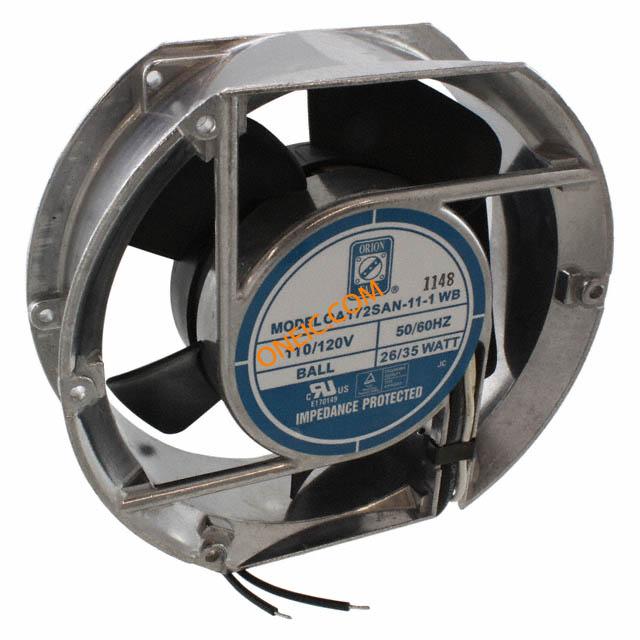

 OA172SAN-11-1WB Fans 3500RPM 235CFM 46dBA 115V Shaved Side, WL FAN 172X150X50.8 115VAC NATURAL Fan; AC Cooling; 6.8"x5.9"; CFM235 Fan;AC;115V;172x150x51mm;Obround;235CFM;35W;52dBA;3500RPM;Leadwires Orion Fans | 53 | 1: ¥301.58 | - | Fans | Fans | 1 | Compliant | 52 dB | 3500 RPM | 35W | 35 W | 80 ~ 130VAC | 115VAC | 115 V | 3200 RPM | 235.0 CFM (6.65m³/min) | Tubeaxial | 2 Wire Leads | Ball | 0.700 in H2O (174.4 Pa) | Aluminum | Polybutylene Terephthalate (PBT) | Aluminum | Rectangular/Rounded - 172mm L x 150mm H x 50.8mm W | Wire Leads | Obround | AC | 60000 hrs @ 40°C | -40 ~ 158°F (-40 ~ 70°C) | 50/60Hz | 6.8x5.9x2(172x150x51)In.(mm) | DiecastAluminum | CW | Fans | 6.8x5.9x2(172x150x51)In.(mm) | 6.8x5.9x2In. | OA172S | IntakeoverStruts | AC | OA172SANSeries | Obround | 235CFM | 70°C |
 OA172SAN-22-1TB Fans 3500RPM 235CFM 46dBA 230V Shaved Side, TL FAN 172X150X50.8 230VAC NATURAL Fan; AC Cooling; 6.8"x5.9"; CFM235 Fan;AC;230V;172x150x51mm;Obround;235CFM;35W;52dBA;3500RPM;Terminals Orion Fans | 45 | 1: ¥415.956 | - | Fans | Fans | 1 | Compliant | 52 dB | 3500 RPM | 35W | 35 W | 160 ~ 260VAC | 230VAC | 230 V | 3200 RPM | 235.0 CFM (6.65m³/min) | Tubeaxial | 2 Terminals | Ball | 0.700 in H2O (174.4 Pa) | Aluminum | Polybutylene Terephthalate (PBT) | Aluminum | Rectangular/Rounded - 172mm L x 150mm H x 50.8mm W | Terminals | Obround | AC | 60000 hrs @ 40°C | -40 ~ 158°F (-40 ~ 70°C) | 50/60Hz | 6.8x5.9x2(172x150x51)In.(mm) | DiecastAluminum | CW | Fans | 6.8x5.9x2(172x150x51)In.(mm) | 6.8x5.9x2In. | OA172S | IntakeoverStruts | AC | OA172SANSeries | Obround | 235CFM | 70°C |

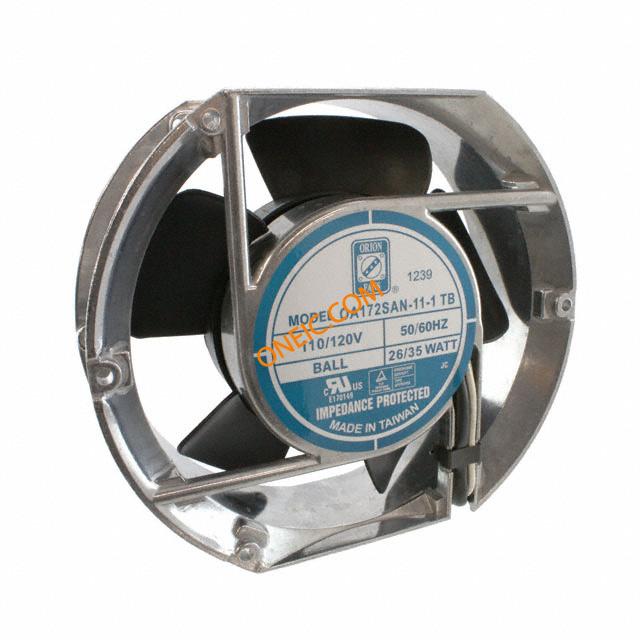

 OA172SAN-11-1TB Fans 3500RPM 235CFM 46dBA 115V Shaved Side, TL FAN 172X150X50.8 115VAC NATURAL Fan; AC Cooling; 6.8"x5.9"; CFM235 Fan;AC;115V;172x150x51mm;Obround;235CFM;35W;52dBA;3500RPM;Terminals Orion Fans | 16 | 1: ¥303.62 | - | Fans | Fans | 1 | Compliant | 52 dB | 3500 RPM | 35W | 35 W | 80 ~ 130VAC | 115VAC | 115 V | 3200 RPM | 235.0 CFM (6.65m³/min) | Tubeaxial | 2 Terminals | Ball | 0.700 in H2O (174.4 Pa) | Aluminum | Polybutylene Terephthalate (PBT) | Aluminum | Rectangular/Rounded - 172mm L x 150mm H x 50.8mm W | Terminals | Obround | AC | 60000 hrs @ 40°C | -40 ~ 158°F (-40 ~ 70°C) | 50/60Hz | 6.8x5.9x2(172x150x51)In.(mm) | DiecastAluminum | CW | Fans | 6.8x5.9x2(172x150x51)In.(mm) | 6.8x5.9x2In. | OA172S | IntakeoverStruts | AC | OA172SANSeries | Obround | 235CFM | 70°C |
 OA172SAN-11-2WB FAN 172X150X50.8 115VAC NATURAL Fans 172x150x50.8 115VAC 170CFM Natural Color Orion Fans | 10 | 1: ¥278.80 | - | Fans | Fans | 12 | RoHS Compliant | 42 dB | 2400 RPM | 20.0W | 20 W | 80 ~ 130VAC | 115VAC | 115 V | 2400 RPM | 170.0 CFM (4.81m³/min) | Tubeaxial | 2 Wire Leads | Ball | 0.490 in H2O (122.1 Pa) | Aluminum | Polybutylene Terephthalate (PBT) | Aluminum | Rectangular/Rounded - 172mm L x 150mm H x 50.8mm W | Wire Leads | Axial Fans | AC | 60000 hrs @ 40°C | -40 ~ 158°F (-40 ~ 70°C) | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
