PD210 LED Series

Multicolor LED lamps for AC/DC voltage applications

The PD210 LED series from Pfannenberg GmbH is a versatile multicolor LED lamp designed for use in both AC and DC voltage applications. These lamps are commonly found in industrial control panels, signage, and lighting systems where color-coded status indication is crucial. If you're working on projects that require robust, reliable lighting solutions with multiple color options, these LEDs are a solid choice.

One thing worth noting is their wide operating voltage range, which makes them suitable for environments with fluctuating power supplies. Engineers tend to reach for this series when they need consistent color output across different voltage conditions. Another practical benefit is their durability; they are built to withstand harsh industrial settings, ensuring long-lasting performance even in challenging environments.

Series Images (3)

Frequently Asked Questions

Content generated by AI, for reference only
Loading...
03

PD210 LED - Part List

6 parts in total

Color - Connectors

Current

Voltage - Supply (Min)

Weight

Mfr Part #Quantity AvailablePriceCategoryBulbCurrentCapacitanceSignal TypesVoltage - Supply (Min)Voltage - Protection Level (VP) (2416)SizeWeightTerminationMounting TypeConnector TypeColor - ConnectorsExterior Housing MaterialRated LifeOperating Temperature
PD2100-LED 24V AC/DC GE
PD2100-LED 24V AC/DC GE

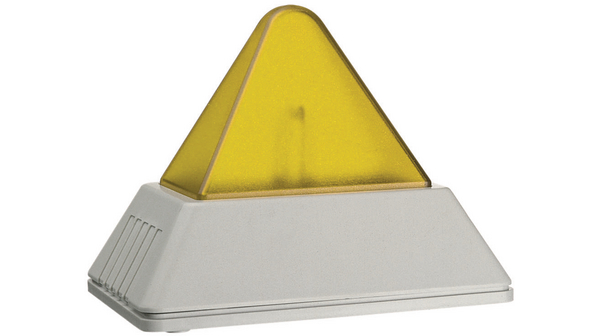

LED continuous lamp, yellow, 19...27 VAC/DC, PD2100-LED 24V AC/DC GE, Pfannenberg

Pfannenberg

0-LED115PolycarbonateContinuous19...27 VAC/DCIP 55166 x 111 x 128 mm270Screw terminalBase mountingScrewsyellowABSup to 50 000 h-25...+55 °C
PD2100-LED 24V AC/DC RO
PD2100-LED 24V AC/DC RO

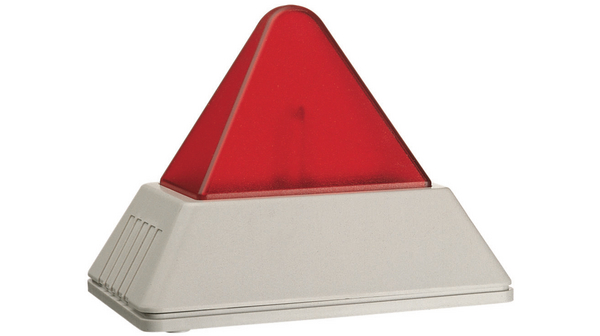

LED continuous lamp, red, 19...27 VAC/DC, PD2100-LED 24V AC/DC RO, Pfannenberg

Pfannenberg

0-LED115PolycarbonateContinuous19...27 VAC/DCIP 55166 x 111 x 128 mm270Screw terminalBase mountingScrewsredABSup to 50 000 h-25...+55 °C
PD2100-LED 24V AC/DC GR
PD2100-LED 24V AC/DC GR

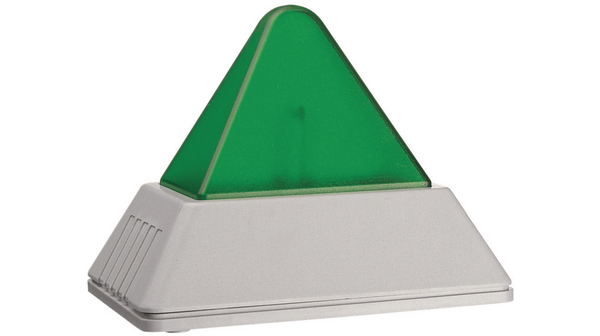

LED continuous lamp, green, 19...27 VAC/DC, PD2100-LED 24V AC/DC GR, Pfannenberg

Pfannenberg

0-LED115PolycarbonateContinuous19...27 VAC/DCIP 55166 x 111 x 128 mm270Screw terminalBase mountingScrewsgreenABSup to 50 000 h-25...+55 °C
PD2100-LED 230V AC GE
PD2100-LED 230V AC GE

LED continuous lamp, yellow, 210...250 VAC, PD2100-LED 230V AC GE, Pfannenberg

Pfannenberg

0-LED12PolycarbonateContinuous210...250 VACIP 55166 x 111 x 128 mm380Screw terminalBase mountingScrewsyellowABSup to 50 000 h-25...+55 °C
PD2100-LED 230V AC RO
PD2100-LED 230V AC RO

LED continuous lamp, red, 210...250 VAC, PD2100-LED 230V AC RO, Pfannenberg

Pfannenberg

0-LED12PolycarbonateContinuous210...250 VACIP 55166 x 111 x 128 mm380Screw terminalBase mountingScrewsredABSup to 50 000 h-25...+55 °C
PD2100-LED 230V AC GR
PD2100-LED 230V AC GR

LED continuous lamp, green, 210...250 VAC, PD2100-LED 230V AC GR, Pfannenberg

Pfannenberg

0-LED12PolycarbonateContinuous210...250 VACIP 55166 x 111 x 128 mm380Screw terminalBase mountingScrewsgreenABSup to 50 000 h-25...+55 °C
