cigen-SBT-70-WDH
SBT-70-WDH sbt-70 Series
High-power daylight white LEDs with 5700K color temperature
The SBT-70-WDH series from Luminus Devices, Inc., is a lineup of high-power daylight white LEDs with a color temperature of 5700K. These LEDs are designed for applications requiring bright, daylight-like illumination. If you're working on projects that need a cool, bright white light source—such as general illumination, automotive lighting, or security systems—the SBT-70-WDH could be a great fit.
One thing worth noting is the consistent color temperature across the series. This makes them particularly useful in applications where maintaining a uniform appearance is important, such as in retail environments or large-scale outdoor installations. Engineers tend to reach for these LEDs when they need a reliable, high-lumen output that closely mimics natural sunlight without the need for additional color correction.
Another practical benefit is their robust design, which includes features like thermal management and lumen maintenance over time. This ensures long-lasting performance and reduces the need for frequent replacements, making them a cost-effective choice for demanding applications. Overall, the SBT-70-WDH series offers a balanced mix of performance and reliability, making it a solid option for a wide range of lighting needs.
Series Images (2)
Documents & Media
Frequently Asked Questions
SBT-70-WDH sbt-70 - Part List
7 parts in total| Mfr Part # | Quantity Available | Price | Category | Standard Package | Voltage | Current - Output | Driver Circuitry | Current Rating (Max) | Color | Connector Usage | Configuration | Luminous Flux @ Current/Temperature | RoHS | Packaging | Factory Pack Quantity | Wavelength | Luminous Flux | LED Forward Current | LED Forward Voltage | Width | Height | Length | Lamp Color | Illumination Color | CRI (Color Rendering Index) | Other Names |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | - | 25 | 3.7V | 10.5A | No | 10.5A | White, Cool | No | Square | 1160 lm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
| 0 | - | 25 | 3.7V | 10.5A | No | 10.5A | White, Cool | No | Square | 1335 lm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||

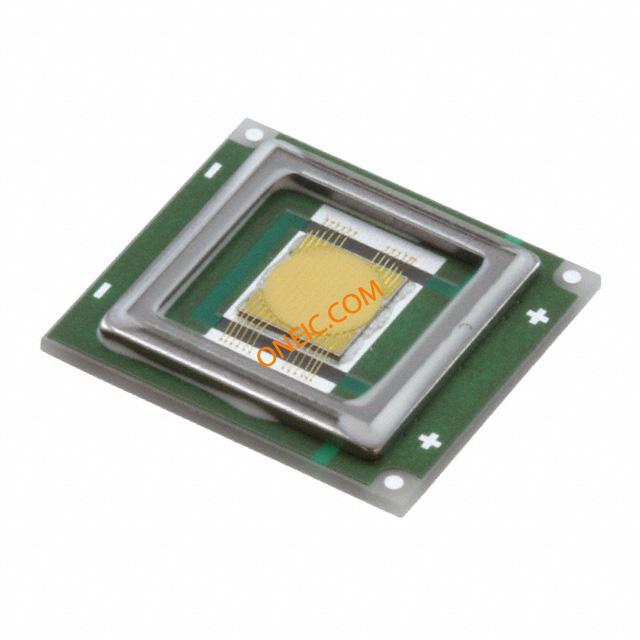

SBT-70-WDH-F75-KB220 BIG CHIP LED WHT 1120LM 5700K High Power LEDs - White Daylight White 5700K 1120lm, 10.5A, Round Luminus Devices, Inc. | 30 | 1: ¥368.56 | - | 10 | 3.7V | 10.5A | No | 10.5A | White, Cool | No | Square | 1160 lm | RoHS Compliant | Tray | 25 | 5665K | - | - | - | - | - | - | - | - | - | - |
| 0 | - | 25 | 3.7V | 10.5A | No | 10.5A | White, Cool | No | Square | 1245 lm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
SBT-70-WDH-F75-LA220 BIG CHIP LED WHT 1290LM 5700K High Power LEDs - White Daylight White 5700K 1290lm, 10.5A, Round Luminus Devices, Inc. | 144 | 1: ¥304.776 | - | 10 | 3.7V | 10.5A | No | 10.5A | White, Cool | No | Square | 1245 lm | RoHS Compliant | Tray | 25 | - | 1290 lm | 10.5 A | 3.9 V | 10 mm | 1.54 mm | 11 mm | 5700 K | Cool White | 90 | - |
| 0 | - | 25 | 3.7V | 10.5A | No | 10.5A | White, Cool | No | Square | 1335 lm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||

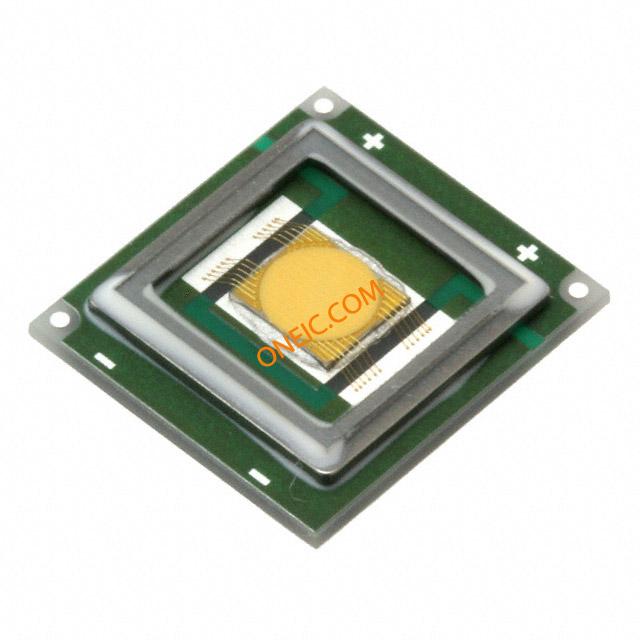

SBT-70-WDH-F75-KA220 BIG CHIP LED DAYLIGHT WHITE High Power LEDs - White Daylight White 5700K 1120lm, 10.5A, Round Luminus Devices, Inc. | 19 | 1: ¥344.352 | - | 25 | 3.7V | 10.5A | No | 10.5A | White, Cool | No | Square | 1080 lm | RoHS Compliant | Tray | - | 5665K | - | - | - | - | - | - | - | - | - | 1214-1174 |
