TT-MF Series
Dual-range voltage probes for oscilloscopes up to 250 MHz

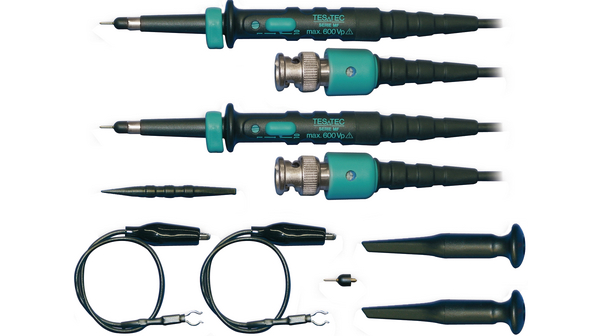

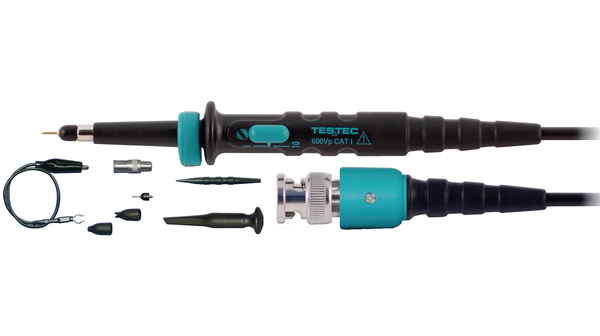

The TT-MF series from Testec Elektronik GmbH is a dual-range voltage probe designed for oscilloscopes with a bandwidth up to 250 MHz. These probes come in handy when you need to measure both high and low voltage signals without changing probes, which saves time and reduces errors. If you're working on projects involving RF circuits, digital electronics, or any application requiring precise voltage measurements up to 250 MHz, these probes can be a valuable addition to your toolkit.
One thing worth noting is that the dual-range capability allows you to start with a higher range setting and then switch to a lower range if needed, without losing the signal. This feature is particularly useful during initial testing phases when you're unsure of the signal levels. Engineers tend to reach for this when they need flexibility and accuracy in their measurements, especially in setups where signal strength can vary widely. The 250 MHz bandwidth ensures that these probes are suitable for a wide range of applications, from basic lab work to more complex RF testing scenarios.
Series Images (4)
Documents & Media
Frequently Asked Questions
TT-MF - Part List
5 parts in total| Mfr Part # | Quantity Available | Price | Category | Input Impedance | Rise Time (Typ) | Bandwidth | Attenuation - Typ | Weight | Standard Number | Ratio - Input:Output | Length - Overall | Design | SVHC | Tariff No | Capacitance | Voltage - Continuous Operating (Max) (MCOV) | 1st Connector | 2nd Connector Type | Length - Lead Wire | Probe Temperature Range | Frequency | Voltage - Input (Max) | Package Quantity | Spg | Features | Probe Type | Accessory Type | Number of Units |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 1: ¥246.16 | - | :10Mohm | :1.4ns | :250MHz | :x1 / x10 | 0.16 | - | - | - | - | :No SVHC (20-Jun-2013) | 85369010 | :15pF | :600V | :BNC Plug | :- | :1.2m | :- | - | - | - | - | - | - | - | - | |
| 0 | - | 10MΩ/15pF (10:1), 1MΩ/47pF (1:1) | 1,4ns (10:1), 18ns (1:1) | - | 1:1/10:1 | 0.09 kg | - | - | - | - | - | - | - | - | - | - | - | - | ≤20MHz (1:1) ≤250MHz (10:1) | 600V | 10 | 10 | 120cm cable length with BNC plug | passive | oscilloscope probe | 1 | ||
TT-MF312-2-6 11020-2-6 TESTEC | 42 | 1: ¥536.50 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 0 | - | 15 | 1.4 | 250 | - | - | CAT I 600 V | 1:1 | 1.2 m | Voltage | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
| 0 | - | 15 | 1.4 | 250 | - | - | CAT I 600 V | 1:1 | 1.2 m | Voltage | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
