WP-23502 microphone Series

Omnidirectional, flat response microphones with -52dB sensitivity

The WP-23502 series from Knowles Corporation is an omnidirectional microphone with a flat frequency response and a sensitivity of -52dB. These microphones are designed to capture sound evenly from all directions, making them ideal for applications where capturing ambient noise or speech from multiple sources is important.

If you're working on audio systems for conference rooms or video conferencing solutions, these microphones can be a great fit. Their flat response ensures that the captured audio is consistent across the entire frequency range, which is crucial for maintaining clear and balanced sound quality. Additionally, their omnidirectional nature allows them to pick up sounds from all around, reducing the need for multiple microphones and simplifying the design.

One thing worth noting is their sensitivity level. With a sensitivity of -52dB, they require a bit more amplification compared to some other microphone types, but this is typically manageable with standard audio processing techniques. Engineers tend to reach for this type of microphone when they need a versatile solution that can handle a variety of audio environments without significant loss in quality.

Series Images (5)

Documents & Media

PDF Document
PDF Document
PDF Document
PDF Document

Frequently Asked Questions

Content generated by AI, for reference only
Loading...
03

WP-23502 microphone - Part List

5 parts in total

Impedance

Voltage Rating

Frequency Range

Depth

Width

Length

Termination

Height (Max)

Mfr Part #Quantity AvailablePriceCategoryProduct CategoryStandard PackageRoHSImpedanceOutput TypeSensitivityFrequency RangeDepthShapeWidthLengthPackagingTerminationHeight (Max)Port LocationSize / DimensionTypeSeriesDirectionOther SpecificationsSeal RatingVoltage RatingCurrent - OutputVoltage - Supply (Min)Termination StyleCurrent Rating (Max)

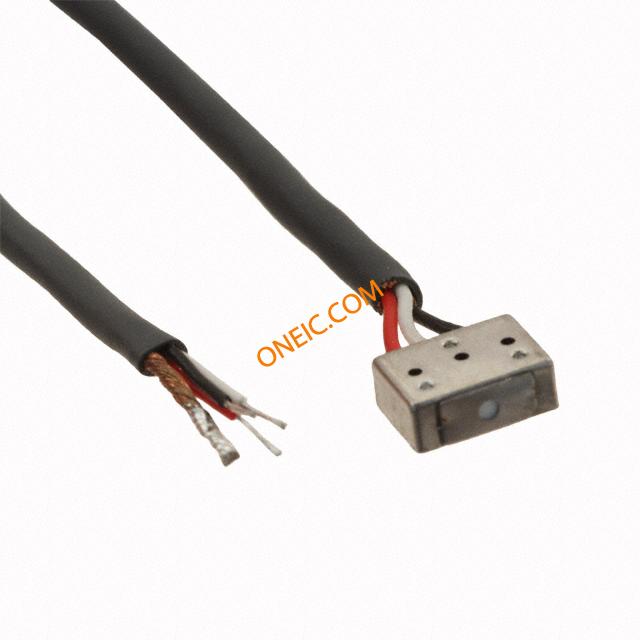

WP-23502-P16
3
WP-23502-P16

Microphones -52 Sens, Flat Resp Omni 25dB -100dB MIC COND ANALOG NOISE CAN -52DB

Knowles Acoustics

271: ¥157.828-Microphones1RoHS Compliant4.4 K OhmsAnalog- 52 dB100Hz ~ 4kHz1.1 mmRectangular3.76 mm4.72 mmBulkWire Leads2.26mmTop5.56mm L x 3.99mm WElectret CondenserWPOmnidirectionalOmnidirectionalWaterproof1.3 ~ 10V50µA1.3 VWire Leads-
WP-23502-P49
WP-23502-P49

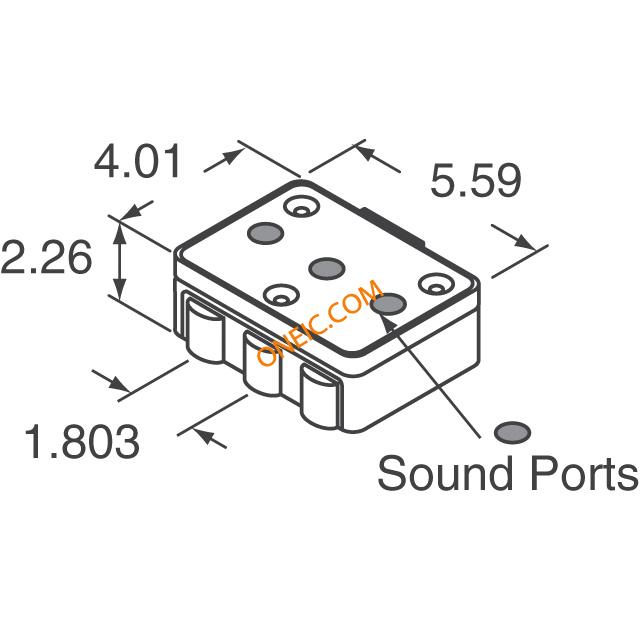

Microphones 4.0 X 5.59 X 2.28MM -52 SENS, FLAT RESP MICROPHONE

Knowles Acoustics

1030: ¥196.9892-Microphones1RoHS Compliant4.4 kOhmAnalog- 52 dB100Hz ~ 4kHz1.1 mmRectangular3.76 mm4.72 mmBulkSolder Pads2.21mmTop5.56mm L x 3.99mm WElectret CondenserWPOmnidirectionalOmnidirectionalWaterproof-----

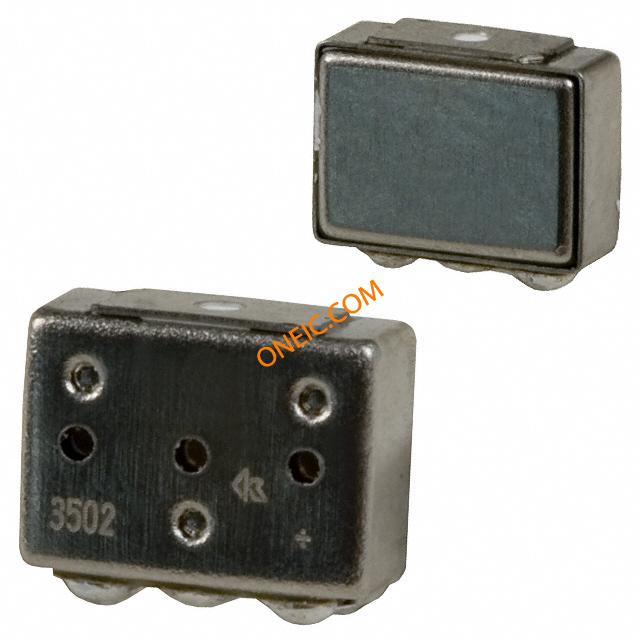

WP-23502-000
3
WP-23502-000

Microphones -52 Sens, Flat Resp Omni 25dB -100dB MIC COND ANALOG OMNI -52DB

Knowles Acoustics

621: ¥157.828-Microphones1RoHS Compliant4.4 kOhmsAnalog- 52 dB100Hz ~ 4kHz1.1 mmRectangular3.76 mm4.72 mmBulkSolder Pads2.26mmTop5.56mm L x 3.99mm WElectret CondenserWPOmnidirectionalOmnidirectionalWaterproof1.3V50µA1.3 VWire Leads-

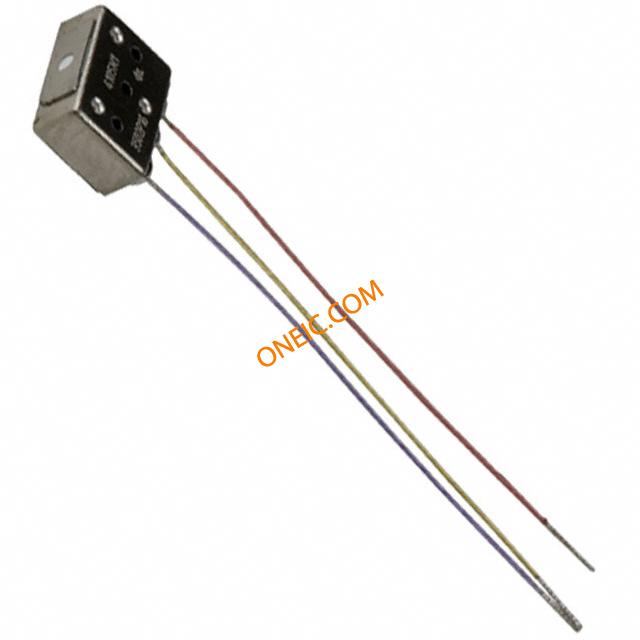

WP-23502-P07
3
WP-23502-P07

Microphones 4.0 X 5.59 X 2.28MM -52 SENS, FLAT RESP MIC COND ANALOG OMNI -52DB

Knowles Acoustics

151: ¥212.296-Microphones1RoHS Compliant4400 OhmsAnalog- 52 dB100Hz ~ 10kHz2.28 mmRectangular4 mm5.59 mmBulkWire Leads2.21mmTop5.56mm L x 3.99mm WElectret CondenserWPOmnidirectionalOmnidirectionalWaterproof1.3 ~ 10V50µA1.3 VWire Leads50 uA
WP-23502
WP-23502

MIC ELECTRET OMNI WATERPROOF

Knowles Acoustics

0---------------------------
