cigen-XB24CZ7
XB24CZ7 zigbee / 802.15.4 module Series
Surface-mount Zigbee modules with various antenna options for wireless communication
The XB24CZ7 series from Digi International is a lineup of surface-mount Zigbee and 802.15.4 modules designed for reliable, low-power wireless communication. These modules are perfect for projects requiring compact form factors and robust connectivity. If you're working on smart home devices, industrial control systems, or any IoT application that needs to integrate seamlessly into existing networks, these modules are a solid choice.
One thing worth noting is the variety of antenna options included. This flexibility allows engineers to optimize the module’s performance based on the specific deployment environment, whether it’s a confined space or an open area with potential obstructions. Another practical aspect is the module’s compatibility with Digi’s broader ecosystem, making integration with other Digi products straightforward.
Engineers tend to reach for this when they need a flexible, low-power solution that can be easily integrated into their designs without compromising on performance. The XB24CZ7 series offers a good balance between functionality and ease of use, making it a go-to option for many wireless communication projects.

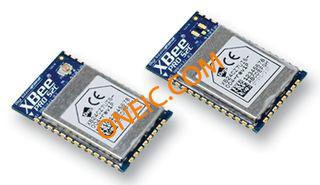

Series Images (17)
Documents & Media
Frequently Asked Questions
XB24CZ7 zigbee / 802.15.4 module - Part List
7 parts in total| Mfr Part # | Quantity Available | Price | Category | Other Names | Standard Package | RoHS | Data Rate | Frequency | Memory Size | Sensitivity | Output Power | Sensing Range | Data Interface | Power - Output | Data Rate (Max) | Current - Supply | Voltage - Supply | Current - Receiving | Current - Transmitting | Current - Supply (Main IC) | Frequency Bands (Low / High) | Packaging | Package / Case | Size / Dimension | Antenna Connector | Applications | Modulation or Protocol | Operating Temperature | Tariff No | Weight | Type | Module/Board Type | MCU Supported Families |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

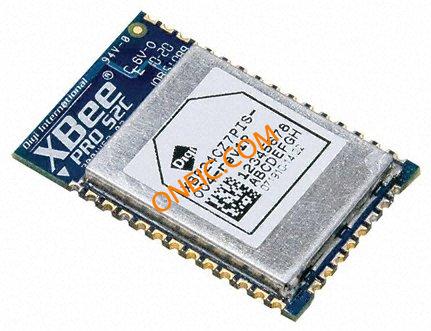

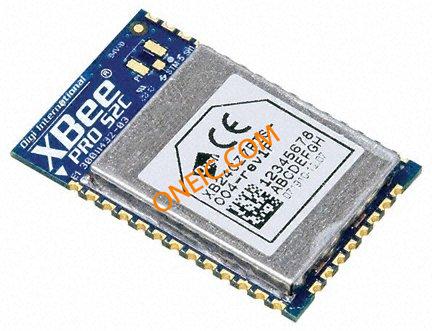

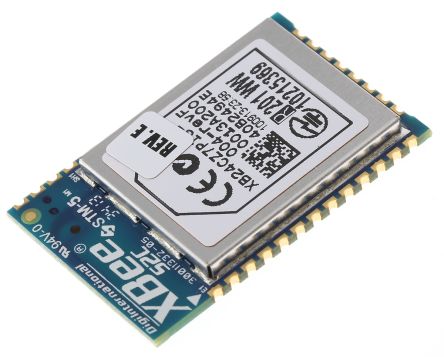

XB24CZ7PISB003 Zigbee / 802.15.4モジュール Xbee ZB SMT RF pad ant250k bps prog XBEE MODULE Zigbee / 802.15.4 Modules Xbee ZB SMT RF pad ant250k bps prog Digi International | 12 | 1: ¥137.70 | - | 602-1247 | 1 | RoHS Compliant | 250 kbps | 2.4GHz | 32kB Flash, 2kB RAM | -102dBm | 3.1 mW | 1200 m | PCB, Surface Mount | 8dBm | 250kbps | 42 mA | 2.1 V ~ 3.6 V | 42mA | 47mA | 47 mA | 2.4 GHz | Bulk | Module | 1.33 mm x 0.96 mm | On-Board, Trace | ISM | DSSS | -40°C ~ 85°C | - | - | - | - | - |

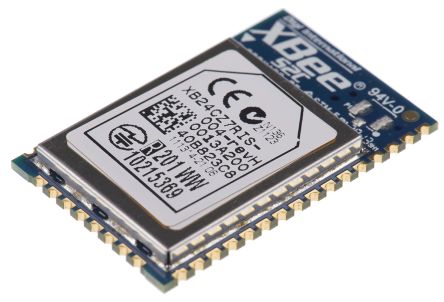

XB24CZ7RISB003 Zigbee / 802.15.4モジュール Xbee ZB SMT PCB ant. 250k bps prog XBEE MODULE Zigbee / 802.15.4 Modules Xbee ZB SMT PCB ant. 250k bps prog ZIGBEE MOD, XBEE ZB, SMT, RF PAD ANT Digi International | 16 | 1: ¥137.70 | - | 602-1248 | 1 | RoHS Compliant | 250 kbps | 2.4GHz | 32kB Flash, 2kB RAM | -102dBm | 3.1 mW | 1200 m | PCB, Surface Mount | 8dBm | 250kbps | 42 mA | 2.1 V ~ 3.6 V | 42mA | 47mA | 47 mA | 2.4 GHz | Bulk | Module | 1.33 mm x 0.96 mm | PCB, Surface Mount | ISM | DSSS | -40°C ~ 85°C | 85423990 | 0.003 | :- | :SPI, UART | :EM357 |

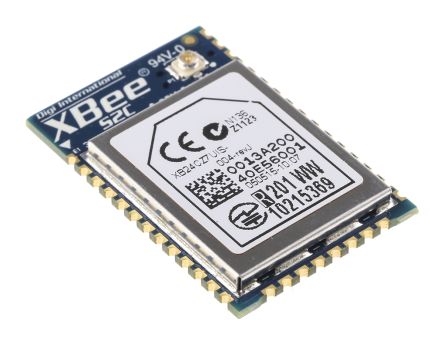

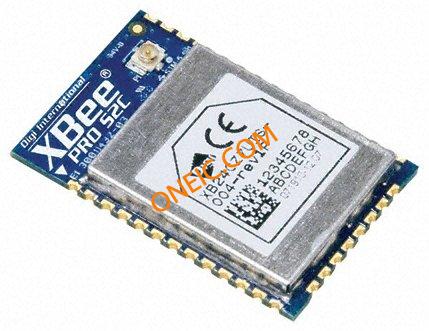

XB24CZ7UISB003 Zigbee / 802.15.4モジュール Xbee ZB SMT U.Fl ant con250k bps prog XBEE MODULE Zigbee / 802.15.4 Modules Xbee ZB SMT U.Fl ant con250k bps prog ZIGBEE MOD, XBEE ZB, SMT, U.FL CONN Digi International | 24 | 1: ¥137.70 | - | 602-1246 | 1 | RoHS Compliant | 250 kbps | 2.4GHz | 32kB Flash, 2kB RAM | -102dBm | 3.1 mW | 1200 m | PCB, Surface Mount | 8dBm | 250kbps | 42 mA | 2.1 V ~ 3.6 V | 42mA | 47mA | 47 mA | 2.4 GHz | Bulk | Module | 1.33 mm x 0.96 mm | U.FL | ISM | DSSS | -40°C ~ 85°C | 85423990 | 0.003 | :- | :SPI, UART | :EM357 |
| 26 | 1: ¥137.70 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 15 | 1: ¥137.70 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 13 | 1: ¥137.70 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 23 | 1: ¥244.2076 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
