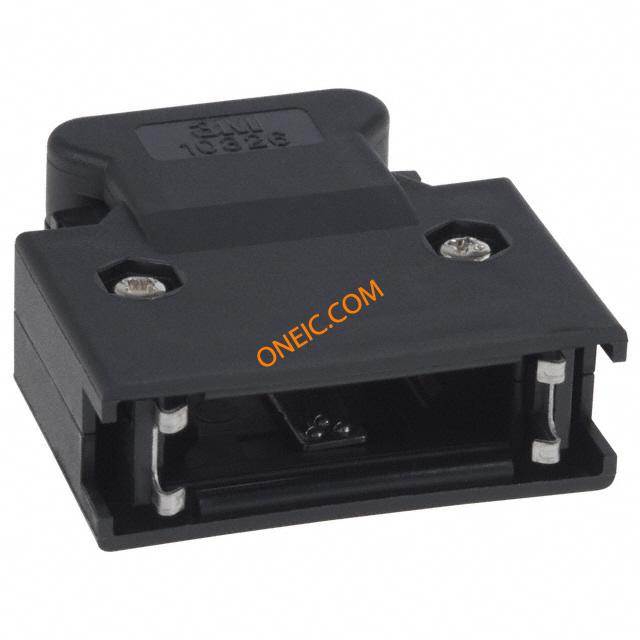

10326-52F0-008
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 100 | Unit Pack | 100 |
| Part # Aliases | 90169009365 JE150188280 | Product Category | D-Sub Backshells |
| Standard Package | 100 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | RoHS-conform | Approval Agency | UL 94V-0 |
| RoHS Compliance | Yes | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current Rating (Max) | METALA | ||
Mechanical
| Color | Black | Depth | 39 mm |
| Height | 14 mm | Weight | 1 lb |
| Material | Polybutylene Terephthalate, Glass Filled | Shielding | Unshielded |
| Cable Exit | 180° | Cable Type | Round |
| Shell Size | 26Positions | Orientation | STRAIGHT |
| Mounting Type | Straight | Cable Diameter | 0.050In. |
| Cable End Type | Straight | Connector Type | :Backshell |
| Mounting Style | for cable | Number of Rows | 02 |
| Shell Material | Polyester, Glass Reinforced | Connector Usage | plug housing |
| Locking Feature | lock | Material - Body | :Glass Reinforced Polyester |
| Housing Material | IDC | Length - Overall | 37.2 mm |
| Package Quantity | 100 | Color - Connectors | Black |
| Number of Contacts | 26 | Number of Positions | 26 |
| Shell Size - Insert | :- | Number of Cable Pairs | 1 |
| Backshell Material, Plating | Plastic | ||
Product Info
| Spg | 100 | Type | Two Piece Backshell |
| Series | 103 | DELETED | Compliant |
| Features | Latch Lock | Hardware | Assembly Hardware, Strain Relief |
| Matchcode | 1032652F0008 | Manufacturer | 103Series |
| Accessory Type | Two Piece Backshell | Number of Units | 1 |
| Standard Leadtime | 12 weeks | Other Specifications | NO |
| For Use With/Related Products | :Mini D Ribbon 101XX-3000VE Plug Connectors | ||
Environmental
| Operating Temperature | -20 TO 85°C | ||
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- 75119.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
