点击放大查看
2516-6002UB
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 05400782721 80610565113 | Product Category | Headers & Wire Housings |
| Standard Package | 560 | Factory Pack Quantity | 1 |
Compliance
| RoHS | No | Tariff No | 85369010 |
| Approval Agency | cUL,UL | Material Flammability Rating | UL94V-0 |
Electrical
| Current Rating (Max) | 2A | ||
Mechanical
| Color | Gray | Pitch | 0.100" (2.54mm) |
| Weight | 0.002 | Packaging | Bulk |
| Cable Exit | LowProfile | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Length - Pin | 0.243" | Mounting Type | Through Hole |
| Angle of Throw | Straight | Connector Type | Header, Shrouded |
| Contact Finish | Gold | Number of Rows | 2 |
| Contact Material | :Copper Alloy | Housing Material | GlassFilledPolyester |
| Length - Overall | 1.088" | Pin Hole Diameter | 0.1" |
| Termination Style | Through Hole | Number of Contacts | :16 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 16 |
| Contact Length - Mating | 0.243" (6.17mm) | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | Box Header | Gender | :Header |
| Series | 2500 | Features | Breakaway,Four-Wall |
| Manufacturer | 2500Series | Product Type | Headers |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -55to+105°C | ||
Documents & Media
Online Document
Similar Parts
3452-7016
3m interconnect solutions
$91.3920
Details
3452-6616
3m interconnect solutions
$15.1892
Details
CHG-2016-001010-KCP
3m interconnect solutions
$159.8560
Details
89116-0111
3m interconnect solutions
$4.6750
Details
3452-6000
3m interconnect solutions
$16.6260
Details
D89116-0001HK
3m interconnect solutions
$7.1196
Details

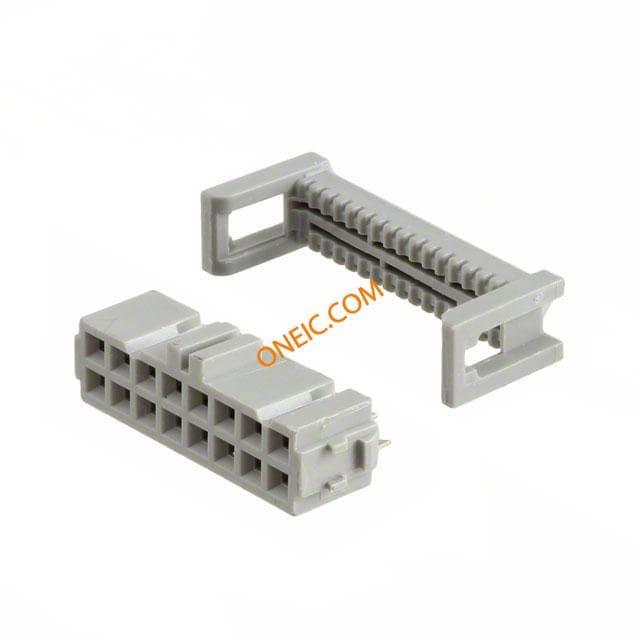

D89116-0101HK
3m interconnect solutions
$7.9397
Details
D89116-0131HK
3m interconnect solutions
$7.1400
Details
D89116-0031HK
3m interconnect solutions
$8.0824
Details
8516-4500PL
3M Electronic Solutions Division
$15.8800
Details
89116-0001
3M Electronic Solutions Division
$3.1416
Details

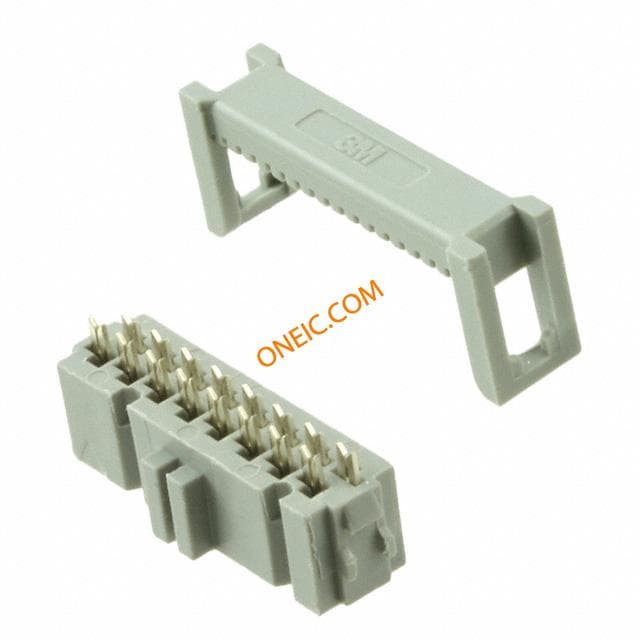

89116-0103
3M Electronic Solutions Division
$9.0869
Details

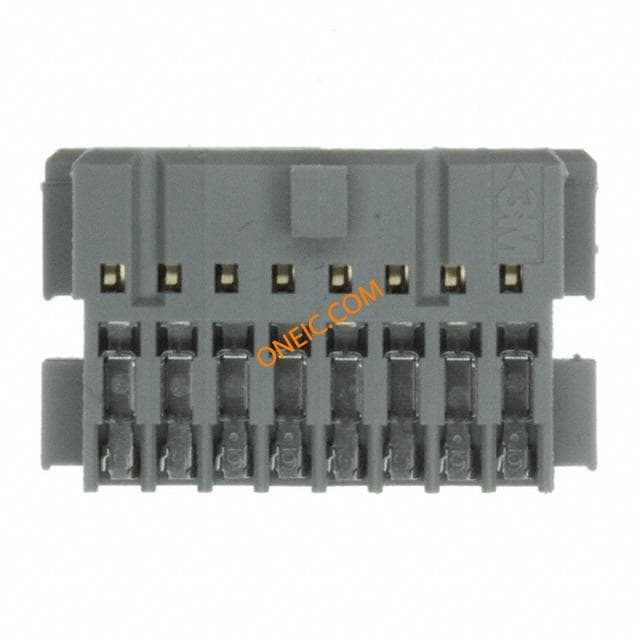

CHG-2016-J01010-KCP
3M Electronic Solutions Division
$21.8960
Details
3452-7616
3M Electronic Solutions Division
$19.8339
Details
3452-6016
3M Electronic Solutions Division
$21.7600
Details
89116-0101HA
3M Electronic Solutions Division
$6.9897
Details

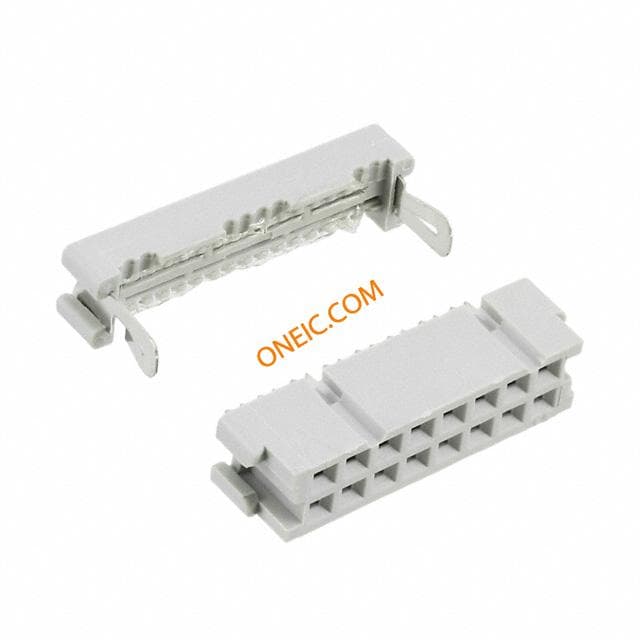

3452-7000
