点击放大查看

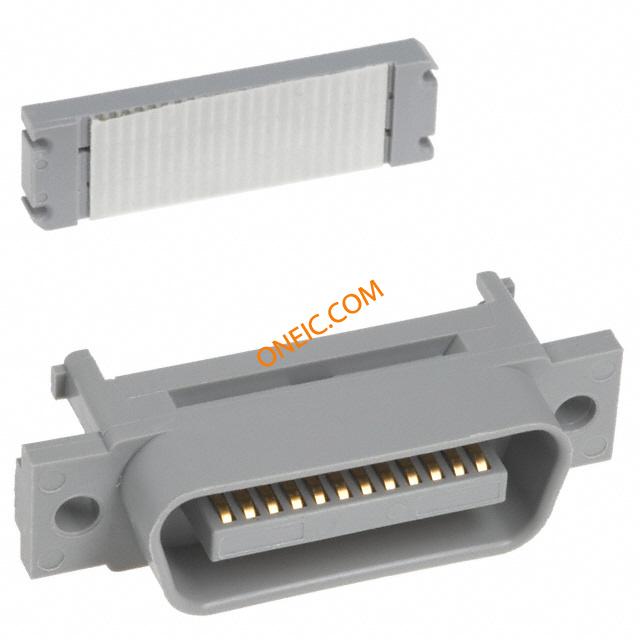

3548-1000
| Manufacturer | |
| Description | D-Sub Standard Connectors 24P LOPRO WRMNT PLUG Molded Shell, Low profile plug DELTA CONN 24POS PLUG W/O INSERT D-SubConnector;Plastic;RoundConductorFlat;26to28AWG;0.05in.;24 |
| Category |
商业参数
| 零件号别名 | 05400732226 80610090237 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 认证机构 | cUL,UL |
| RoHS合规（认证） | Yes | 材料阻燃等级 | UL94V-0 |
电气参数
| 最大额定电流 | 1 A | ||
机械参数
| 重量 | 4.400 lbs | 电缆类型 | RoundConductorFlat |
| 导线线规 | 28-26 | 端接方式 | IDC |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Gold |
| 行程角度 | Straight | 导体类型 | 0.05 |
| 连接器类型 | Plug | 接触镀层 | Nickel |
| 法兰特征 | Hollow, Unthreaded | 安装样式 | Wire |
| 排数 | 2 | 连接器样式 | Center Strip Contacts |
| 触头材料 | Copper Alloy | 壳体材料 | Plastic |
| 主要材料 | D-Ribbon | 触点数 | 24 |
| 介电材料 | PBT | 位数 | 24 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | CablePlug | 连接器性别 | Male |
| 系列 | 3000 | 制造商全称 | 3000 |
| 应用细节 | Commercial | ||
