4616-6001

点击放大查看

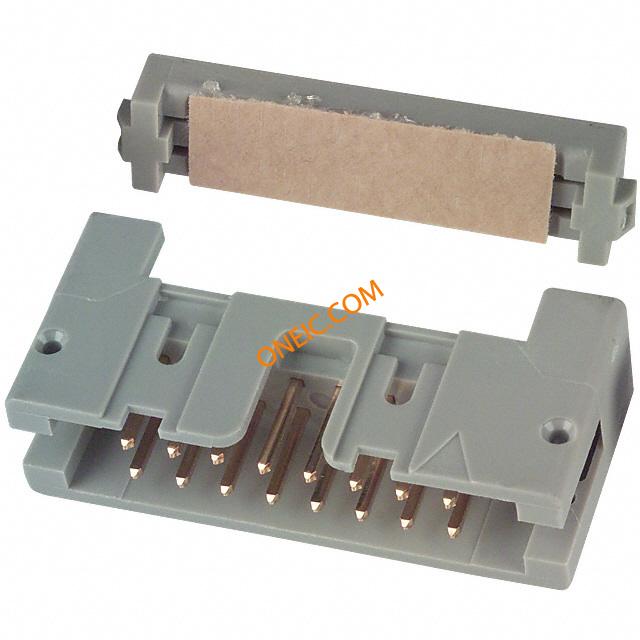

4616-6001

Manufacturer
3M Company
Description
Headers & Wire Housings 16P OPEN END PLUG IDC SHROUDED HEADER .100" × .100" Connector For .050" Pitch Cable PLUG CONNECTOR 16 POS W/O FLANGE 3M 4600 Series 2.54mm Pitch 16 Way 2 Row Right Angle PCB Header, IDT Termination, 1A Conn Ejector Header PL 16 POS 2.54mm IDT RA Cable Mount HEADER, IDC, NO LUGS, 16WAY Conn;Rect;Plug;Wiremount;0.100in;for0.050inPitchCable Pin strip DIN 41651 16P, 4616-6001, 3M 3M 4600 系列 2.54mm节距 16路 (2排) 直角 IDC 连接器, IDT端接, 1A , 电缆安装
Category
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名05400735679 80610170625产品类别Headers & Wire Housings
标准包装数量300工厂包装数量100

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (19-Dec-2012)
海关税号85369010RoHS合规（认证）Yes

电气参数

量程（°/s）:3M - 4600 Series最大额定电流1A

机械参数

颜色Gray深度8.4 mm
间距0.100" (2.54mm)高度13.34 mm
重量1.400 lbs包装方式Bulk
导线类型Discrete or Ribbon Cable导线线规26-28 AWG, Stranded or Solid
排间距0.100" (2.54mm)端接方式IDT
触头类型Male Pin外壳颜色Gray
安装类型Free Hanging (In-Line)连接器类型Plug
接触镀层Gold安装样式Wire
排数2触头材料Copper Alloy
壳体材料Polybutylene Terephthalate (PBT)总长度30.5 mm
电缆端接方式IDC第一触头极性Pin (Male)
触点数16接触件端接:IDC / IDT
位数16接触镀层厚度30µin (0.76µm)
第一连接器安装类型:Cable

产品信息

类型Ejector Header连接器性别PL
系列4600已删除Compliant
产品特性Feed Through产品子类型Headers
应用细节Wire-to-Wire

环境参数

工作温度-55C to 105C

Documents & Media

PDF Document
6352.pdf
Online Document
mediawebserver?mwsId=66666UuZjcFSLXTt4Xf6NXz6EVuQEcuZgVs6EVs6E666666--
