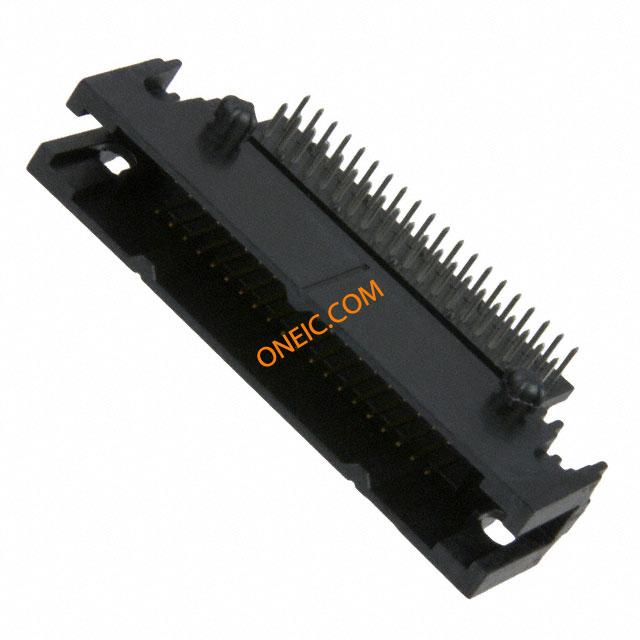

81040-500203-RB
| Manufacturer | |
| Description | Headers & Wire Housings 40P RA TRIPOL HDR NO LATCHES .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN HEADER 40POS R/A THRU HOLE |
| Category |
商业参数
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | RoHS合规（认证） | Yes |
机械参数
| 颜色 | Black | 间距 | 0.050" (1.27mm) |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 排数 | 2 |
| 位数 | 40 | 接触长度 - 配合 | 0.140" (3.56mm) |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 产品特性 | Board Lock | 加载位置数 | All |
Documents & Media
相关型号
3505-28
3M Electronic Solutions Division
Headers & Wire Housings LONG LATCH/EJECTOR .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN LONG EJECTOR LATCH FOR MHDR
3505-28B
3m interconnect solutions
Connector Accessories Long Ejector Latch Liquid Cristal Polymer Black .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN LONG EJECTOR LATCH FOR MHDR Long ejector latch for connectors Headers & Wire Housings LONG EJECTOR LATCH 1PIECE BLACK LATCH, LONG MINIIDCHEADEJECTORS 3M 弹射闩锁, 使用于810 系列
82040-6006RB
3m interconnect solutions
Conn IDC Connector SKT 40 POS 1.27mm IDT RA Cable Mount CONN SOCKET 40POS W/STRAIN REF Headers & Wire Housings 40 POSITION BOARDMT/TRIPOL SKT
82040-6006
3M Electronic Solutions Division
Headers & Wire Housings 40P TRIPLRZD SOCKET WITH STRAIN RELIEF .050" Ã .100" Tripolarized Wiremount for .025" Pitch Cable CONNECTOR RECEPT W/STRAIN 40POS Socket,WireMount;Tripolarized;40;CopperAlloy;0.5A;0.025in.;30AWG
82040-6000
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング 40P TRIPLRZD SOCKET NO STRAIN RELIEF .050" Ã .100" Tripolarized Wiremount for .025" Pitch Cable CONN SOCKET 40POS W/O STRAIN Headers & Wire Housings 40P TRIPLRZD SOCKET NO STRAIN RELIEF
3505-29B
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング SHORT EJECTOR LATCH .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN SHORT EJECT LATCH FOR MHDR Short ejector latch for male connector LATCH, SHORT SHORTEJECTORLATCH 3M 弹射闩锁, 使用于810 系列
3505-29
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング SHORT LATCH/EJECTOR .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN SHORT EJECT LATCH FOR MHDR

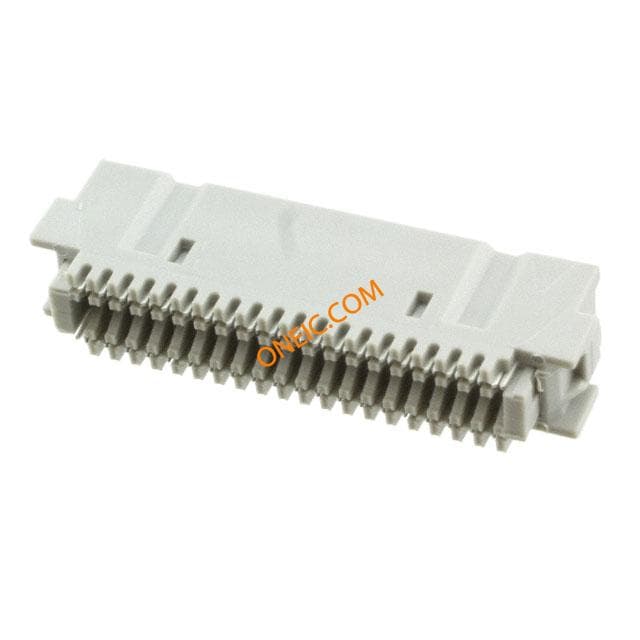

82040-6000RB
