81040-600C01-WF
| Manufacturer | |
| Description | Headers & Wire Housings 40 CON STR .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN HEADER 40POS STR SMD |
| Category |
商业参数
| 零件号别名 | 05111153510 80400013530 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 150 | 工厂包装数量 | 150 |
合规参数
| RoHS | No | ||
电气参数
| 最大额定电流 | 500 mA | ||
机械参数
| 颜色 | Natural | 间距 | 0.050" (1.27mm) |
| 重量 | 3 lbs | 包装方式 | Tape & Reel (TR) |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Surface Mount |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 端接样式 | Through Hole | 位数 | 40 |
| 接触长度 - 配合 | 0.140" (3.56mm) | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Latch / Eject Header | 系列 | 810 |
| 产品子类型 | Headers | 加载位置数 | All |
Documents & Media
相关型号
3505-28
3M Electronic Solutions Division
Headers & Wire Housings LONG LATCH/EJECTOR .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN LONG EJECTOR LATCH FOR MHDR
3505-28B
3m interconnect solutions
Connector Accessories Long Ejector Latch Liquid Cristal Polymer Black .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN LONG EJECTOR LATCH FOR MHDR Long ejector latch for connectors Headers & Wire Housings LONG EJECTOR LATCH 1PIECE BLACK LATCH, LONG MINIIDCHEADEJECTORS 3M 弹射闩锁, 使用于810 系列
82040-6006RB
3m interconnect solutions
Conn IDC Connector SKT 40 POS 1.27mm IDT RA Cable Mount CONN SOCKET 40POS W/STRAIN REF Headers & Wire Housings 40 POSITION BOARDMT/TRIPOL SKT
82040-6006
3M Electronic Solutions Division
Headers & Wire Housings 40P TRIPLRZD SOCKET WITH STRAIN RELIEF .050" Ã .100" Tripolarized Wiremount for .025" Pitch Cable CONNECTOR RECEPT W/STRAIN 40POS Socket,WireMount;Tripolarized;40;CopperAlloy;0.5A;0.025in.;30AWG
82040-6000
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング 40P TRIPLRZD SOCKET NO STRAIN RELIEF .050" Ã .100" Tripolarized Wiremount for .025" Pitch Cable CONN SOCKET 40POS W/O STRAIN Headers & Wire Housings 40P TRIPLRZD SOCKET NO STRAIN RELIEF
3505-29B
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング SHORT EJECTOR LATCH .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN SHORT EJECT LATCH FOR MHDR Short ejector latch for male connector LATCH, SHORT SHORTEJECTORLATCH 3M 弹射闩锁, 使用于810 系列
3505-29
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング SHORT LATCH/EJECTOR .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN SHORT EJECT LATCH FOR MHDR

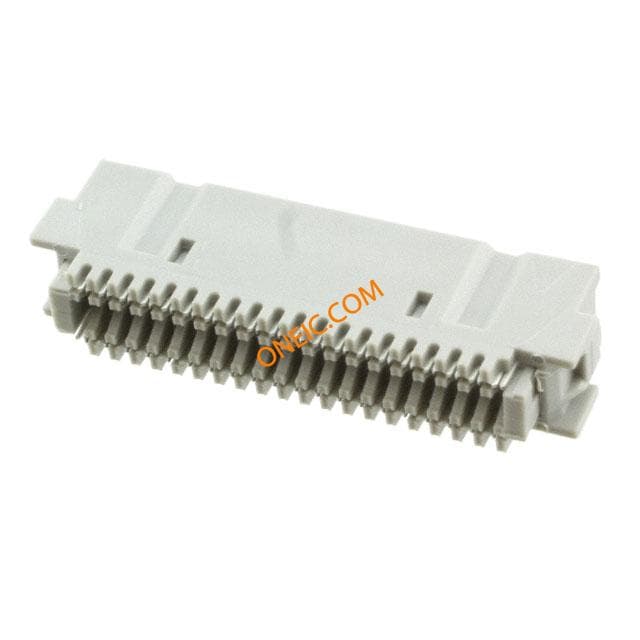

82040-6000RB
