点击放大查看

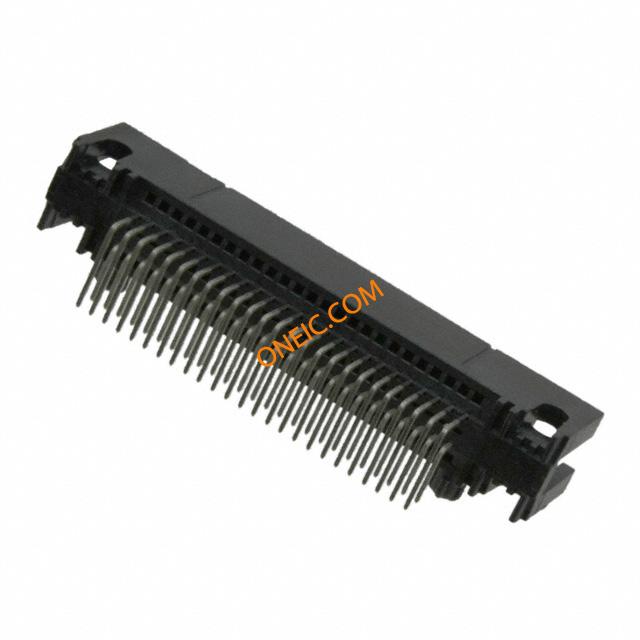

81050-500203-RB
| Manufacturer | |
| Description | ヘッダ & ワイヤハウジング 50P RA TRIPOL HDR NO LATCHES .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN HEADER 50POS R/A THRU HO HEADER, R/A, 50WAY |
| Category |
商业参数
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| RoHS合规（认证） | Yes | ||
电气参数
| 量程（°/s） | :3M - 810 Series | ||
机械参数
| 颜色 | Black | 间距 | 0.050" (1.27mm) |
| 重量 | 0.039 | 包装方式 | Bulk |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 排数 | 2 | 触头材料 | :Copper |
| 触点数 | :50 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 50 | 接触长度 - 配合 | 0.140" (3.56mm) |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 连接器性别 | :Header | 产品特性 | Board Lock |
| 加载位置数 | All | ||
