点击放大查看

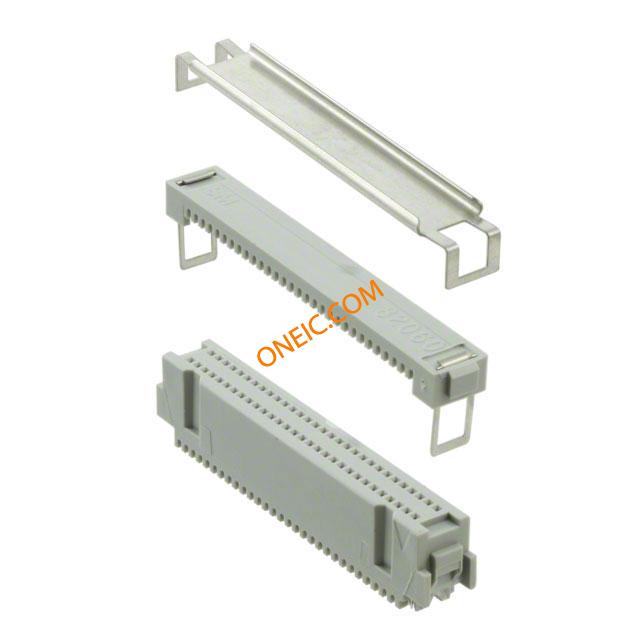

82060-6006RB
| Manufacturer | |
| Description | Headers & Wire Housings 60P MDR CONN SOCKET 60POS W/STRAIN REF MINI IDC CABLE SKT 60W MINIIDCCABLESKT60W 3M 2行 60路 1.27mm节距 直角 母 IDC 连接器 , 电缆安装 |
| Category |
商业参数
| 零件号别名 | 05111165361 80400029577 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Not Applicable | ||
电气参数
| 最大额定电流 | 0.5A | ||
机械参数
| 颜色 | Gray | 间距 | 0.050" (1.27mm) |
| 包装方式 | Bulk | 导线类型 | Ribbon Cable |
| 导线线规 | 30 AWG | 方向 | 直角 |
| 排间距 | 0.100" (2.54mm) | 端接方式 | IDT |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Gold |
| 安装样式 | Free Hanging | 排数 | 2 |
| 触头材料 | Beryllium Copper | 壳体材料 | PBT |
| 端接排数 | IDT | 电缆端接方式 | IDC |
| 触点数 | 60 | 位数 | 60 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 连接器性别 | Female | 系列 | 820 |
| 产品特性 | Feed Through, Strain Relief | 产品子类型 | Receptacles / Sockets - Housings |
环境参数
| 工作温度 | +105°C | ||
