点击放大查看

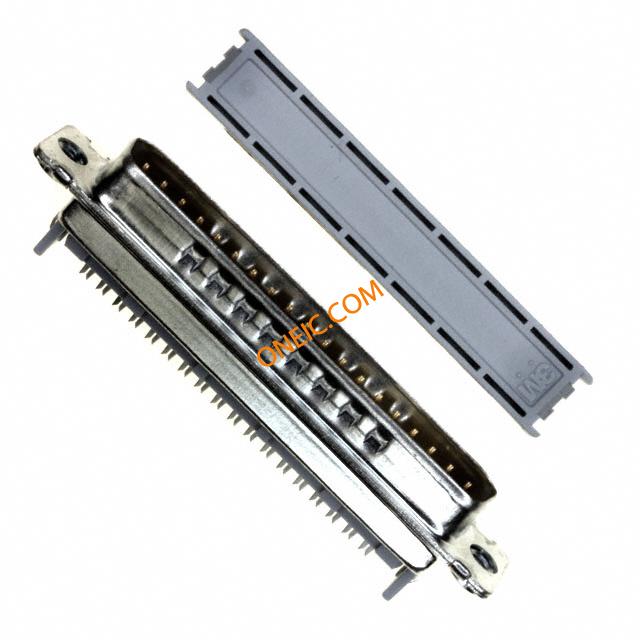

8237-6003
| Manufacturer | |
| Description | D-Sub Standard Connectors 37P OPEN COVER PLUG LOW PROFILE Low profile Plug Connector CONN DSUB PLUG 37POS IDC GOLD D-Sub Connector; Plug; Copper Alloy; Gray; Steel; Tin; 37; 8200 Series D SUB CONNECTOR, STANDARD, 37POS, PLUG Conn;D-Sub;CablePlug;37Cnt;8200Series;Gray;CopperAlloy;26,28AWG 3M 8200 系列 1.27mm 节距 37 路 IDC D-sub 连接器, 插头, 聚碳酸酯 (PBT)外壳 |
| Category |
商业参数
| 零件号别名 | 00189587070 DE610012333 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 认证机构 | cUL,UL | RoHS合规（认证） | Yes |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 量程（°/s） | :3M - 8200 Series | 最大额定电流 | 1 A |
机械参数
| 颜色 | Gray | 重量 | 4.300 lbs |
| 包装方式 | Tray | 外壳尺寸 | :DC |
| 导线线规 | 28-26 | 端接方式 | IDC, Ribbon Cable |
| 触头类型 | Signal | 基体材料 | :Steel |
| 安装类型 | Straight | 外壳镀层 | Tin |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (4-40) |
| 外壳涂层 | Tin | 安装样式 | Wire |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 本体材料 | :Metal |
| 触头材料 | Copper Alloy | 壳体材料 | Polyester, Glass Filled |
| 主要材料 | D-Subminiature | 触点数 | 37 |
| 接触件端接 | :IDC / IDT | 介电材料 | PBT |
| 位数 | 37 | 外壳材料及表面处理 | Steel, Tin Plated |
| 接触镀层厚度 | 30µin (0.76µm) | 外壳尺寸，连接器布局 | 4 (DC, C) |
产品信息
| 类型 | CablePlug | 连接器性别 | Male |
| 系列 | 8200 | 产品特性 | Feed Through, Grounding Indents |
| 制造商全称 | 8200 | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
