点击放大查看

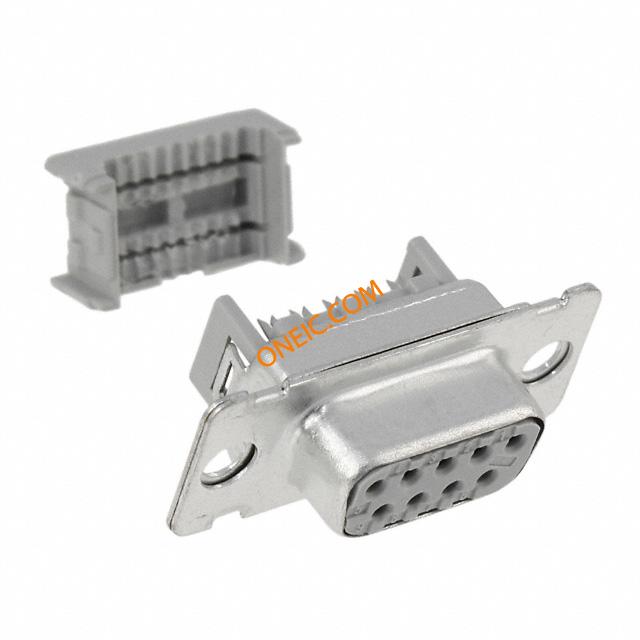

8309-7000
| Manufacturer | |
| Description | D-Sub Standard Connectors 9P CLOSD COVR SOCKET LOW PROFILE Socket Connector CONN D-SUB RCPT 9POS IDC GOLD Conn D-Subminiature SKT 9 POS 2.76mm IDT RA Cable Mount 9 Terminal 1 Port |
| Category |
商业参数
| 零件号别名 | 05400736808 80610186118 | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | RoHS合规（认证） | Yes |
电气参数
| 最大额定电流 | 1 A | ||
机械参数
| 颜色 | Gray | 包装方式 | Bulk |
| 端接方式 | IDC, Ribbon Cable | 触头类型 | Signal |
| 安装类型 | Panel Mount | 外壳镀层 | Tin |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Wire |
| 排数 | 2 | 连接器样式 | D-Sub |
| 壳体材料 | Polyester, Glass Filled | 触点数 | 9 |
| 位数 | 9 | 外壳材料及表面处理 | Steel, Tin Plated |
| 接触镀层厚度 | 30µin (0.76µm) | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 连接器性别 | Female | ||
环境参数
| 机械寿命 | Obsolete | 工作温度 | -55°C ~ 105°C |
