点击放大查看

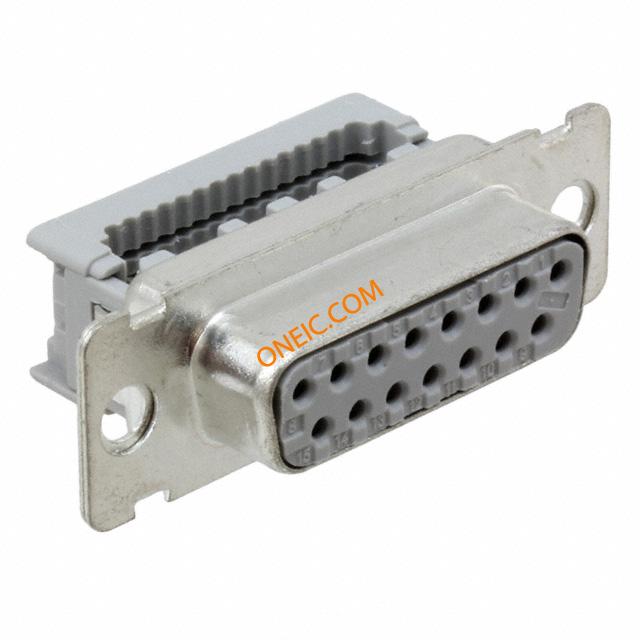

8315-8000
| Manufacturer | |
| Description | D-Sub Standard Connectors 15P OPEN COVR SOCKET UNTHREADED INSERT CONN D-SUB RCPT 15POS IDC GOLD Connector,Socket;CopperAlloy;Nickel(Underplating);1.56in. |
| Category |
商业参数
| 零件号别名 | 04671903138 DE610012754 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 200 | 工厂包装数量 | 200 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 1 A | ||
机械参数
| 颜色 | Gray | 重量 | 4.200 lbs |
| 包装方式 | Bulk | 端接方式 | IDC, Ribbon Cable |
| 触头类型 | Signal | 安装类型 | Panel Mount |
| 外壳镀层 | Tin | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Wire | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 触头材料 | Copper Alloy | 壳体材料 | Polyester, Glass Filled |
| 总长度 | 1.56in. | 端接样式 | IDC |
| 触点数 | 15 | 位数 | 15 |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | 30µin (0.76µm) |
| 外壳尺寸，连接器布局 | 2 (DA, A) | ||
产品信息
| 连接器性别 | Female | 系列 | 8300 |
| 产品特性 | Feed Through | 制造商全称 | 8300 |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
