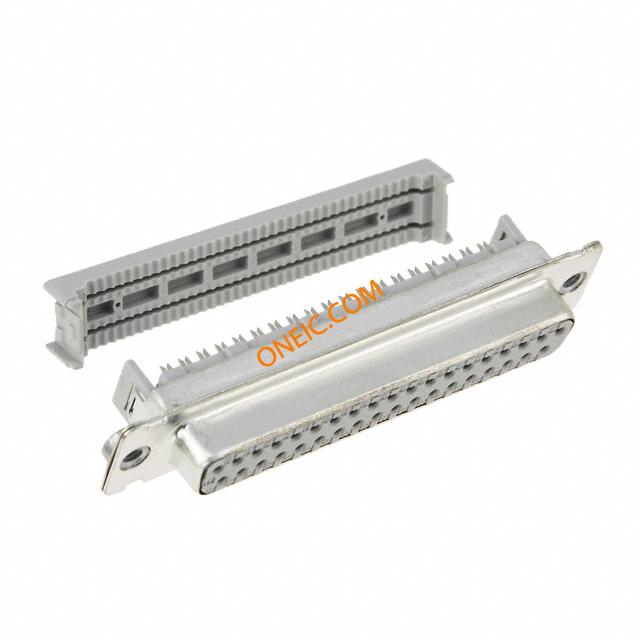

8337-8003
| Manufacturer | |
| Description | D-Sub Standard Connectors 37POS IDT RA CAB MNT D-SUBMINI SKT CONN D-SUB RCPT 37POS IDC GOLD |
| Category |
商业参数
| 零件号别名 | 04671905690 DE610012929 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 200 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 1A | ||
机械参数
| 颜色 | Gray | 重量 | 4.550 lbs |
| 包装方式 | Bulk | 端接方式 | IDC, Ribbon Cable |
| 触头类型 | Signal | 安装类型 | Panel Mount |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (4-40) | 安装样式 | Panel |
| 排数 | 2 | 连接器样式 | D-Sub |
| 壳体材料 | Polyester, Glass Filled | 端接样式 | IDC |
| 位数 | 37 | 外壳材料及表面处理 | Steel, Tin Plated |
| 接触镀层厚度 | 30µin (0.76µm) | 外壳尺寸，连接器布局 | 4 (DC, C) |
产品信息
| 系列 | 8300 | 产品特性 | Feed Through |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
