89144-0101
| Manufacturer | |
| Description | ヘッダ & ワイヤハウジング 44P IDC SOCKET .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable CONN SOCKET 44POS IDC DL POL Headers & Wire Housings 44P IDC SOCKET WIRE TO BOARD, RECEPTACLE, 44POS, 2.54MM Socket;GlassFilledPolyester;CopperAlloy;Nickel(Underplating);1A;Gray |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 05400754496 80610706808 | Product Category | Headers & Wire Housings |
| Standard Package | 500 | Factory Pack Quantity | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
| RoHS Compliance | Yes | ||
Mechanical
| Color | Gray | Pitch | 0.100" (2.54mm) |
| Weight | 8 lbs | Packaging | Bulk |
| Wire Type | Ribbon Cable | Wire Gauge | 26-28 AWG |
| Row Spacing | 0.100" (2.54mm) | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Gold | Number of Rows | 2 |
| Contact Material | :Phosphor Bronze | Cable Termination | IDC |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 44 |
| Contact Termination | :IDC / IDT | Number of Positions | 44 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Gender | :Receptacle | Series | 891 |
| Features | Feed Through, Polarizing Key | Product Type | Receptacles / Sockets - Housings |
Documents & Media
Online Document
Online Document
Similar Parts
3490-89140
3m interconnect solutions
Connector Accessories Pull Tab Polyester 40-60 POS Roll Pull Tabs, 1000 per roll PULL TAB 40-60POSITION 891SERIES Pull Tab; Socket; Wiremount; 40 to 60; 0.050 in.; 1.25 in. Headers & Wire Housings SOCKET PULL TAB PREASSEMBLED SOCKET PULL TAB PullTab,Socket;Wiremount;40to60;0.050in.;1.25in.
$2.7608
Details

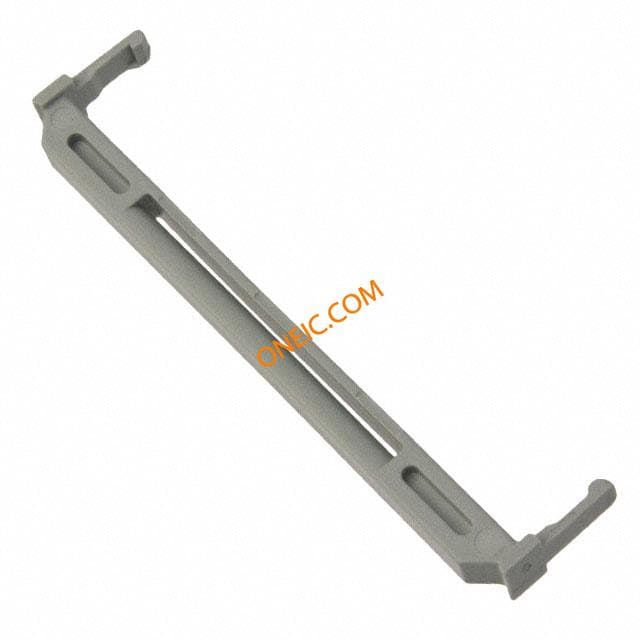

3448-89144
3m interconnect solutions
Connector Accessories Wire Mount Socket Strain Relief 44 POS Polyester Gray .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable STRAIN RELIEF 44 POS IDC SOCKET Headers & Wire Housings STRAIN RELIEF FOR 44P CNCTR StrainRelieffor44posIDCRibbonCableSocket,.1"x.1",.05"Pitch
$2.7491
Details
