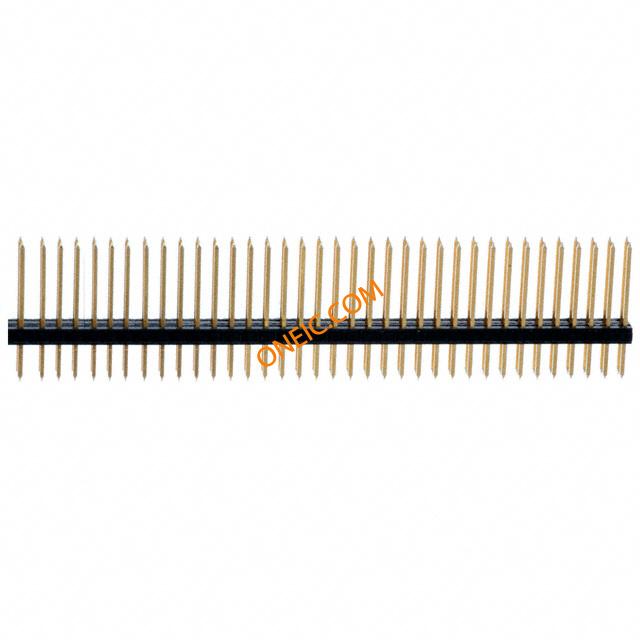

929665-04-36-I
| Manufacturer | |
| Description | ヘッダ & ワイヤハウジング 72P STRT 2 ROW GOLD .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER .100 DUAL STR 72POS Header; Pin Strip; 36; Flange; 4-40; Copper Alloy; 2.5 A; Black Insulation Headers & Wire Housings 72P STRT 2 ROW GOLD Header;PinStrip;36;.100#,.235#MatingL,Straight,sldrtail,goldpltg,dualrow |
| Category |
Business
| Part # Aliases | 05400780816 80620023376 | Product Category | Headers & Wire Housings |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Approval Agency | cUL,UL |
| RoHS Compliance | Yes | Material Flammability Rating | UL94V-0 |
Electrical
| Voltage Rating | 1.5 kV | Current Rating (Max) | 2.5 A |
| Insulation Resistance | >5x109Ohms@500VDC | ||
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Packaging | Bulk | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Thread Size | 4-40 |
| Contact Type | Male Pin | Length - Pin | 0.235" |
| Length - Tail | 0.51in. | Mounting Type | Through Hole |
| Angle of Throw | Straight | Connector Type | Header, Unshrouded |
| Contact Finish | Gold | Mounting Style | Flange |
| Number of Rows | 2 | Terminal Style | PrintedCircuitBoard |
| Contact Material | Copper Alloy | Housing Material | GlassFilledPolyester |
| Length - Overall | 3.6" | Primary Material | PinStrip |
| Pin Hole Diameter | 0.1" | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 72 | Dielectric Diameter | 1500V(RMS) |
| Number of Positions | 72 | Material - Insulation | GlassFilledPolyester |
| Contact Length - Mating | 0.235" (5.97mm) | Contact Finish Thickness | 10µin (0.25µm) |
Product Info
| Type | Pin Strip | Series | 929 |
| Features | Stackable | Manufacturer | 929Series |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -40to+105°C | ||
