929836-01-36

点击放大查看

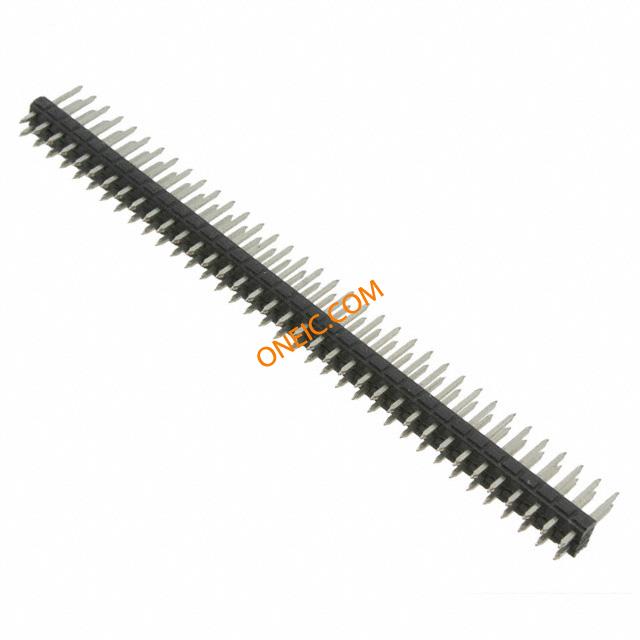

929836-01-36

Manufacturer
3M Company
Description
Headers & Wire Housings 72P STRT 2 ROW TIN .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER 72POS DL .100" TI Conn Unshrouded Header HDR 72 POS 2.54mm Solder ST Thru-Hole Header;PinStrip;36;.100#,.235#MatL,Straight,sldrtail,tinleadpltg,dualrow
Category
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名05400783248 80620071367产品类别Headers & Wire Housings
标准包装数量100工厂包装数量100

合规参数

RoHSVendor undefined / RoHS non-compliant认证机构cUL,UL
RoHS合规（认证）No材料阻燃等级UL94V-0

电气参数

额定电压1.5 kV最大额定电流2.5 A
绝缘电阻>5x109Ohms@500VDC

机械参数

颜色Black间距0.100" (2.54mm)
重量1 lb包装方式Bulk
排间距0.100" (2.54mm)端接方式Solder
螺纹尺寸4-40触头类型Male Pin
引脚长度（针脚）0.235"尾部长度0.11in.
安装类型Through Hole行程角度Straight
连接器类型Header, Unshrouded接触镀层Tin-Lead
安装样式Flange排数2
端子样式PrintedCircuitBoard触头材料Copper Alloy
壳体材料GlassFilledPolyester总长度3.6"
主要材料PinStrip插针孔直径0.1"
端接样式Through Hole第一触头极性Pin (Male)
触点数72绝缘直径1500V(RMS)
位数72绝缘材料 - 材质GlassFilledPolyester
接触长度 - 配合0.235" (5.97mm)接触镀层厚度100µin (2.54µm)

产品信息

类型Pin Strip系列929
产品特性Stackable制造商全称929Series
产品子类型Headers加载位置数All

环境参数

工作温度-40to+105°C

Documents & Media

PDF Document
929 Series, Pin Strip Header, Single/Dual Row
Online Document
mediawebserver?mwsId=66666UuZjcFSLXTtmXME5x46EVuQEcuZgVs6EVs6E666666--
