929836-03-20-RK
| Manufacturer | |
| Description | Headers & Wire Housings .100 STR 20 PIN .235-.410 .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER .100 DUAL STR 40POS |
| Category |
Business
| Other Names | 929836E-03-20 | Part # Aliases | 07630805233 80001331620 |
| Product Category | Headers & Wire Housings | Standard Package | 1 |
Compliance
| RoHS | No | ||
Electrical
| Voltage Rating | 1.5 kV | Current Rating (Max) | 2.5 A |
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Packaging | Bulk | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded |
| Contact Finish | Tin | Number of Rows | 2 |
| Contact Material | Copper Alloy | 1st Contact Gender | Pin (Male) |
| Number of Positions | 40 | Contact Length - Mating | 0.235" (5.97mm) |
| Contact Finish Thickness | 200µin (5.08µm) | ||
Product Info
| Type | Pin Strip | Series | 929 |
| Product Type | Headers | Number of Positions Loaded | All |
Documents & Media
Similar Parts
CHG-2040-J01010-KEP
3M Electronic Solutions Division
Headers & Wire Housings 40P PLRZD IDC SOCKET 22 AND 24 AWG .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 40POS 24-22 AWG CONNECTOR, 2.54MM, 40WAY Conn;Rect;Socket;Wiremnt;0.1inPitch;40Pos;2Row;24-22AWG;IDC;CHGSer;Polar
929842-01-20-RB
3m interconnect solutions
Conn Socket Strip SKT 40 POS 2.54mm Solder ST Thru-Hole .100" and .100" Ã .100" Straight, Solder Tails, 1 row (3-40 contacts) or 2 row (4-80 contacts) CONN RCPT 40POS DL STR .1" GO
929852-01-20-RB
3m interconnect solutions
Conn Socket Strip SKT 40 POS 2.54mm Solder ST Thru-Hole .100" and .100" Ã .100" Straight, Solder Tails, 1 row (1-40 contacts) or 2 row (2-80 contacts) CONN RCPT 40POS DUAL .100" GOLD Headers & Wire Housings BOARDMT SKT HDR 40POS
CHG-2040-001010-KEP
3m interconnect solutions
Conn IDC Connector SKT 40 POS 2.54mm IDT ST Cable Mount .100" Ã .100" Pak 100 Wiremount, Two Row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 40POS 24-22 AWG

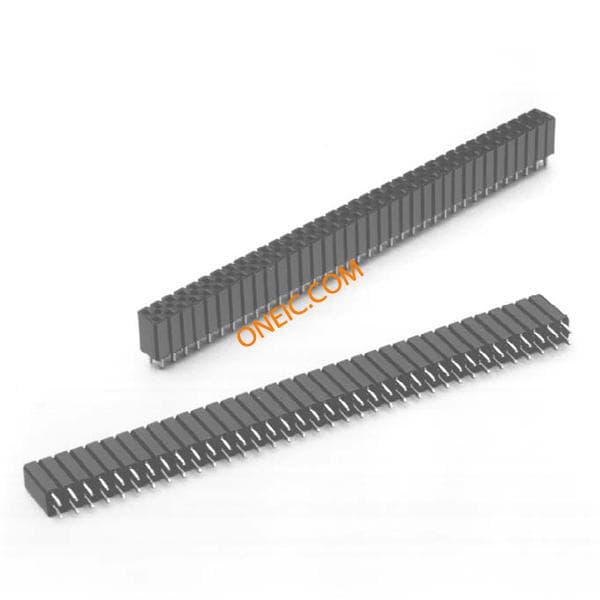

929852-01-20-RA
