点击放大查看
929838-01-36
| Manufacturer | |
| Description | Headers & Wire Housings 36x2 R/A SnPb PLTG .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER 72POS DL R/A .1" |
| Category |
Business
| Part # Aliases | 05400783617 80620076366 | Product Category | Headers & Wire Housings |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | No | RoHS Compliance | No |
Electrical
| Voltage Rating | 1500 V | Current Rating (Max) | 2.5 A |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Packaging | Bulk | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Right | Connector Type | Header, Unshrouded |
| Contact Finish | Tin | Mounting Style | Through Hole |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Termination Style | Solder Tail | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 72 | Number of Positions | 72 |
| Contact Length - Mating | 0.235" (5.97mm) | Contact Finish Thickness | 100µin (2.54µm) |
Product Info
| Series | 929 | Product Type | Headers - Pin Strip |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
929975-01-36-RK
3m interconnect solutions
Conn Socket Strip SKT 72 POS 2.54mm Solder ST Thru-Hole .100" and .100" Ã .100" Straight, Solder Tails, 1 row (1-40 contacts) or 2 row (2-80 contacts) CONN RECEPT .100 DUAL STR 72POS Headers & Wire Housings 72P 2ROW STRT SOCKET SOCKET HEADER, 72POS, 2ROW, 2.54MM Socket;Boardmount;Straight;SolderTail;36;Tin-LeadPlating;DualRow 3M 929 系列 2行 72路 直 2.54mm节距 通孔 印刷电路板插座, 板安装
929852-01-36-RA
3m interconnect solutions
Conn Socket Strip SKT 72 POS 2.54mm Solder ST Thru-Hole .100" and .100" Ã .100" Straight, Solder Tails, 1 row (1-40 contacts) or 2 row (2-80 contacts) CONN RECEPT .100 DUAL STR 72POS Headers & Wire Housings 72P STRT BRD MNT SKT 2 ROW 10MICRO AU

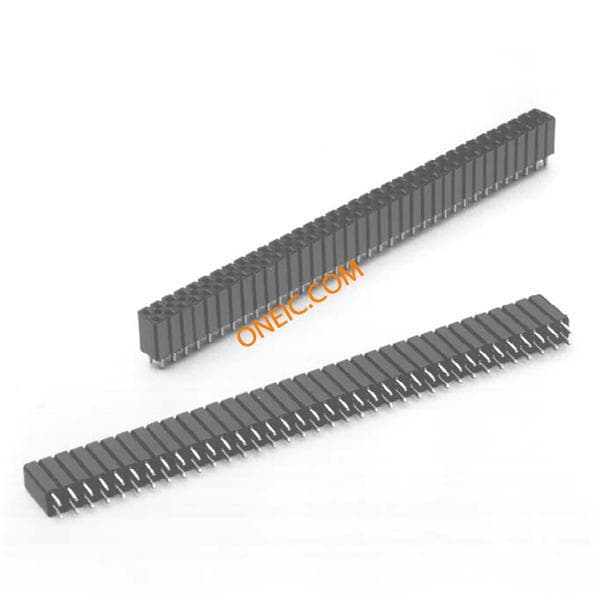

929852-01-36-RB
