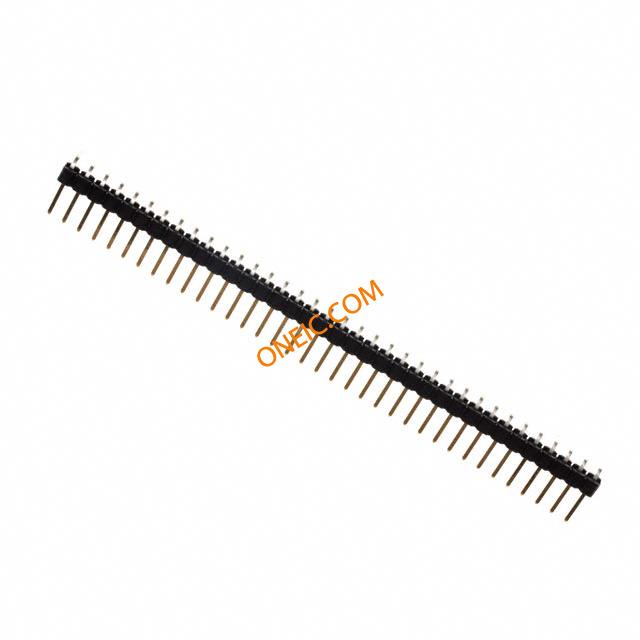

961136-5604-AR
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 04671918206 DE500043497 | Product Category | Headers & Wire Housings |
| Standard Package | 450 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 1 kV | Current Rating (Max) | 2 A |
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Packaging | Bulk | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Unshrouded | Contact Finish | Gold |
| Number of Rows | 1 | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 36 | Number of Positions | 36 |
| Contact Length - Mating | 0.240" (6.10mm) | Contact Finish Thickness | Flash |
Product Info
| Type | Pin Strip | Series | 961 |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Operating Temperature | - 25 C to + 105 C | ||
Documents & Media
Sourcing & traceability
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
