点击放大查看

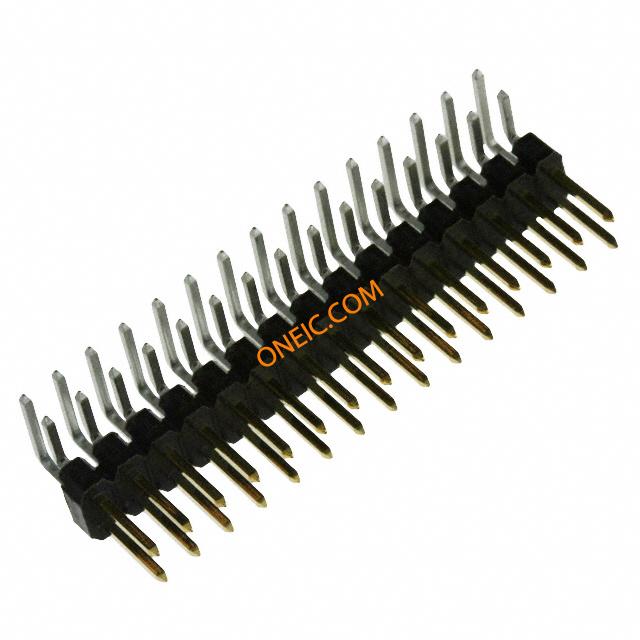

961230-5604-AR
| Manufacturer | |
| Description | Headers & Wire Housings 30P RA 2 ROW GOLD 6.1MM MATING PIN 2.54 mm and 2.54 mm x 2.54 mm, Right Angle, Solder Tail CONN HEADER R/A DUAL 30POS GOLD |
| Category |
商业参数
| 零件号别名 | 05111994815 DE500043638 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 2 A | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 30 | 位数 | 30 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 接触镀层厚度 | Flash |
产品信息
| 类型 | Pin Strip | 系列 | 961 |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | - 25 C to + 105 C | ||
